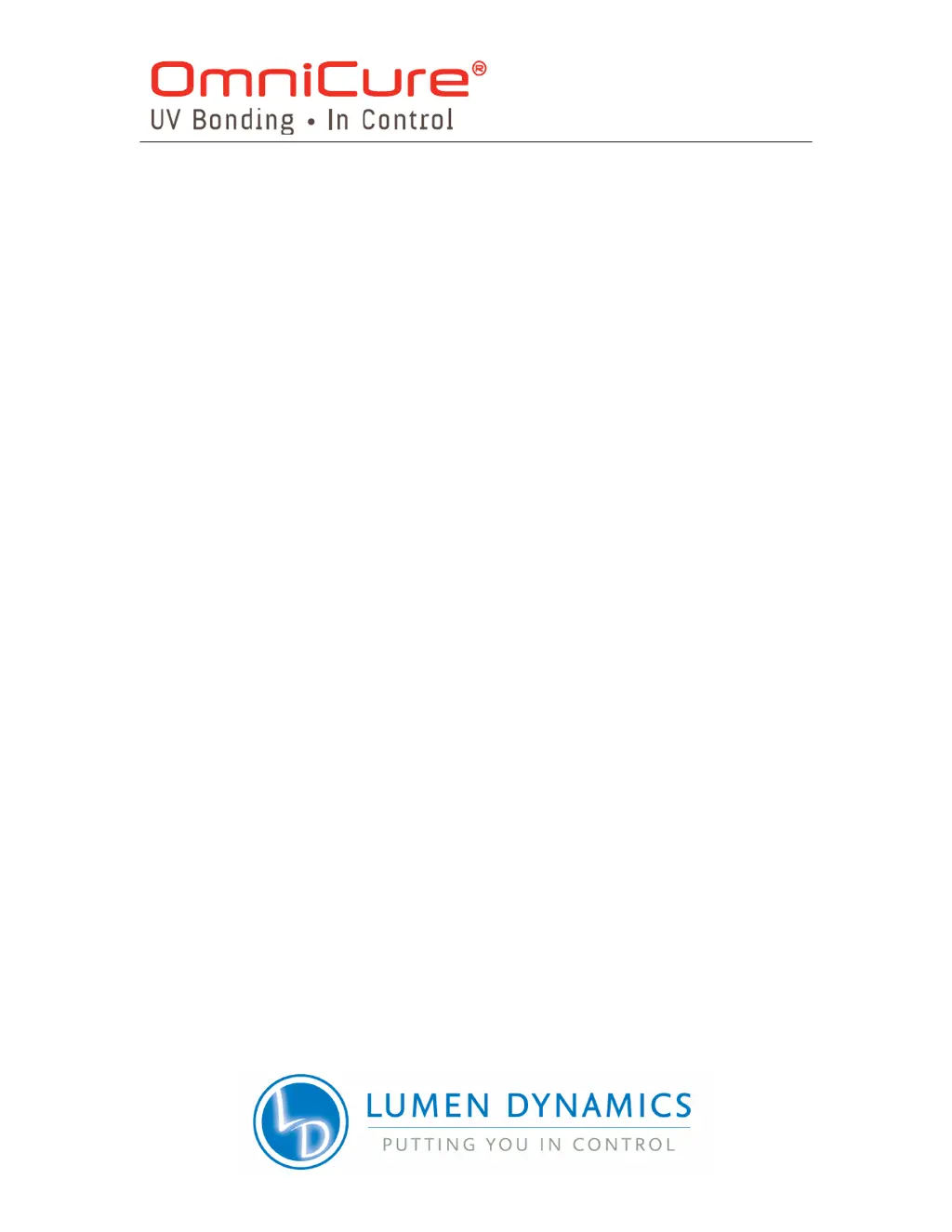

Lumen Dynamics Group OmniCure S1500

Other manuals for Lumen Dynamics Group OmniCure S1500

Quick Start Guide2 pages

Questions and Answers

T
thompsoncynthiaAug 8, 2025
What to do if light intensity is too low on Lumen Dynamics Group OmniCure S1500?
- J
  James MuellerAug 8, 2025
  If the light intensity is too low, make sure the percent iris opening is set high enough by putting the unit into Level Mode and pressing the up button to increase the iris opening. Also, check that there are no foreign substances on the emitting end of the light guide and that there are no bends, kinks, or other physical damage to the guide (replace the light guide if damaged). Finally, ensure the lamp has been installed correctly.
T
Tammie RodriguezAug 12, 2025
What to do if the LED display does not light on Lumen Dynamics Group Industrial Equipment?
- G
  Grant WallaceAug 12, 2025
  If the LED display doesn't light up, power down the unit, wait about 20 seconds, and then power it up again.
B
Brian RodriguezAug 18, 2025
What to do if one or more fans do not work on Lumen Dynamics Group OmniCure S1500?
- F
  Felicia TorresAug 18, 2025
  If one or more fans aren't working, power down the unit, wait approximately 20 seconds, and then power it up again.
E
Elizabeth PageAug 23, 2025
What to do if the shutter has failed on Lumen Dynamics Group OmniCure S1500 Industrial Equipment?
- D
  Dana MoralesAug 23, 2025
  If the shutter has failed, power down the unit, wait a few minutes, and then turn the power back on.
H
harrismicheleAug 27, 2025
Why is the lamp too hot to strike on Lumen Dynamics Group OmniCure S1500 Industrial Equipment?
- J
  Jennifer ClarkAug 28, 2025
  The lamp will automatically strike when it has cooled.
B
Brandon WarrenSep 1, 2025
How to fix a lamp that did not strike on Lumen Dynamics Group Industrial Equipment?
- C
  carpenteranthonySep 1, 2025
  First, check if the lamp has been installed correctly. If it still does not strike, replace the lamp.

Summary

Getting Started

Front Panel Overview

Describes the front panel components and their functions.

Safety Precautions

Danger and High Voltage Warnings

Operational Safety Precautions

Installing the Lamp Module

Preparation and Panel Removal

Steps for disconnecting power and removing the housing panel.

Light Guide Installation and Removal

Inserting the Light Guide

Steps for inserting the light guide and checking status indicators.

Powering Up and Down

Lamp Warm-Up Procedure

Explains the lamp warm-up phases and recommendations.

Adjusting Light Output

Iris Adjustment Process

How to adjust light intensity using the iris mechanism.

Locking and Unlocking Controls

Locking the Adjustment Buttons

Procedure to disable UP/DOWN buttons for process control.

Timed Exposures

Adjusting Exposure Time

How to set the exposure duration.

Interfacing with the S1500

Connection Options Overview

Input;Output Signals and Descriptions

Output Signals Description

Messages and Indicators

Display Messages (XXXX., XXX.X, XXX)

Bulb Status Messages (bulb, old;bulb)

Remote Automated Control

Communication Protocol Requirements

Com Port Configuration

Command Descriptions

Lamp and Exposure Commands

Iris and Status Commands

Routine Care and Maintenance

General Care Instructions

Replacing the Lamp Module

Procedure for replacing the lamp module.

Troubleshooting

Message References and Descriptions

Explains display messages and error codes for troubleshooting.

Troubleshooting Power and Lamp Issues

Troubleshooting Shutter and Intensity

Technical Specifications

Lamp Module Specifications

Warranty Information

General Warranty Terms

Warranty Exclusions and Limitations

Replacement Bulb Warranty

Lumen Dynamics Group OmniCure S1500 Specifications

General

Wavelength	320 - 500 nm
Light Delivery	Liquid light guide
Irradiance Control	0 to 100% in 1% increments
Cooling System	Forced Air
Intensity Control	0 to 100% in 1% increments
Lamp Type	Mercury arc lamp
