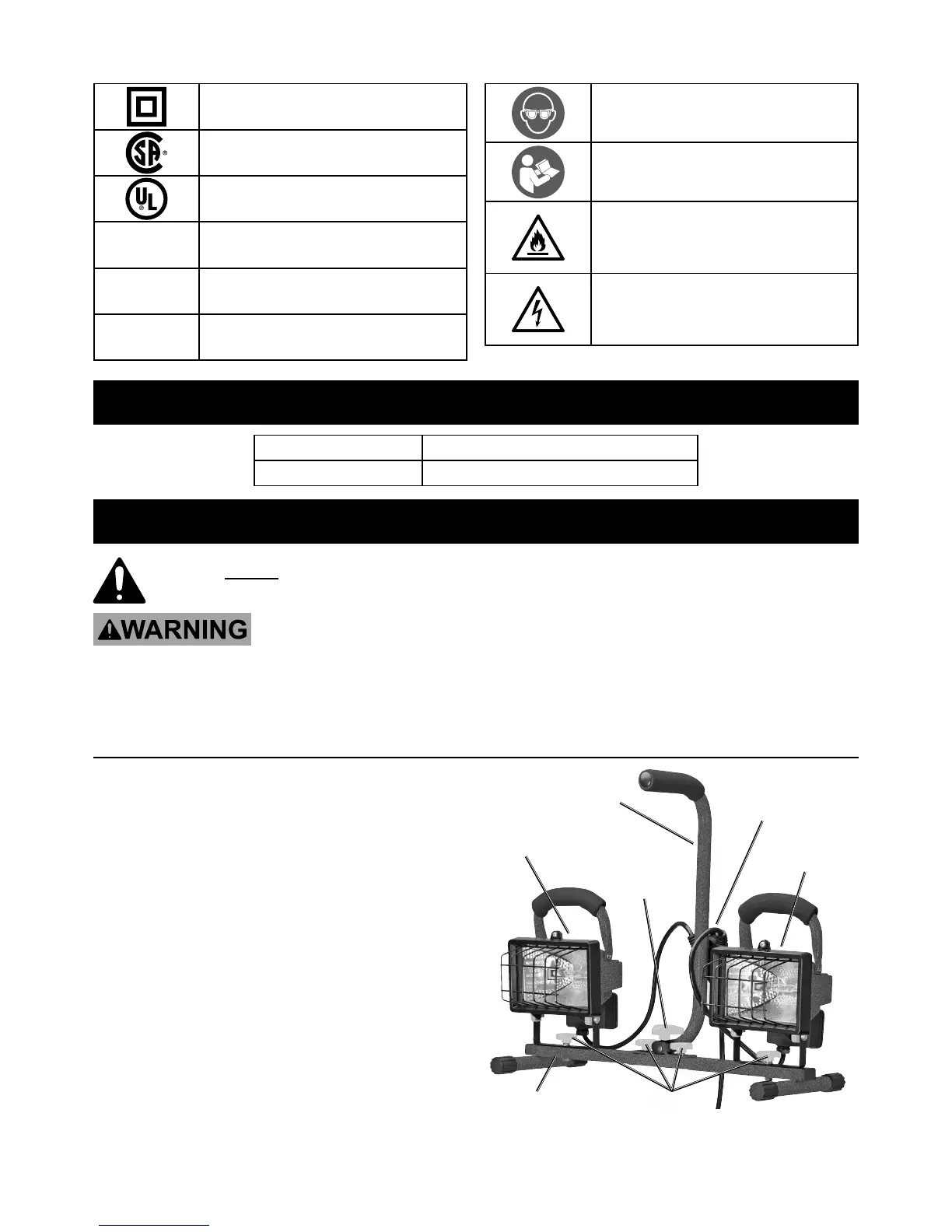

Luminar 62565 - Symbology; Double Insulated Symbol; Canadian Standards Association Symbol; Underwriters Laboratories Inc. Symbol

Page 5For technical questions, please call 1-888-866-5797.Item 62565
Symbology
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
V
Volts
~
Alternating Current
A
Amperes
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keepammableobjectsaway.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
Specifications
Electrical Rating 120 VAC / 500 W
Bulb Two 250 W / 120 VAC Halogen (included)
Set Up Instructions
Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this
manual, including all text under subheadings therein before setup or use of this product.
Risk of accidental starting; resulting in serious personal injury. Turn the Power Switch of the Light
OFF and unplug it from the electrical outlet before assembling or making any adjustments.
Deviation from the assembly instructions may result in a risk of fire or electric shock.
Head Assembly
1. Locate the Portable Stand. Remove the four
Screw Knobs from the bottom of the Stand.
Place the Portable Stand on a flat surface.
2. Carefully, position the twin Lamp Heads with Center
Handle assembly next to the Stand. Attach the
Center Handle facing the front of the Stand
using two Screw Knobs. Refer to Figure A.
3. Each Lamp Head has an attached U-shaped bracket
with a hole that lines up with the holes on the
Stand. Lamp Heads should face forward. Thread
the Screw Knob through the top of the bracket and
into the hole on the top of the Portable Stand.
4. Attach the Y-Cord to the back of the Center
Handle using the Screw Knob on the Handle.
Knobs
Center Handle
Lamp Head
Lamp Head
Portable Stand
Stand
Attachment
Knob
Y-Cord
Figure A
