Installation: Concrete Pad Installation: Ground Stake

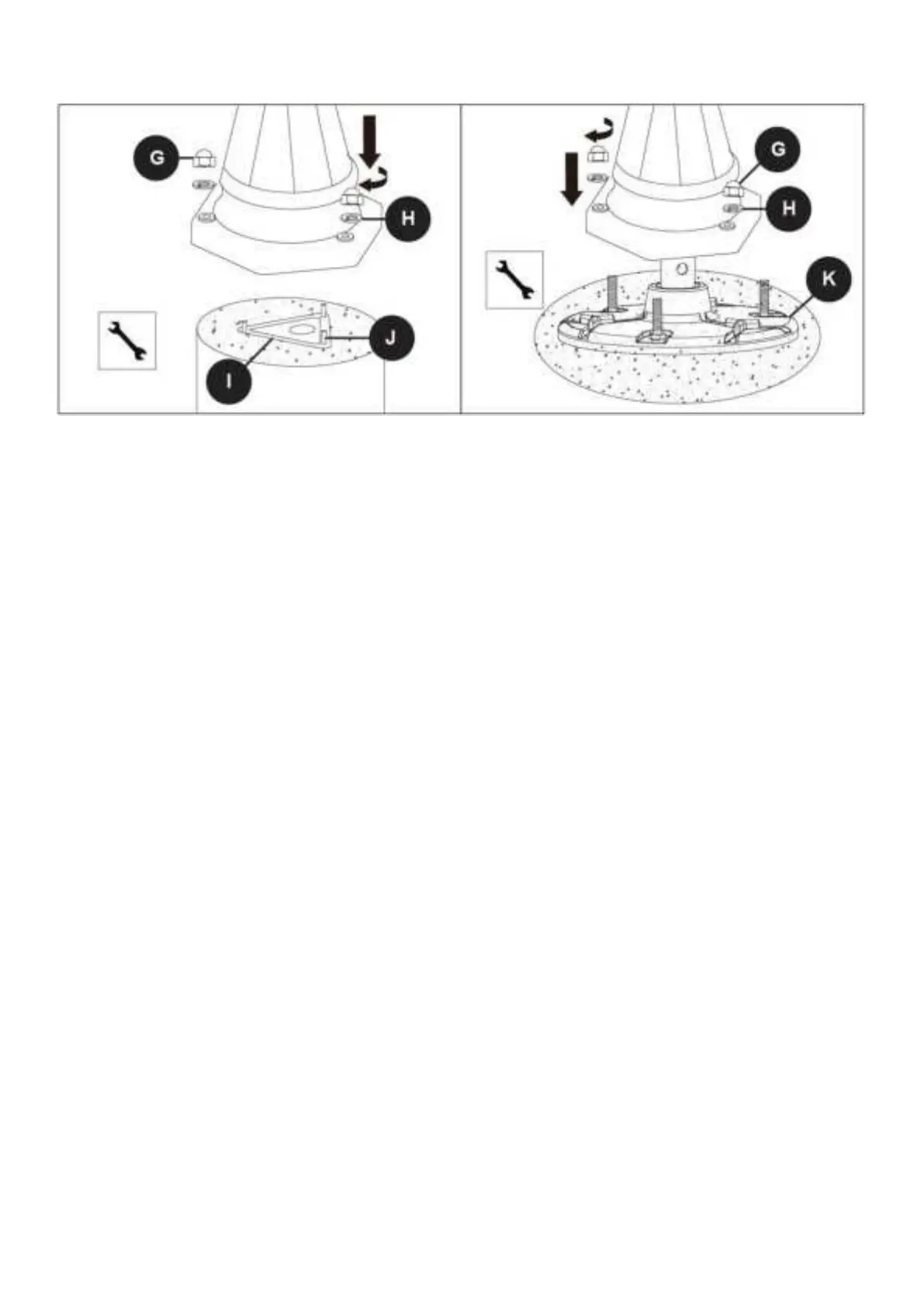

With the help of another person to hold the pole
steady, place the pole assembly over Concrete
Mounting Bracket (I) and Anchor Bolt (J). Place
Washer (H) over Anchor Bolt (J) and secure with
Cap Nut (G). Tighten with a 1/2 inch
wrench (not included).
Tighten with a 1/2 inch wrench (not included).
CAUTION: Allow the concrete to dry before
installing the pole assembly.
With the help of another person to hold the pole
steady, place the pole assembly over Ground
Base Insert (K). Place Washer (H) over Anchor
Bolt (J) and secure with Cap Nut (G).
