Lutron Electronics Maestro MS-OPS2 1 Series - Wiring Diagram 8: 3-Way Installation (120 V); Wiring Diagram 8: 3-Way (120 V) with Neutral; Wiring Diagram 8: 3-Way (120 V) without Neutral

Maestro Sensor
369666f 17 09.05.19
®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy / Vacancy Sensor
3-way Installation with Standard Mechanical Switch (120 V~)
3, 4
-OPS6M2U-DV, -VPS6M2U-DV

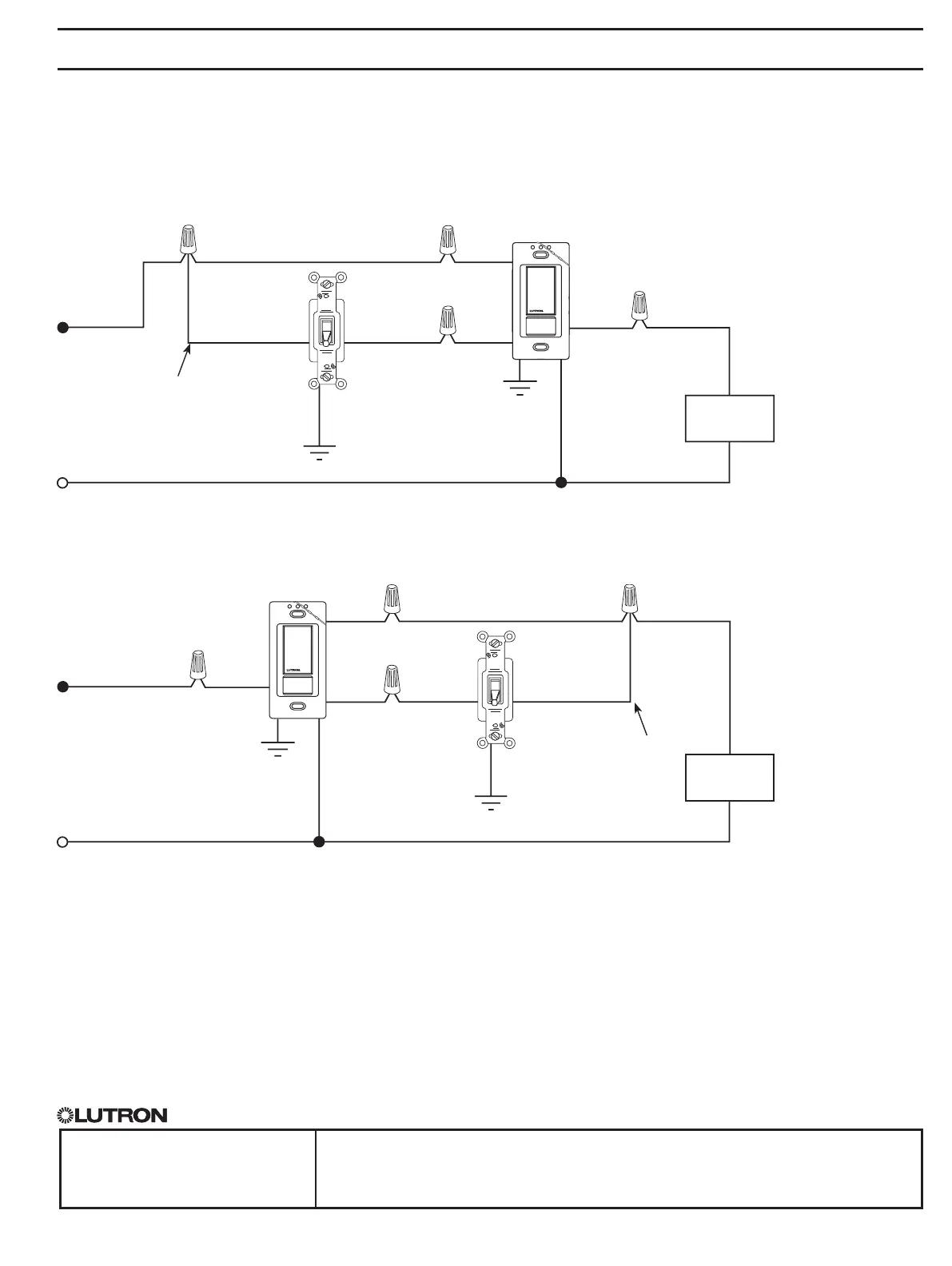

Wiring Diagram 8 - with Neutral
OR
Black
Blue
Ground
Occupancy
sensor switch
White-sleeved
wire
Ground
120 V~
50 / 60 Hz
Hot / Live
Neutral
Load
Standard
mechanical switch
Black
Jumper wire
Bare
Different color
screw (Common)
Green
screw
Black
Blue
White-sleeved wire
Ground
Occupancy
sensor switch
Ground
120 V~
50 / 60 Hz
Hot / Live
Neutral
Load
Standard
mechanical switch
Black
Jumper wire
Bare
Different color
screw (Common)
Green
screw
Wiring Diagrams (continued)
Note: When a neutral connection is available, connect the white-sleeved wire to neutral.
1
When using controls in single location installations, tighten the blue terminal or cap blue wire. Do NOT connect the blue terminal / wire to any other
wire or to ground.
2
Fan load applies to 120 V~ only (not for 277 V~).
3
Only one occupancy sensor switch can be used per multi-location circuit.
4
A single standard mechanical 3-way switch or up to 9 companion switches may be connected to most occupancy sensor switches.
Standard mechanical 3-way switch cannot be combined with companion switch. Total blue terminal wire length may be up to 150ft (46m).
