4
Recess-mount
adapter
Recess-mount adapter
RJ45 Connector (Ethernet Jack)
0.30 in to 1.20 in
(8 mm to 30 mm)
Ceiling installation
Wall installation

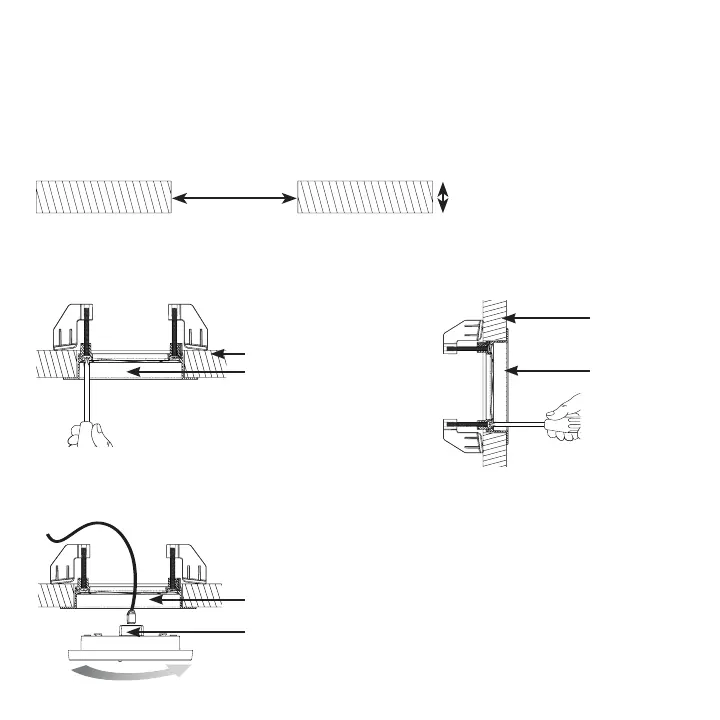

Step 4a — Installation using the Recess-Mount Adapter
Ceiling
Recess-mount
adapter
Wall
Depending on which package you have, each wireless processor comes with
various mounting adapters.
Step 2 —
Select the Mounting Adapter for your Installation
31 in to 3` in
(83 mm to 89 mm)
Step 3 — Provide Opening for Adapter
(recess-mount and junction box mount adapter ONLY)
Plug in Ethernet cable and attach processor to PoE-enabled network switch or
PoE injector
OR
To Next Page
