3. FRONT PANEL DESCRIPTION

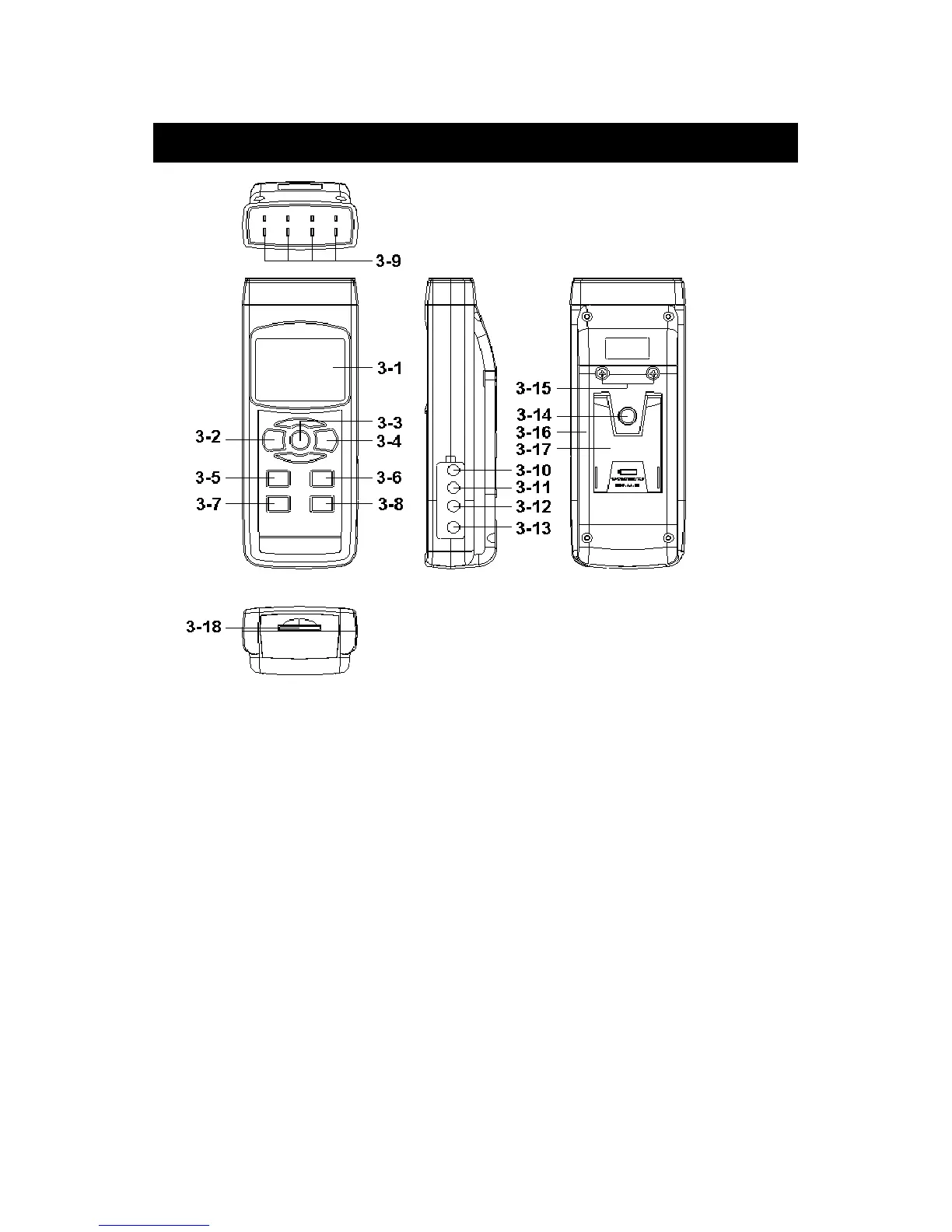

Fig. 1
3-1 Display.
3-2 Power Button ( ESC, Backlight Button )
3-3 Hold Button ( Next Button )
3-4 REC Button ( Enter Button )
3-5 Type Button ( Button, L Button )▲
3-6 T1-T2 Button ( Button, R Button )▼
3-7 SET Button ( Time check Button )
3-8 Logger Button ( OFFSET Button, Sampling time check Button)
3-9 T1,T2,T3,T4 input socket ( Type K, Type J )
3-10 PT1 input socket ( Pt 100 ohm )
3-11 PT2 input socket ( Pt 100 ohm )
3-12 RS-232 output terminal
3-13 DC 9V adapter socket
3-14 Tripod Fix Nut
3-15 Battery Cover Screws
3-16 Battery compartment/Cover
3-17 Stand
3-18 SD card socket
