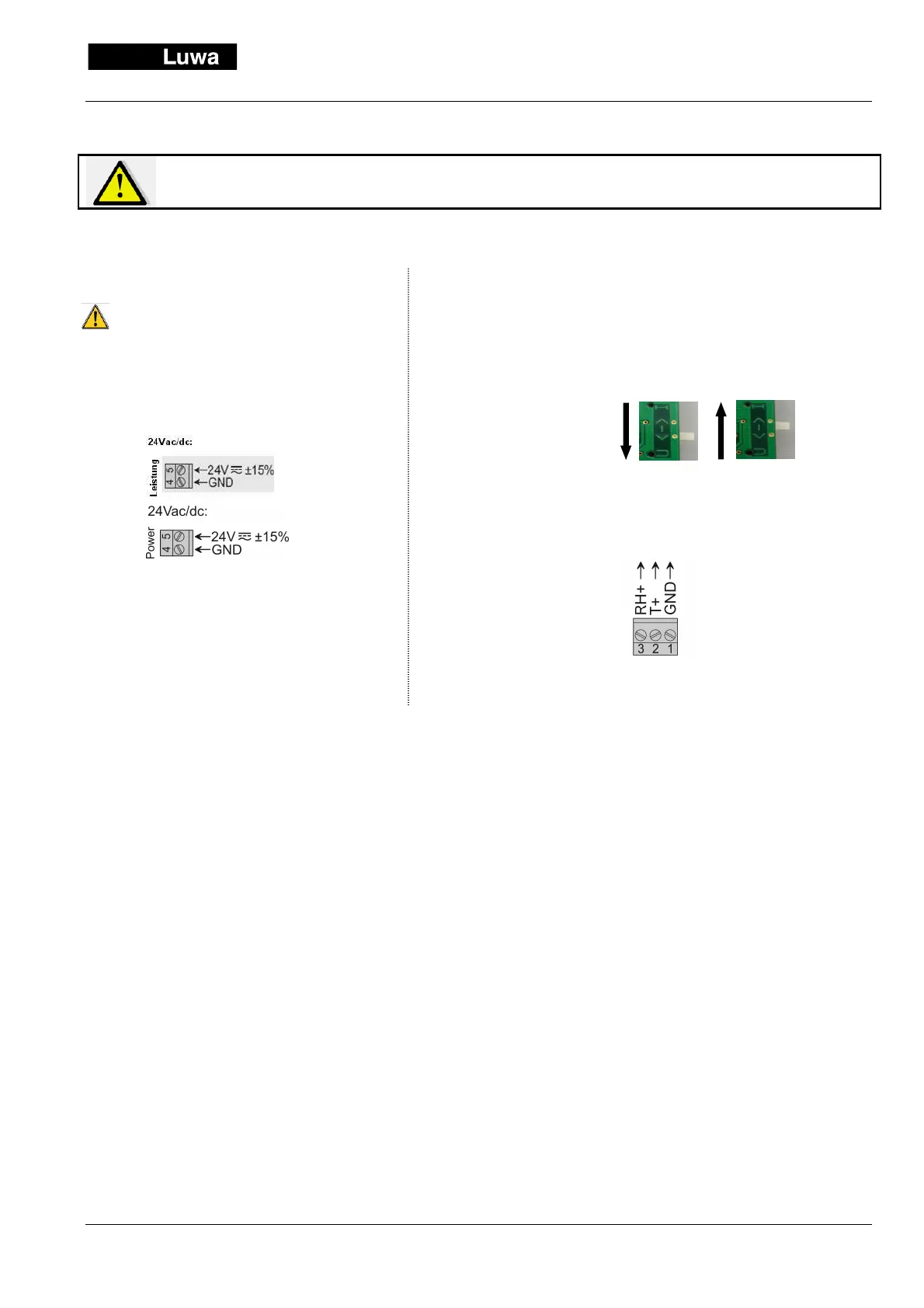

Electrical connections
This connection must be made by a qualified technician.
To make the connection, the transmitter must not be energized.
 Power suppy connection
Before making the
connection, you must first
check the power supply which is indicated on
the transmitter board
 Output signal selection
Voltage (0-10 V) or current (4-20 mA)
Select on the miniatur switch the diesred output signal.
 Connection analogue output
•
4
-
20 mA
:
Power supply terminal
block
Down
0-10 V
Up
4-20 mA
Terminal block
•
0
–
10 V:
