Set Next Hold
Fan
Auto
On
H
eat
Off
Cool
LUX

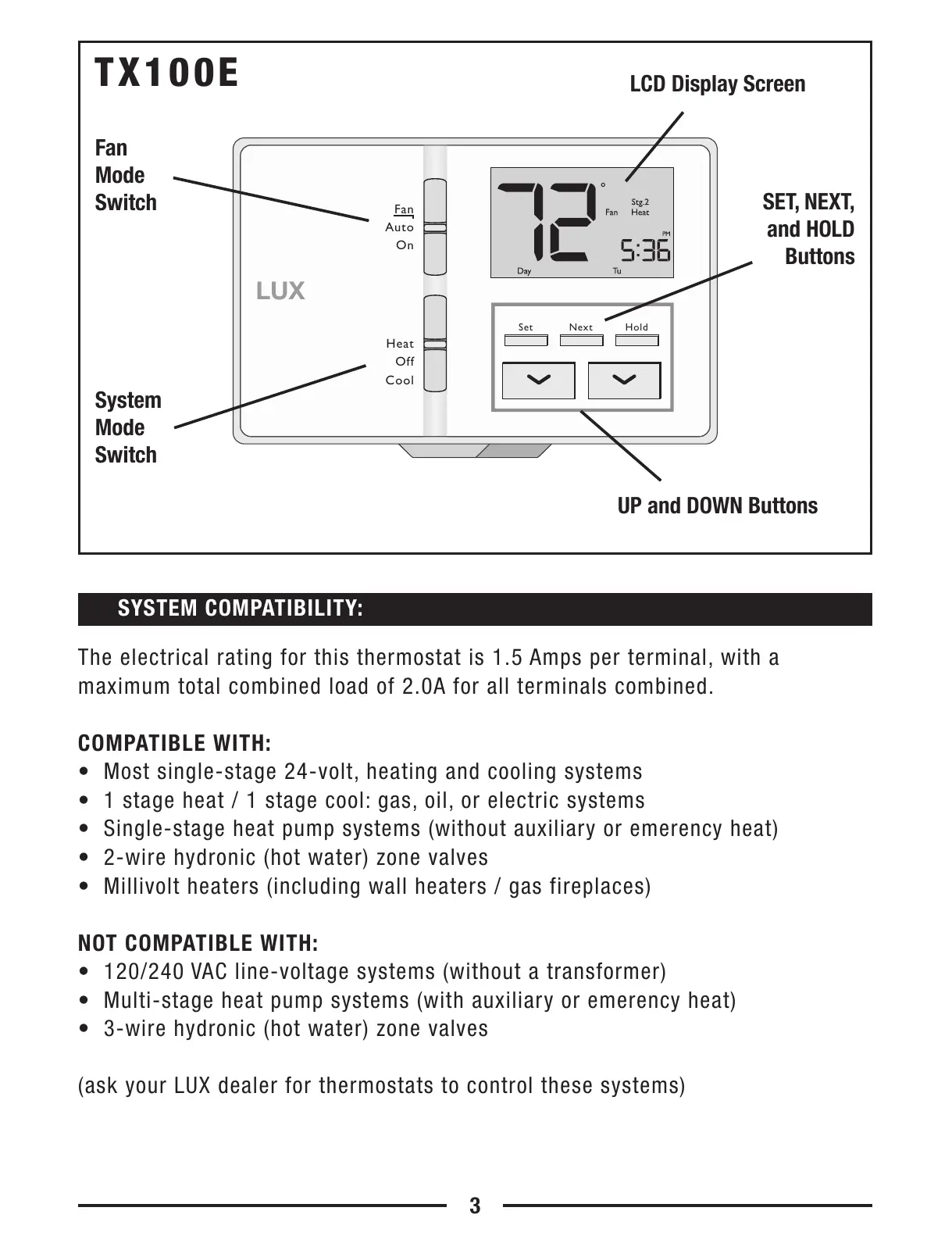

LCD Display Screen
TX100E
UP and DOWN Buttons
Fan
Mode
Switch
SET, NEXT,
and HOLD
Buttons
System
Mode
Switch
The electrical rating for this thermostat is 1.5 Amps per terminal, with a
maximum total combined load of 2.0A for all terminals combined.
COMPATIBLE WITH:
• Most single-stage 24-volt, heating and cooling systems
• 1 stage heat / 1 stage cool: gas, oil, or electric systems
• Single-stage heat pump systems (without auxiliary or emerency heat)
• 2-wire hydronic (hot water) zone valves
• Millivolt heaters (including wall heaters / gas fireplaces)
NOT COMPATIBLE WITH:
• 120/240 VAC line-voltage systems (without a transformer)
• Multi-stage heat pump systems (with auxiliary or emerency heat)
• 3-wire hydronic (hot water) zone valves
(ask your LUX dealer for thermostats to control these systems)
SYSTEM COMPATIBILITY:
3
