4.3c Installing the LUX Power Bridge on Cool Only Systems

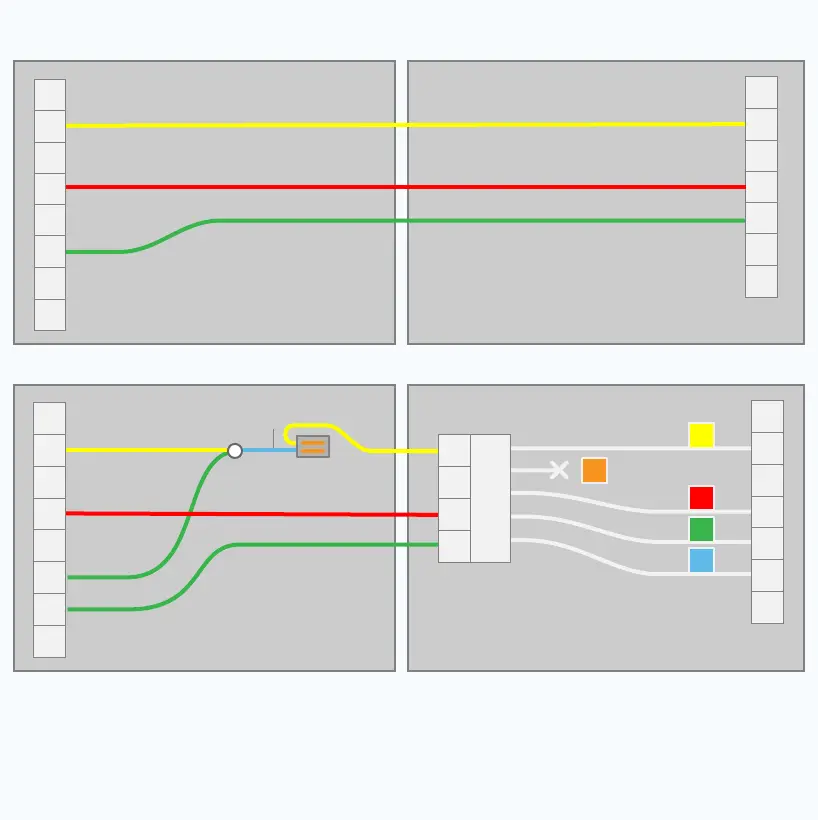

Current Wiring:
After Set Up:
 The Power Bridge’s “W” wire is not used for this system - do not connect it to your control board.
 Connect your old Y wire to the empty hole next to the blue end of the y-splitter (1). Snap the orange lever shut to
secure the wire in its place. Insert the yellow end of the y-splitter into the thermostat’s Y terminal and the green wire
into the G terminal.
 Move your old G wire to the C terminal on your thermostat.
