- 11 -
REMOTE IR
IN/OUT PUT
SATELLITE TUNER
DIGITAL
OUT
AUDIO
OUT
L
R
VIDEO
OUT
POWER AMPLIFIER
FRONT
L
R
SURR.
SURR.
BACK
DVD AUDIO PLAYER
or
SACD MULTI CHANNEL PLAYER
FRONT
L
R
SURR.
SUB
WOOFER
SURR.
BACK
SUB
WOOFER
CENTER
CENTER
ZONE II IR
INPUT

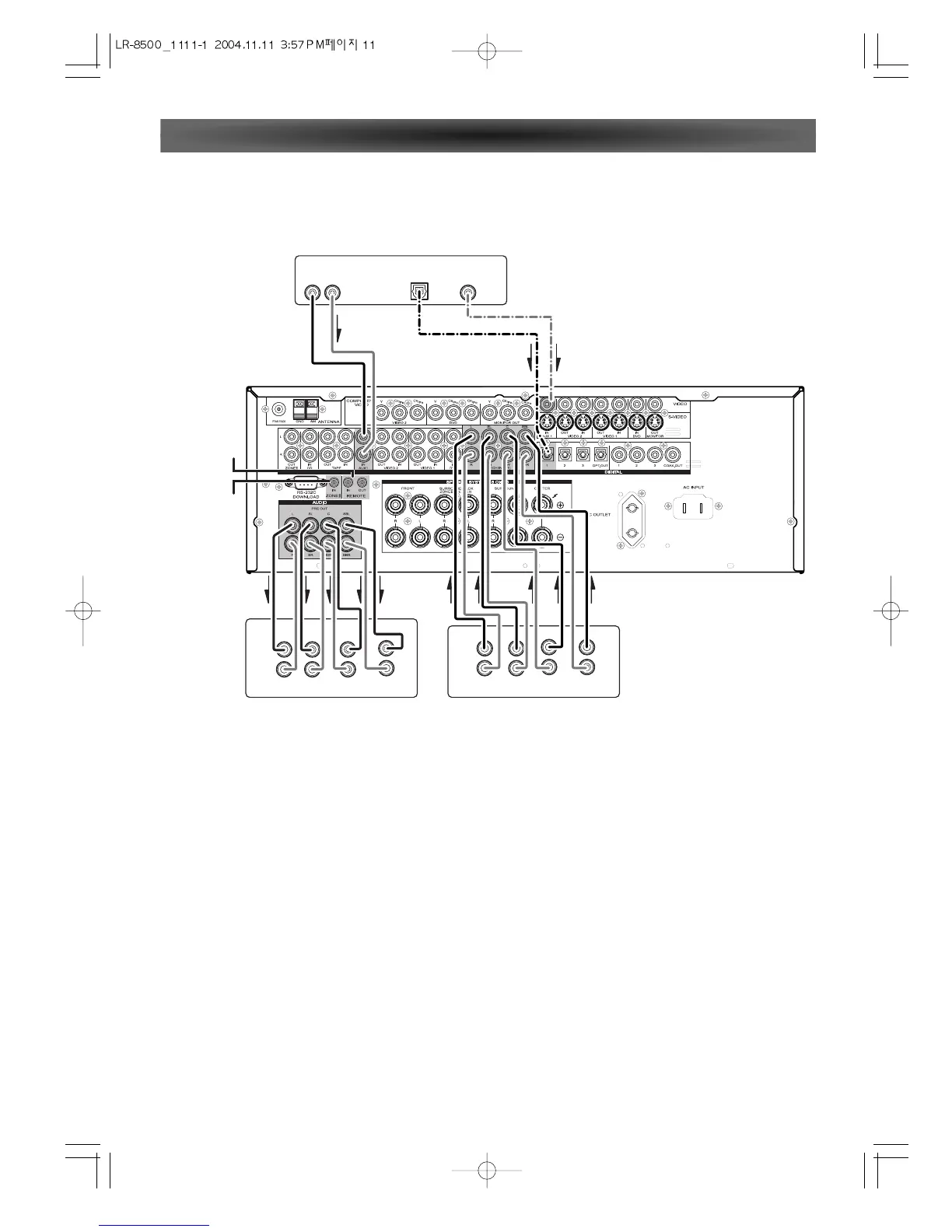

VIDEO COMPONENTS AND ADVANCED CONNECTING
CONNECTING MULTI CHANNEL AUDIO SOURCE
The 7.1 CH DIRECT INPUT jacks are for multichannel audio
source such as a SACD multichannel player, DVD audio
player or external decoder.
If you use these jacks, switch on the 7.1 CH DIRECT INPUT
and set the 7.1 CH DIRECT INPUT level by using the 7.1
channel input level menu.
CONNECTING AN EXTERNAL POWER AMPLIFIER
The PREOUT jacks are for connecting external power
amplifiers.
Be sure to connect each speaker to the corresponding
external power amplifier.
REMOTE IR INPUT
If the LR-8500's front-panel IR sensor is blocked due to cabinet
doors or other obstructions, an external IR sensor may be
used. Connect the output of the sensor to this jack.
ZONE II IR Input
Connect the output of an IR sensor in a remote room to this
jack to operate the LR-8500's
ZONE II control system.
REMOTE IR OUTPUT
This connection permits the IR sensor in the receiver to serve
other remote controlled devices. Connect this jack to the "IR
IN" jack on LUXMAN (or other compatible) equipment.
Connections
