Luxman D-105U Service Manual

D-105U
“display adjust” indicator
POWER button
“remote sensor”
‘“‘pre-heating’’ button
Disc tray
Display
“program” button
“clear’’ button
Number buttons (0 to 10 and +10)
“‘M-Check”’ (memory check button)
“edit” button
“random’’ button
“A-Scan” (auto scan) button
STOP button (Ml)
PAUSE button (tI)
PLAY button (P)
“open/close”’ button
‘“‘A-pause”’ (auto pouse) button
“‘repeat’’ button
SKIPUP/SKIP DOWN buttons (PPI/144)
FORWARD/BACKWARD buttons (PP 44)
DISPLAY ADJUST button
“T-display”’ button
TIME FADE-OUT button
FADE-OUT button
VOLUME ‘‘up/down” buttons ([Aj[V)
‘‘phones”’ jack
SERIAL REMOTE IN/OUT jacks
DIGITAL OUTPUT (COAX.) jack
DIGITAL OUTPUT (OPT.) jack
VARIABLE OUTPUT R/L jack
FIXED OUTPUT R/L jack
Power cord
PROGRAM: Cl
OOGSVOOHSOoOHNOE
cay
=
FADE|OU
FADER |

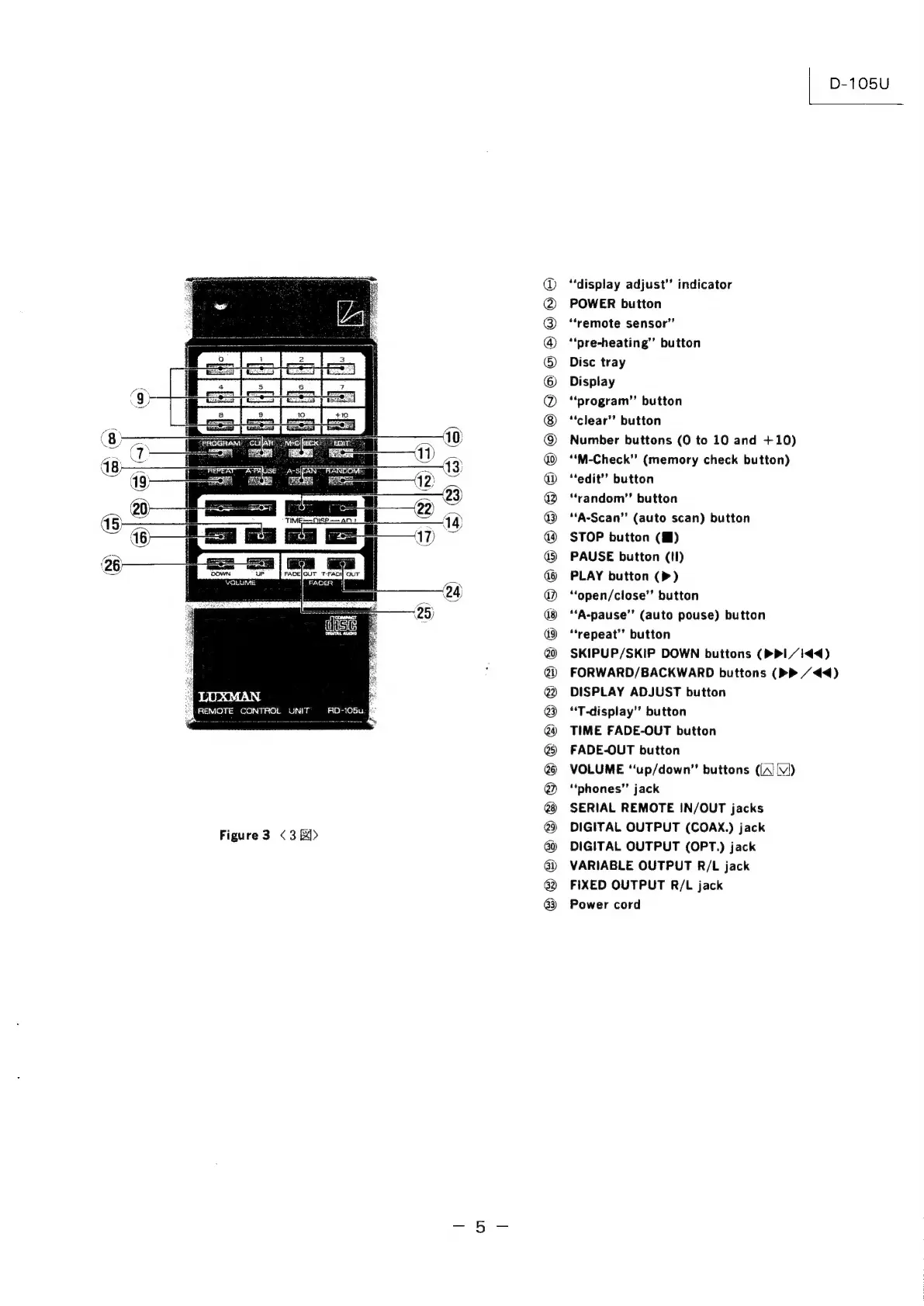

Ba REMOTE CONTROL UNIT RD-105u.
Figure 3 <3 >
@S@QOOSSOSSSOSHSSOGSOVOGOOSO
