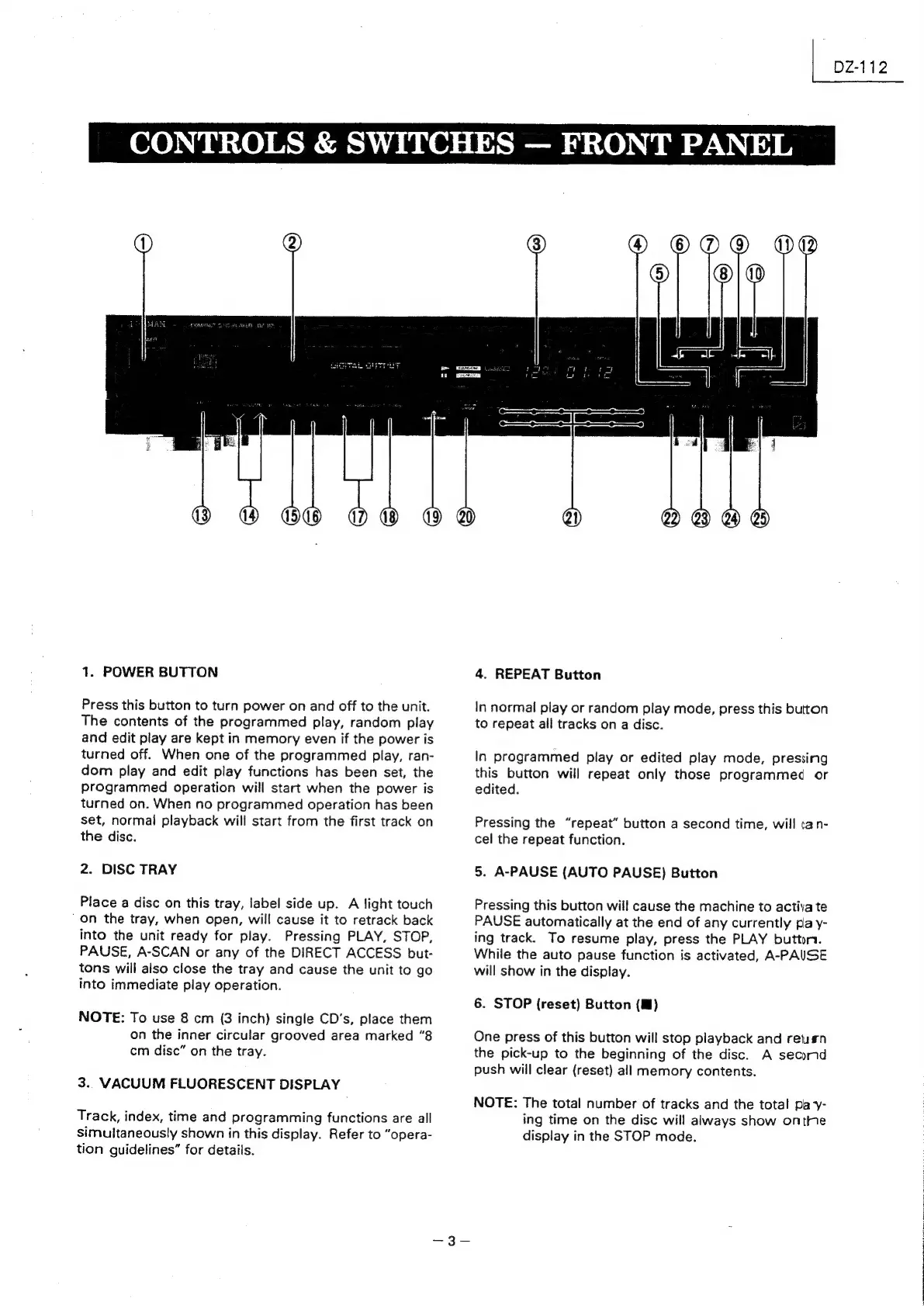

CONTROLS

&

SWITCHES

—

FRONT

PANEL

DZ-112

1.

POWER

BUTTON

Press

this

button

to

turn

power

on

and

off

to

the

unit.

The

contents

of

the

programmed

play,

random

play

and

edit

play

are

kept

in

memory

even

if

the

power

is

turned

off.

When

one

of

the

programmed

play,

ran-

dom

play

and

edit

play

functions

has

been

set,

the

programmed

operation

will

start

when

the

power

is

turned

on.

When

no

programmed

operation

has

been

set,

normal

playback

will

start

from

the

first

track

on

the

disc.

2.

DISC

TRAY

Place

a

disc

on

this

tray,

label

side

up.

A

light

touch

“on

the

tray,

when

open,

will

cause

it

to

retrack

back

into

the

unit

ready

for

play.

Pressing

PLAY,

STOP,

PAUSE,

A-SCAN

or

any

of

the

DIRECT

ACCESS

but-

tons

will

also

close

the

tray

and

cause

the

unit

to

go

into

immediate

play

operation.

NOTE:

To

use

8

cm

(3

inch)

single

CD's,

place

them

on

the

inner

circular

grooved

area

marked

“8

cm

disc”

on

the

tray.

3..

VACUUM

FLUORESCENT

DISPLAY

Track,

index,

time

and

programming

functions

are

all

simultaneously

shown

in

this

display.

Refer

to

“opera-

tion

guidelines”

for

details.

4.

REPEAT

Button

In

normal

play

or

random

play

mode,

press

this

button

to

repeat

all

tracks

on

a

disc.

In

programmed

play

or

edited

play

mode,

pressing

this

button

will

repeat

only

those

programmed

or

edited.

Pressing

the

“repeat”

button

a

second

time,

will

can-

cel

the

repeat

function.

5.

A-PAUSE

(AUTO

PAUSE)

Button

Pressing

this

button

will

cause

the

machine

to

activa

te

PAUSE

automatically

at

the

end

of

any

currently

pla

y-

ing

track.

To

resume

play,

press

the

PLAY

buttor1.

While

the

auto

pause

function

is

activated,

A-PAUSE

will

show

in

the

display.

6.

STOP

(reset)

Button

(Ml)

One

press

of

this

button

will

stop

playback

and

retuusn

the

pick-up

to

the

beginning

of

the

disc.

A

secomd

push

will

clear

(reset)

all

memory

contents.

NOTE:

The

total

number

of

tracks

and

the

total

pla

y-

ing

time

on

the

disc

will

always

show

onthe

display

in

the

STOP

mode.
