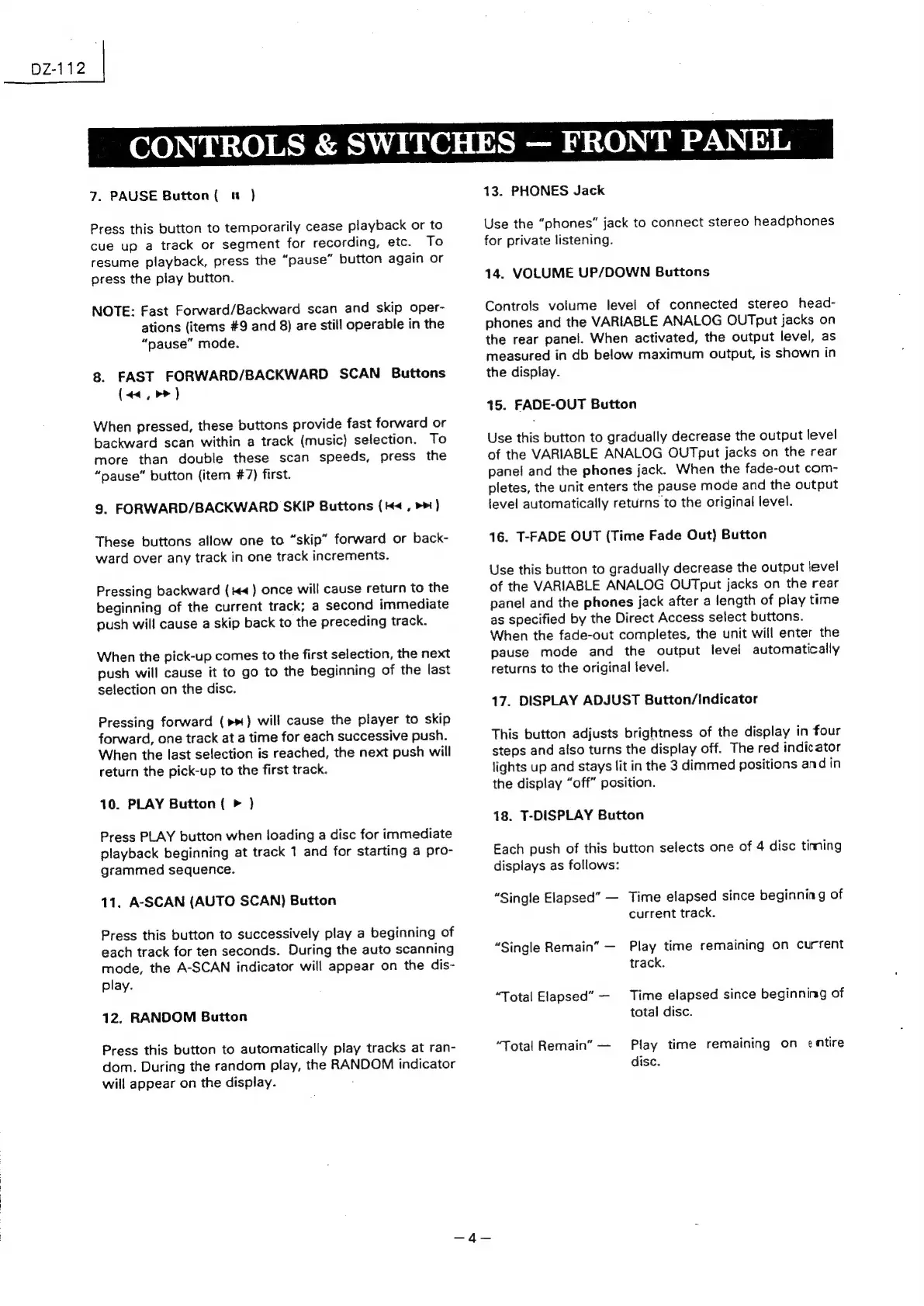

Luxman DZ-112 Service Manual

DZ-112
7. PAUSE Button ( a )
Press
this
button
to
temporarily
cease
playback
or
to
cue
up
a
track
or
segment
for
recording,
etc.
To
resume
playback,
press
the
“pause”
button
again
or
press
the
play
button.
NOTE:
Fast
Forward/Backward
scan
and
skip
oper-
ations
(items
#9
and
8)
are
still
operable
in
the
“pause”
mode.
8.
FAST
FORWARD/BACKWARD
SCAN
Buttons
(<<,
>>)
When
pressed,
these
buttons
provide
fast
forward
or
backward
scan
within
a
track
(music)
selection.
To
more
than
double
these
scan
speeds,
press
the
“pause”
button
(item
#7)
first.
9.
FORWARD/BACKWARD
SKIP
Buttons
(<
,
>>)
These
buttons
allow
one
to
“skip”
forward
or
back-
ward
over
any
track
in
one
track
increments.
Pressing
backward
(<)
once
will
cause
return
to
the
beginning
of
the
current
track;
a
second
immediate
push
will
cause
a
skip
back
to
the
preceding
track.
When
the
pick-up
comes
to
the
first
selection,
the
next
push
will
cause
it
to
go
to
the
beginning
of
the
last
selection
on
the
disc.
Pressing
forward
(»»)
will
cause
the
player
to
skip
forward,
one
track
at
a
time
for
each
successive
push.
When
the
last
selection
is
reached,
the
next
push
will
return
the
pick-up
to
the
first
track.
10. PLAY Button { > }
Press
PLAY
button
when
loading
a
disc
for
immediate
playback
beginning
at
track
1
and
for
starting
a
pro-
grammed
sequence.
11, A-SCAN (AUTO SCAN) Button
Press
this
button
to
successively
play
a
beginning
of
each
track
for
ten
seconds.
During
the
auto
scanning
mode,
the
A-SCAN
indicator
will
appear
on
the
dis-
play.
12. RANDOM Button
Press
this
button
to
automatically
play
tracks
at
ran-
dom.
During
the
random
play,
the
RANDOM
indicator
will
appear
on
the
display.
CONTROLS
&
SWITCHES
—
FRONT
PANEL
13. PHONES Jack
Use
the
“phones”
jack
to
connect
stereo
headphones
for
private
listening.
14. VOLUME UP/DOWN Buttons
Controls
volume
level
of
connected
stereo
head-
phones
and
the
VARIABLE
ANALOG
OUTput
jacks
on
the
rear
panel.
When
activated,
the
output
level,
as
measured
in
db
below
maximum
output,
is
shown
in
the
display.
15. FADE-OUT Button
Use
this
button
to
gradually
decrease
the
output
level
of
the
VARIABLE
ANALOG
OUTput
jacks
on
the
rear
panel
and
the
phones
jack.
When
the
fade-out
com-
pletes,
the
unit
enters
the
pause
mode
and
the
output
level
automatically
returns
to
the
original
level.
16.
T-FADE
OUT
(Time
Fade
Out)
Button
Use
this
button
to
gradually
decrease
the
output
level
of
the
VARIABLE
ANALOG
OUTput
jacks
on
the
rear
panel
and
the
phones
jack
after
a
length
of
play
time
as
specified
by
the
Direct
Access
select
buttons.
When
the
fade-out
completes,
the
unit
will
enter
the
pause
mode
and
the
output
level
automatically
returns
to
the
original
level.
17. DISPLAY ADJUST Button/Indicator
This
button
adjusts
brightness
of
the
display
in
four
steps
and
also
turns
the
display
off.
The
red
indicator
lights
up
and
stays
lit
in
the
3
dimmed
positions
andin
the
display
“off”
position.
18. T-DISPLAY Button
Each
push
of
this
button
selects
one
of
4
disc
tinning
displays
as
follows:
“Single
Elapsed”
—
Time
elapsed
since
beginning
of
current
track.
“Single
Remain”
—
Play
time
remaining
on
current
track.
“Total
Elapsed”
—
Time
elapsed
since
beginning
of
total disc.
“Total
Remain”
—
Play
time
remaining
on
entire
disc.
