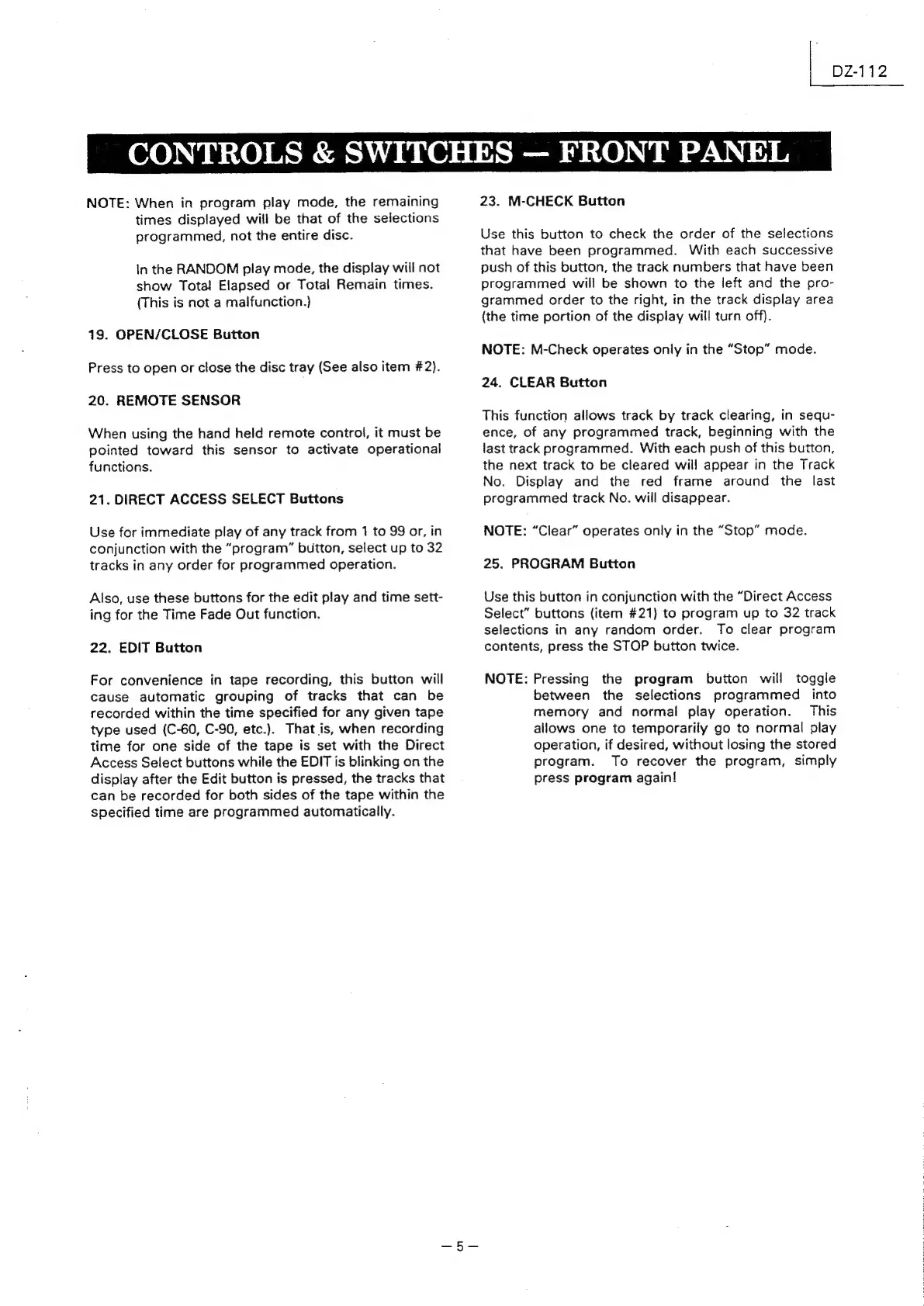

DZ-112

CONTROLS

&

SWITCHES

—

FRONT

PANEL

NOTE:

When

in

program

play

mode,

the

remaining

times

displayed

will

be

that

of

the

selections

programmed,

not

the

entire

disc.

In

the

RANDOM

play

mode,

the

display

will

not

show

Total

Elapsed

or

Total

Remain

times.

(This

is

not

a

malfunction.)

19.

OPEN/CLOSE

Button

Press

to

open

or

close

the

disc

tray

(See

also

item

#2).

20.

REMOTE

SENSOR

When

using

the

hand

held

remote

control,

it

must

be

pointed

toward

this

sensor

to

activate

operational

functions.

21.

DIRECT

ACCESS

SELECT

Buttons

Use

for

immediate

play

of

any

track

from

1

to

99

or,

in

conjunction

with

the

“program”

button,

select

up

to

32

tracks

in

any

order

for

programmed

operation.

Also,

use

these

buttons

for

the

edit

play

and

time

sett-

ing

for

the

Time

Fade

Out

function.

22.

EDIT

Button

For

convenience

in

tape

recording,

this

button

will

cause

automatic

grouping

of

tracks

that

can

be

recorded

within

the

time

specified

for

any

given

tape

type

used

(C-60,

C-90,

etc.).

That

is,

when

recording

time

for

one

side

of

the

tape

is

set

with

the

Direct

Access

Select

buttons

while

the

EDIT

is

blinking

on

the

display

after

the

Edit

button

is

pressed,

the

tracks

that

can

be

recorded

for

both

sides

of

the

tape

within

the

specified

time

are

programmed

automatically.

23.

M-CHECK

Button

Use

this

button

to

check

the

order

of

the

selections

that

have

been

programmed.

With

each

successive

push

of

this

button,

the

track

numbers

that

have

been

programmed

will

be

shown

to

the

left

and

the

pro-

grammed

order

to

the

right,

in

the

track

display

area

(the

time

portion

of

the

display

will

turn

off).

NOTE:

M-Check

operates

only

in

the

“Stop”

mode.

24.

CLEAR

Button

This

function

allows

track

by

track

clearing,

in

sequ-

ence,

of

any

programmed

track,

beginning

with

the

last

track

programmed.

With

each

push

of

this

button,

the

next

track

to

be

cleared

will

appear

in

the

Track

No.

Display

and

the

red

frame

around

the

last

programmed

track

No.

will

disappear.

NOTE:

“Clear”

operates

only

in

the

“Stop”

mode.

25.

PROGRAM

Button

Use

this

button

in

conjunction

with

the

“Direct

Access

Select”

buttons

(item

#21)

to

program

up

to

32

track

selections

in

any

random

order.

To

clear

program

contents,

press

the

STOP

button

twice.

NOTE:

Pressing

the

program

button

will

toggle

between

the

selections

programmed

into

memory

and

normal

play

operation.

This

allows

one

to

temporarily

go

to

normal

play

operation,

if

desired,

without

losing

the

stored

program.

To

recover

the

program,

simply

press

program

again!
