Luxman DZ-112 Service Manual

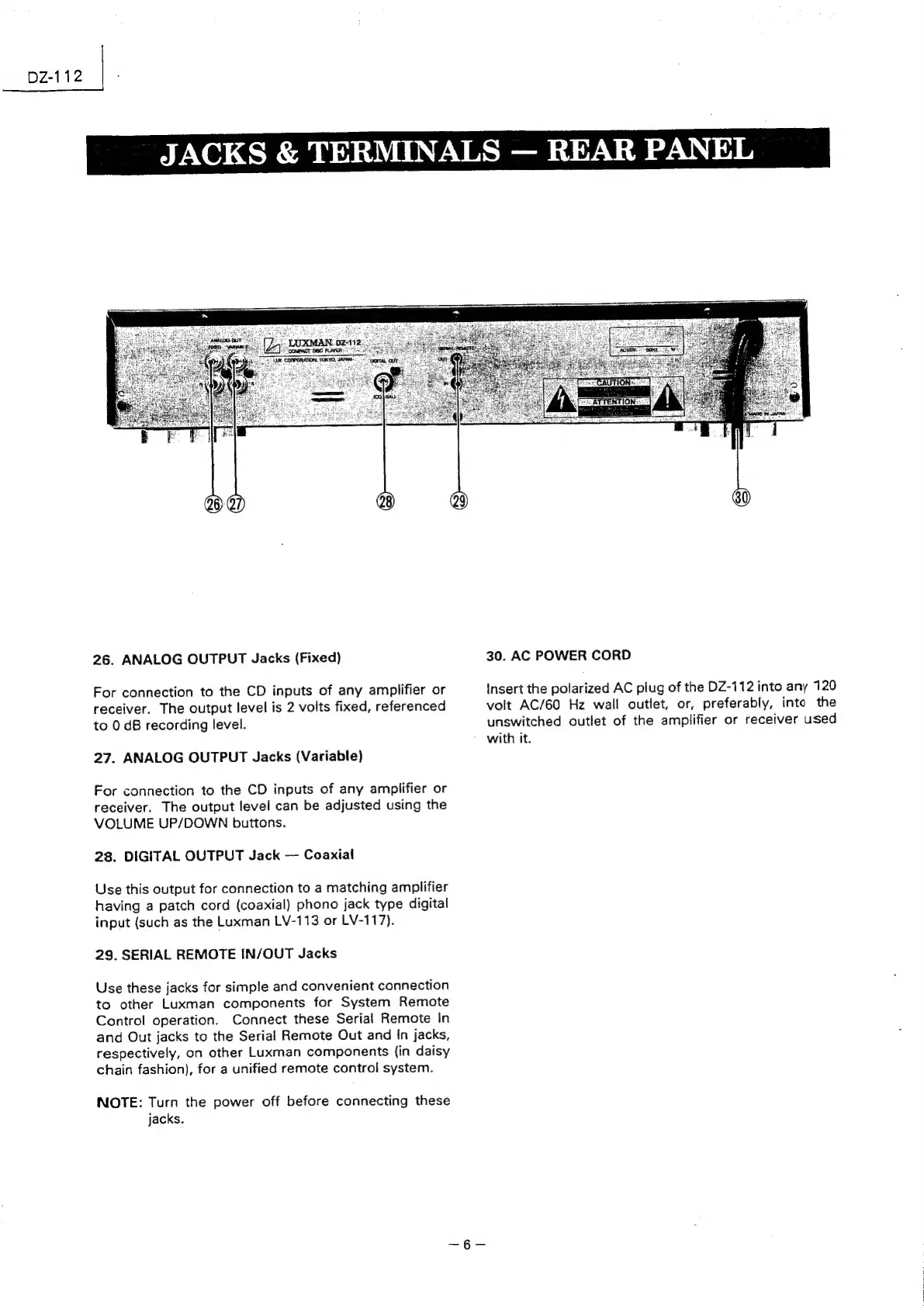

JACKS
&
TERMINALS
—
REAR
PANEL
26.
ANALOG
OUTPUT
Jacks
(Fixed)
For
connection
to
the
CD
inputs
of
any
amplifier
or
receiver.
The
output
level
is
2
voits
fixed,
referenced
to
0
dB
recording
level.
27.
ANALOG
OUTPUT
Jacks
(Variable)
For
connection
to
the
CD
inputs
of
any
amplifier
or
receiver.
The
output
level
can
be
adjusted
using
the
VOLUME
UP/DOWN
buttons.
28. DIGITAL OUTPUT Jack — Coaxial
Use
this
output
for
connection
to
a
matching
amplifier
having
a
patch
cord
(coaxial)
phono
jack
type
digital
input
(such
as
the
Luxman
LV-113
or
LV-117).
29. SERIAL REMOTE IN/OUT Jacks
Use these jacks for simple and convenient connection
to
other
Luxman
components
for
System
Remote
Control
operation.
Connect
these
Serial
Remote
In
and
Out
jacks
to
the
Serial
Remote
Out
and
In
jacks,
respectively, on other Luxman components {in daisy
chain fashion), for a unified remote control system.
NOTE: Turn the power off before connecting these
jacks.
30. AC POWER CORD
Insert
the
polarized
AC
plug
of
the
DZ-112
into
any
120
volt
AC/60
Hz
wall
outlet,
or,
preferably,
into
the
unswitched
outlet
of
the
amplifier
or
receiver
used
with
it.
