5.1.3 Task
The Task setup sub-menu is used for setting up the default sectors for turnpoints to be used,
when a new task is created. The sub-menu holds the following settings:
• Default start - sets the default starting sector parameters
• Default point - sets the default turnpoint sector parameters
• Default finish - sets the default finish sector parameters
5.1.4 Indicators
The Indicators setup sub-menu holds the setup parameters for indicators on the Main page
.
Two different sets of indicators can be set for each flight mode.
The two flight modes - circling and straight flight are denoted as Vario (circling) and SC
(straight flight). Different indicators can be assigned both to the digital needle as well as to
numerical indicators. Pressing the SC switch will change between the two sets of indicators.
The following settings are available:
• Vario needle
• 4 NavBox items
• Vario NavBox 1
• Vario NavBox 2
• Vario NavBox 3
• Vario NavBox 4
• SC needle
• SC NavBox 1
• SC NavBox 2
• SC NavBox 3
• SC NavBox 4
The pilot can also choose between two and four numerical indicators on the main page,
offering a choice between more info and better legibility.

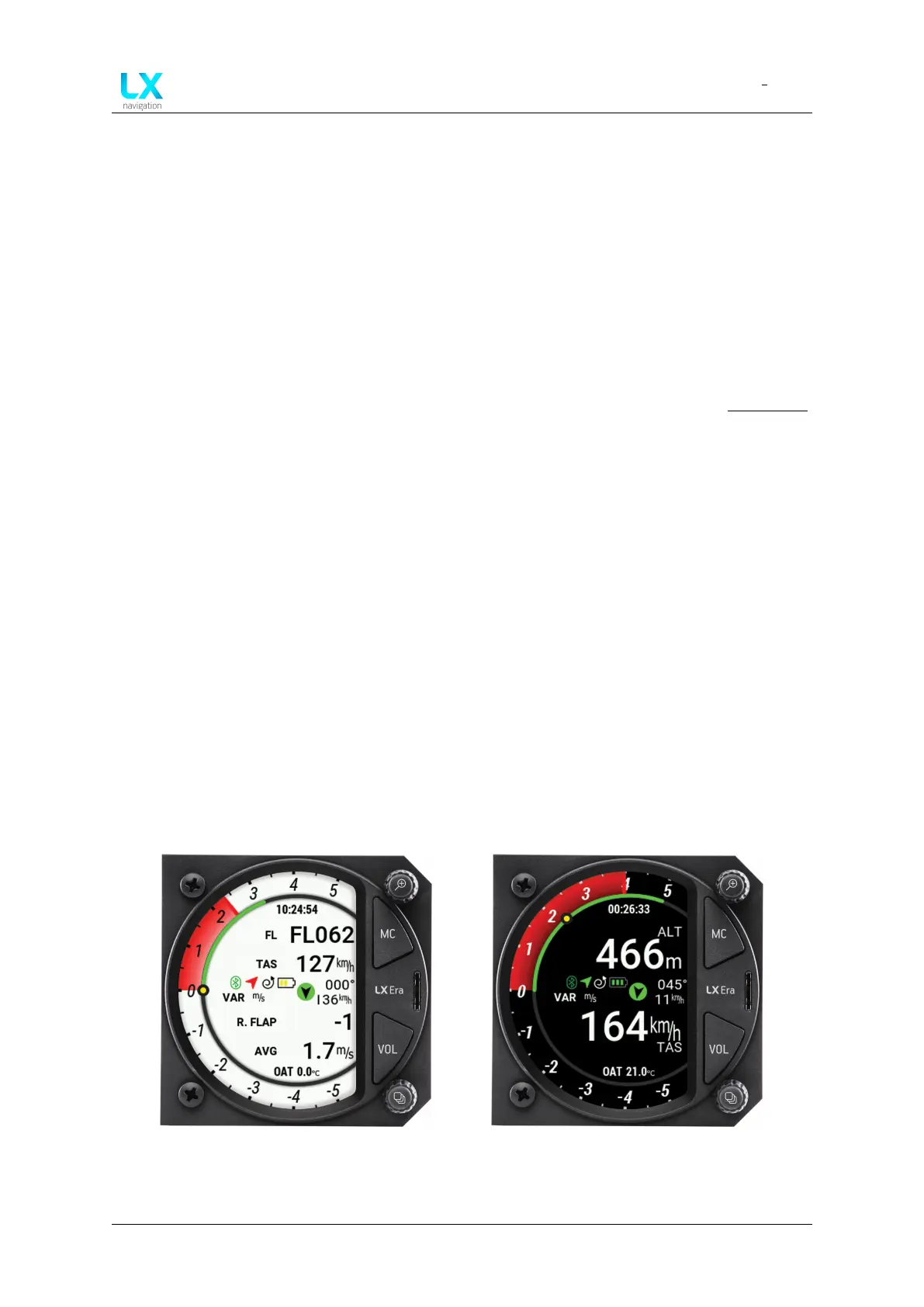

Figure 64. Four numeric indicators Figure 65. Two numeric indicators
