6.START-UP
_
Start electrically the pump only when the suction and discharge pipes are
connected to the corresponding inlets and outlets.
_
Apply voltage to the motor and suitably adjust the jets to obtain the
desired flow.
7.MAINTENANCE AND CLEAN
_
Our pumps for hydromassage facilities do not require any special
maintenance or programming. If the pump will be idle for a long period of
time , it is recommended to disassemble , clean and store it in a dry , well
ventilated place. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person to a hazard.
8.TROUBLE SHOOTING GUIDE
LOW VOLTAGE
SYMPTOM
POSSIBLE CAUSE
CHECK
PUMP
DOES
NO TURN
NO POWER
TO PUMP
-Incoming power to the pump?
-Is circuit breaker on?
-Is GFCI operating properly?
-Is the air switch plugged in?
AIR SWITCH
DISCONNECTED
-Is the air switch hose connected to the
pump?
-Is the air switch hose connected to the
actuator button on the tub deck?
-Jets should be pointed away from the
suction inlet so air is not forced into
pump suction.
-Is the in tub suction inlet blocked
or covered?
-Is there any debris in the pump
housing?
-Is there a leak in the piping or the
pump?
BLOCKAGE OR
LEAK
PUMP
NOT
PUMPING
PROPERLY
-Is the proper voltage applied to the
pump?
-Is there an extension cord being used?

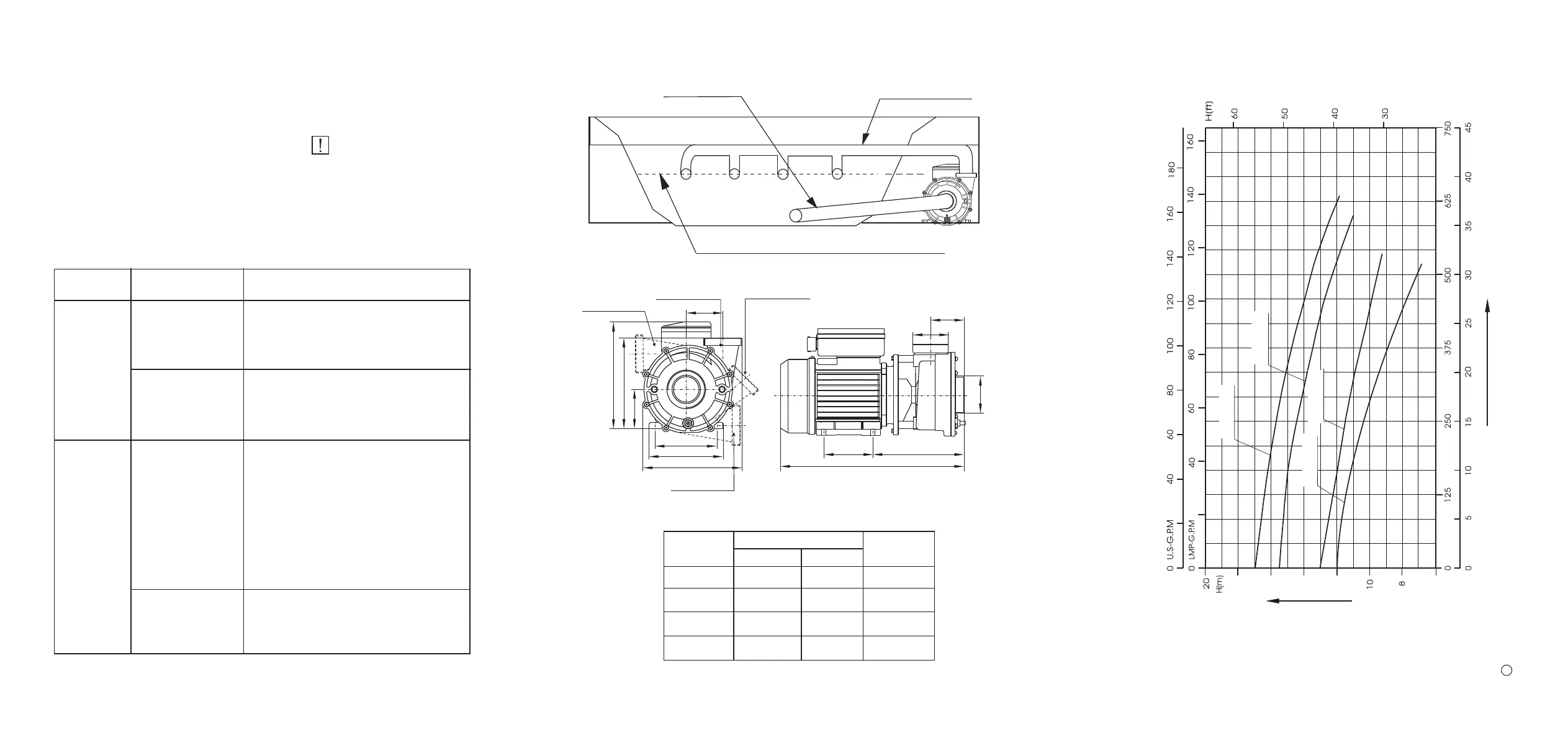

9.INSTALLATION DIAGRAM
Suction pipe
Discharge pipe
Minimum water level for the pump operation
Fig.1
Fig.2
Performance curves
LP200(T)
1.50
2.0
382
Power(P)
1
Model
kW HP
LP300(T) 2.20 3.0
397
L
LP250(T)
1.85
2.5
382
LP150(T) 1.10
1.5
382
l/min
3
m/h
12
14
16
18
Flow
Head (m)
6
Edition: 2019-07 a
LP300(T)
LP200(T)
LP150(T)
LP250(T)
194.5100
L
73
2FBT
2FBT
150
125
80
187
75
218
202
3:00 Location
12:00 Location
9:00 Location
1:30 Location
