Control/Monitoring
For units with WinChill RS485 communications, the cable must not exceed one thousand feet in
length.
PXZ Controller

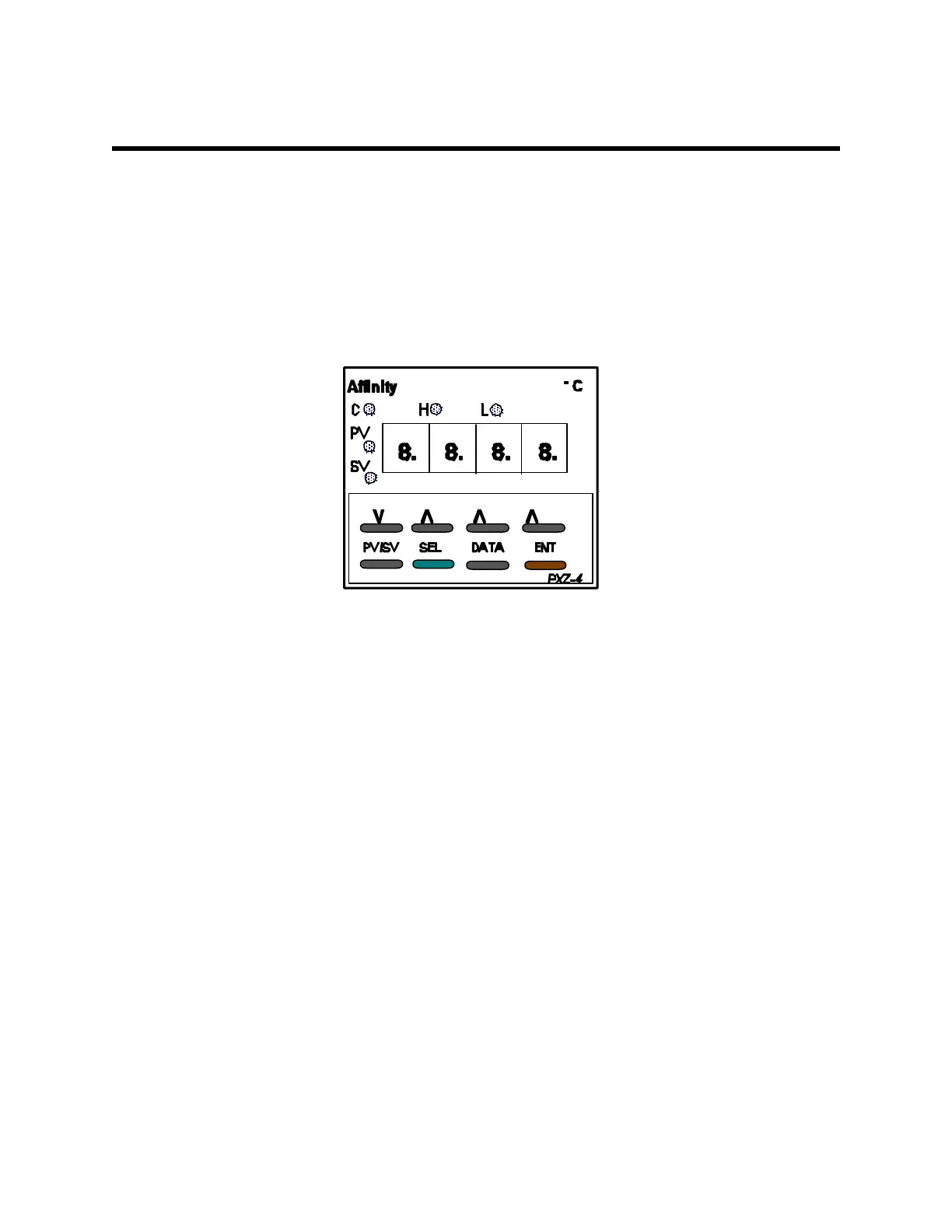

A second controller (Figure 2), located inside the electrical box, is for heater safety. It has been
programmed at the factory and should not be changed. The following values are provided for
information purposes only.
Figure 2
To check the program:
1. Press and hold the SEL key until the P-n1 menu appears (3-5 secs.)
2. Toggle through the P-n1 menu until dSP1 appears.
3. Program the following values:
dSP1 65 Parameter masking - used to hide the display of
unused parameters
dSP2 255
dSP3 251
dSP4 255
dSP5 3
dSP6 186
dSP7 127
