SECTION 1

UNPACKING

AND SETUP

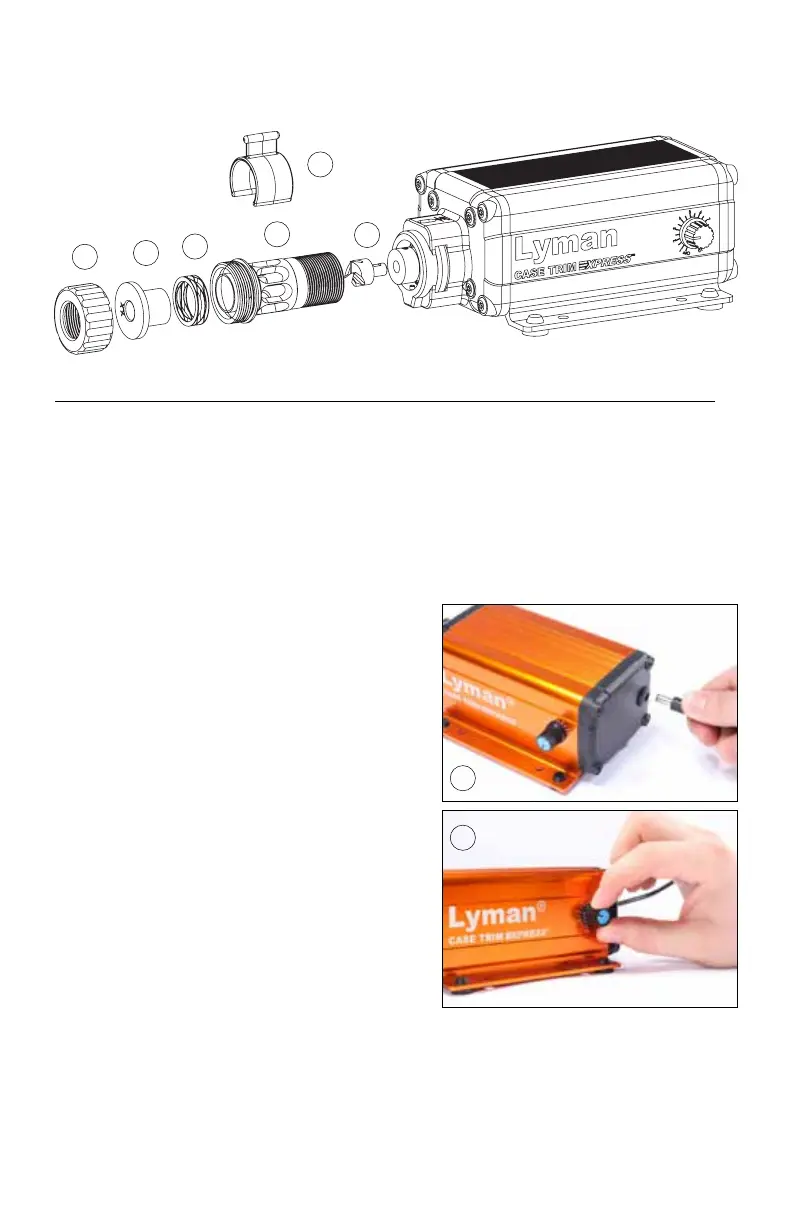

Replacement Parts (Not Shown)

A. Cap (Part #7810240) (#7810245) 29V DC Power Supply

B. Bushing (See Chart on back) (#7994460) EU Cordset 230V

C. Spring (Part #7810241) (#7994461) UK Cordset 230V

D. Adjuster Barrel (Part #7810242) (#7994462) SA Cordset 230V

E. Chip Guard (Part #7810243) (#7994463) AUS Cordset 230V

F. Carbide Cutter (Part #7810244) (#7994464) US Cordset 115V

1. Remove the trimmer and all accessories

from packaging, ensure all parts are

present. Included in the box will be;

a. Power supply. Note: the 115 volt

model will include one power cord.

The 230 volt model will include four dif-

ferent power cords.

b. Trimmer unit with Bushing Cap,

Adjuster Barrel, Spring, Cutter Head and

a Chip Guard. (See Diagram above.)

c. 10 bushings.

2. Minimal assembly is required. Plug

power cord into back of trimmer and

power outlet. (pic 1)

3. Turn power knob to the on position,

ensuring that motor powers on and spins freely. (pic 2)

4. Remove power cord from trimmer for next step. Remember to ALWAYS

remove power cord prior to changing bushings or replacing cutter

head.
