Lynx Ionic Series - Connectors and Connections

Ionic Series User Manual
Lynx Pro Audio S.L 8www.lynxproaudio.com

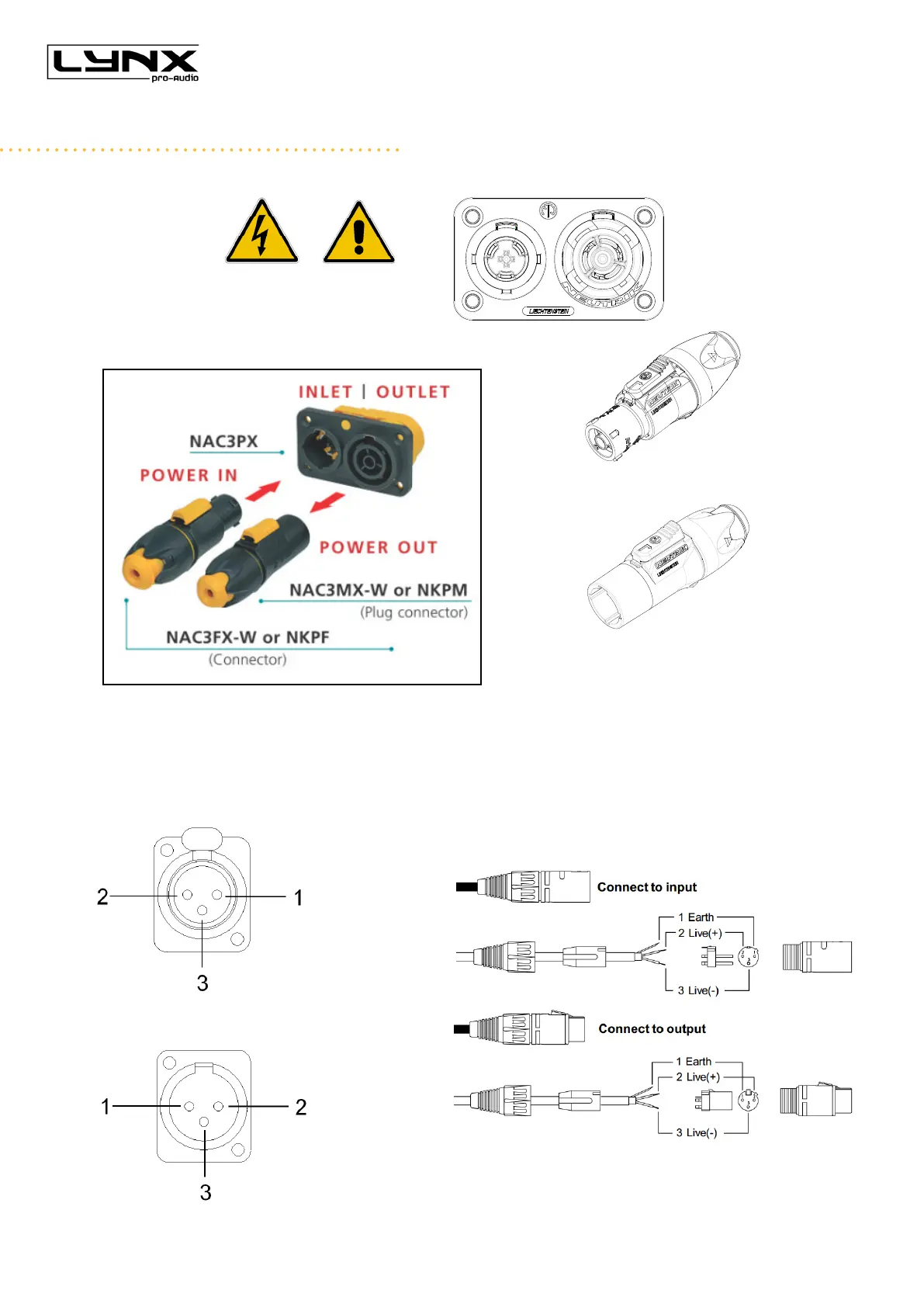

CONNECTORS AND CONNECTIONS
XLR AEREAL CONNECTORS
OUTPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
INPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
XLR SOCKET CONNECTORS
SOCKET POWERCON TRUE1
CAUTION: Do not connect
or disconnect the AC Power
connectors under load.
NAC3FX-W
NAC3MX-W
