CARE AND USE/INSTALLATION
PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
LM15ICER
15"
(38.1 cm)
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
33
3
⁄4" to 34
3
⁄4"
(85.7 to 88.3 cm)
23
5
⁄8"
(60 cm)
25
9
⁄16"
(64.9 cm)
37
13
⁄32"
(95 cm)
16
11
⁄16"
(42.4 cm)
"A"
"B"
"C"
"D"
"E"

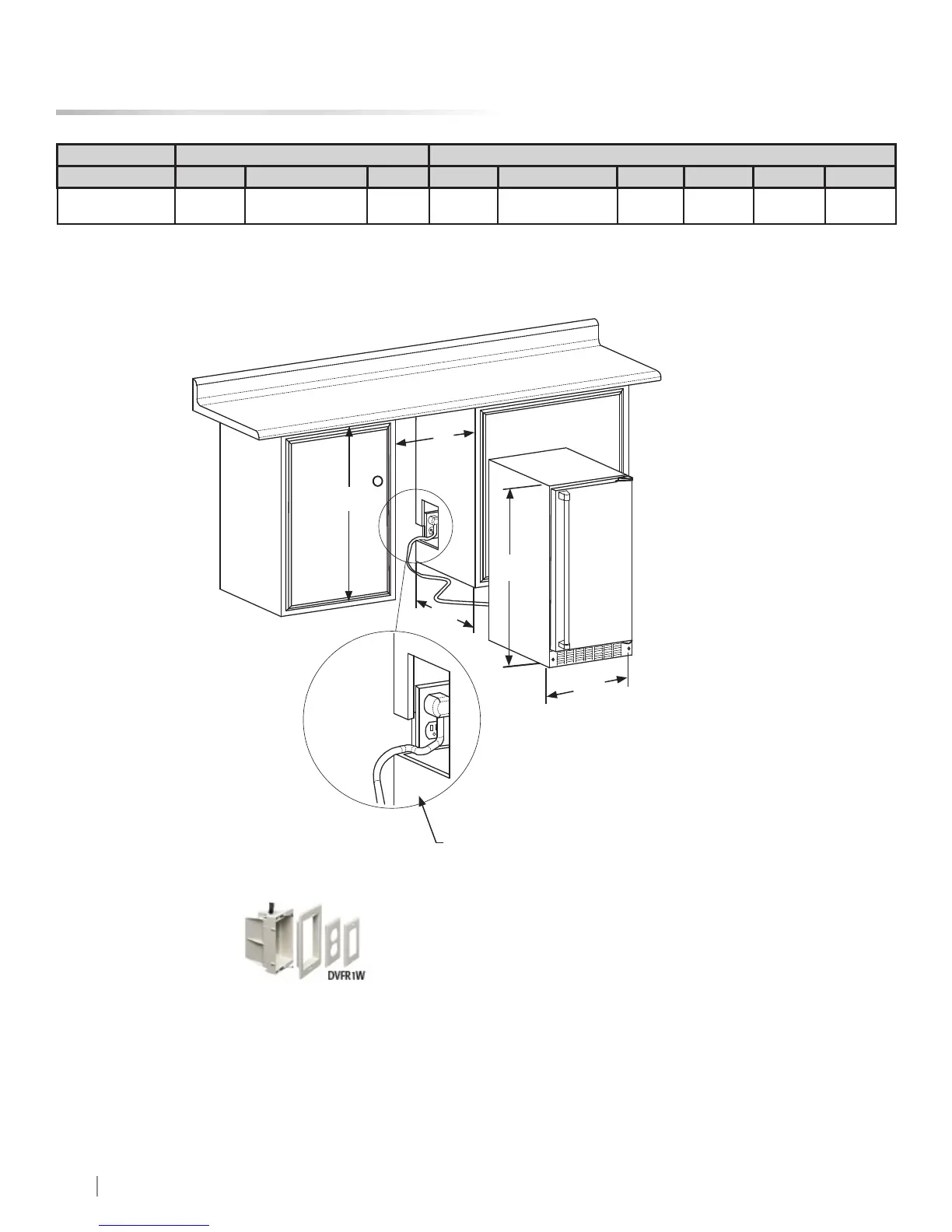

Figure 20
Figure 20a
Figure 21
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabi-
net and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this applica-
tion as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for
this application, (see Figure 21).
