LDT, LDTB 15

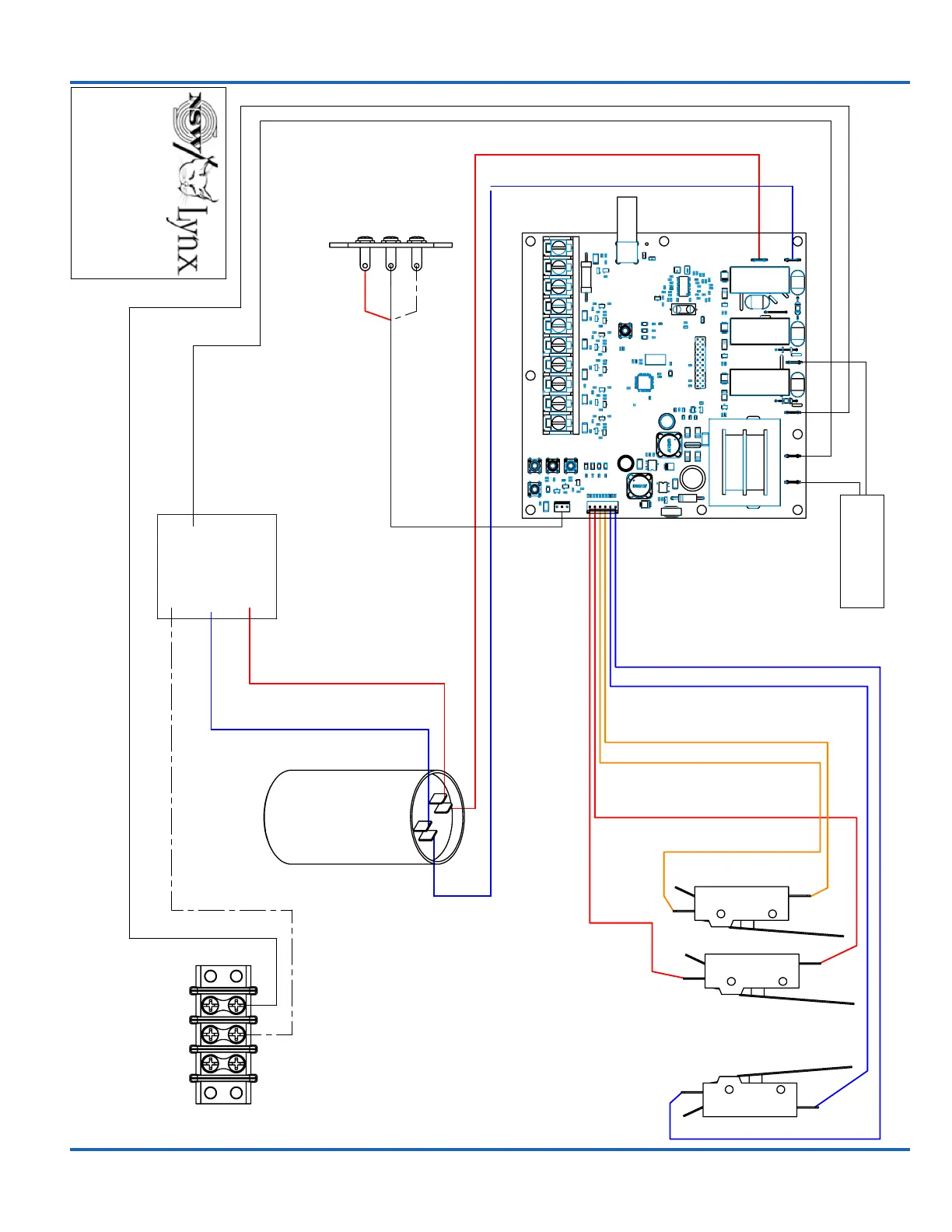

WIRING DIAGRAM (FACTORY)
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
NAPOLEON/LYNX. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
NAPOLEON/LYNX IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
1
2
3
L3L2L1
Black
White
Blue
Blue
Thermostat
Advanced
Close Limit
Open Limit
Close Limit
MA
MB
Red
Red
Capacitor
Motor
LDT
Red
Black
White
Black/White
3-Wire
Blue
Orange
Red
Orange
Red
Blue
Rev.
06/08/15
Brake Solenoid
if Required
115 Volt AC
Single Phase
Line In
(Ground to case with
ground screw provided)
