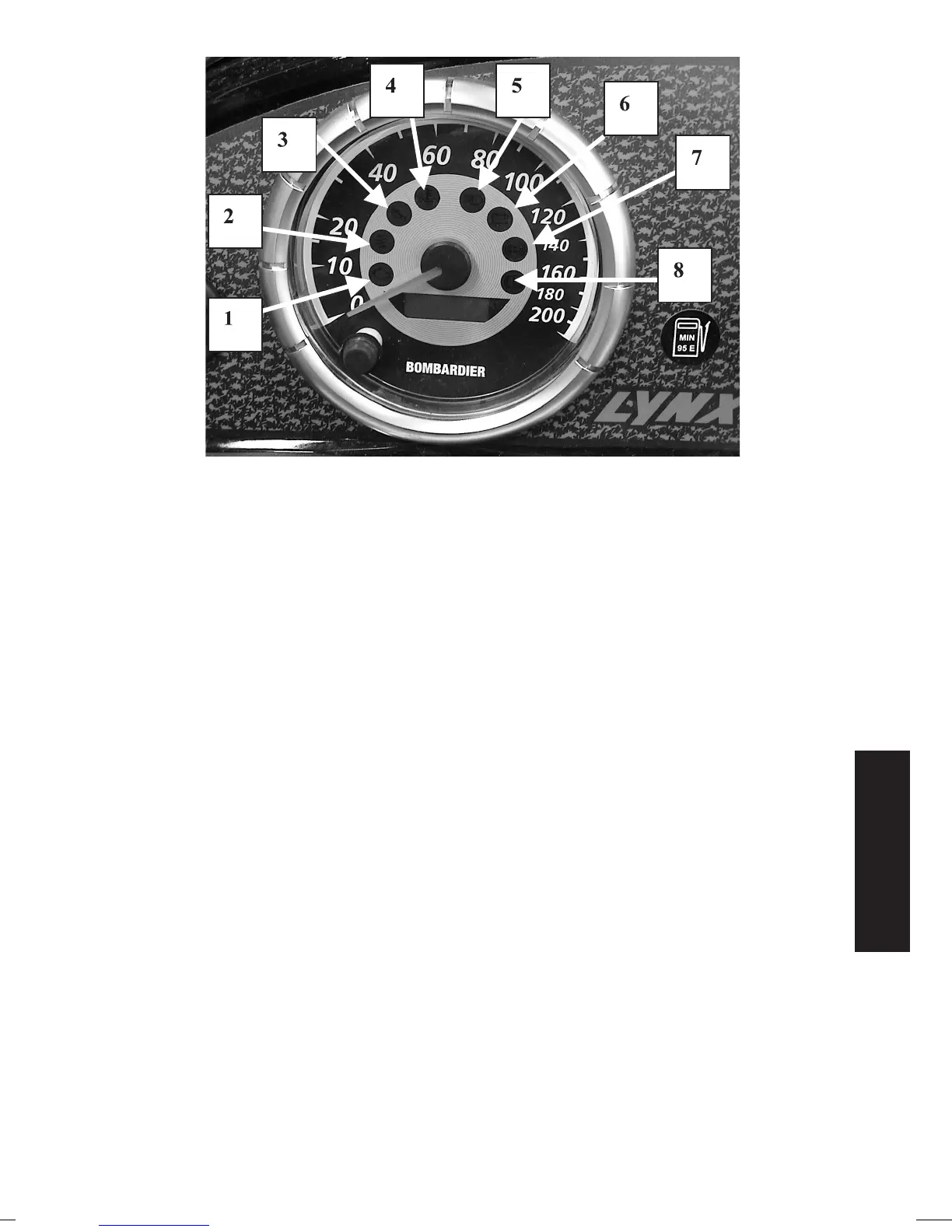

1. Engine Management System (EMS) pilot lamp
2. Air shock pilot lamp (not in use on Lynx)
3. Oil pressure pilot lamp
4. Cooling liquid pilot lamp
5. High beam pilot lamp
6. Low battery voltage pilot lamp
7. DESS pilot lamp
8. Brake pilot lamp
1. Throttle lever
Located on the right side of handlebar. When compressed, it controls the engine speed and
the engagement of the transmission. When released, engine speed returns automatically to
idle.
2. Brake lever
Located on the left side of handlebar. When compressed, the brake is applied. When re-
leased, it automatically returns to its original position. Braking effect is proportional to the
pressure applied on the lever and to the type of terrain and its snow coverage.
3. Parking brake button or lever
Located on left side of handlebar. Parking brake should be used whenever snowmobile is
parked.
Whenever parking brake is applied and engine is running, injection oil level/parking brake
pilot lamp lights up to remind you that it is engaged. Never leave your snowmobile on down-
hill only with parking brake engaged.
