200SM071 v1.0 Page 3 of 4

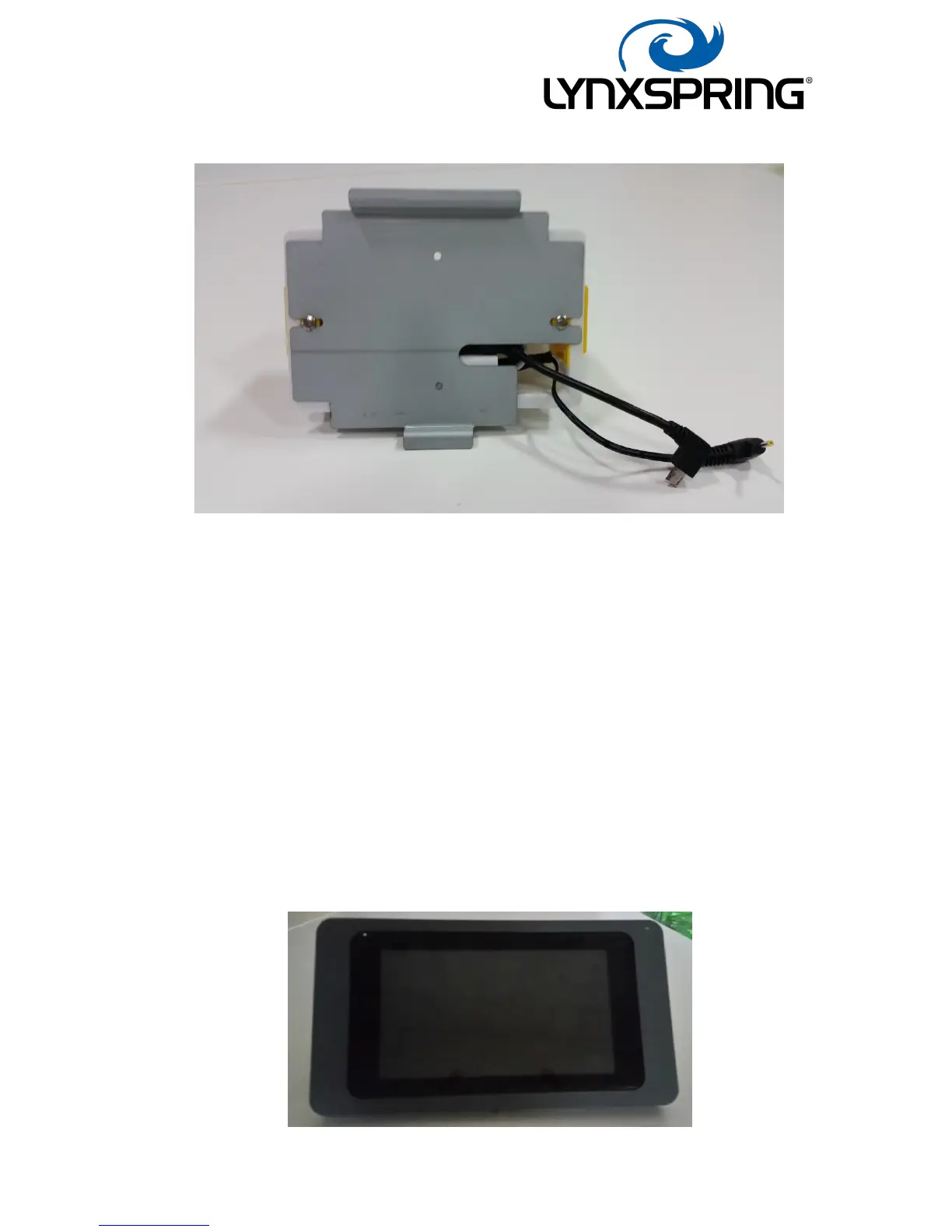

Once wiring is complete, attached mounting plate.
Once plate attached, connect the microUSB cable to the matching socket & the 2.5mm
Barrel cable to the power socket, both located on the right had edge of the tablet.
Once both connections are in place (you will have to temporarily remove 2 of the
screen corner brackets and ease the tablet slightly out of the frame to give space to
slot the cables in), after re-attaching these brackets, locate the display frame assembly
over the top of the mount plate. There are grooves on the inside edge of the frame to
suit, long grooves on the top, small grooves & locking grub screw to the bottom.
Once in place, and ensuring no cable are dislodged or inadvertently crimped or
squashed, tighten the grub screw, using the Allan key supplied.
Installation is now complete. To power up the screen, insert the Allan key into the hole
in the frame on the right-hand side and press and hold until the display powers up,
evident by the screen showing 4 x penguins.
Finished Assy
