Panel Mounting
The mounting plate is designed such that it allows both panel and box mounting. It is
supplied with a 1 to 1 printed template, which taped in place to your panel, with the
mounting hole points marked through onto your panel. It can then be removed and
the holes drilled. The hole sizes are annotated on the reverse of the template.
Once drilled, the mounting plate is attached using 2 x M3 x 6mm screws, with a NY
lock n
ut attached to each one for fixing. Once the plate is attached, the PSU can be
attached also, using a further 2 x M3 x 6mm screws & serrated washers, located and
tightened against the threaded clinch nuts, on the mounting plate, exposed by the free
holes. The supplied Grommet stripped is to be fitted to the inside of the 26mm hole
for protection. Once all attached, the connections can be made. The USB to Ethernet

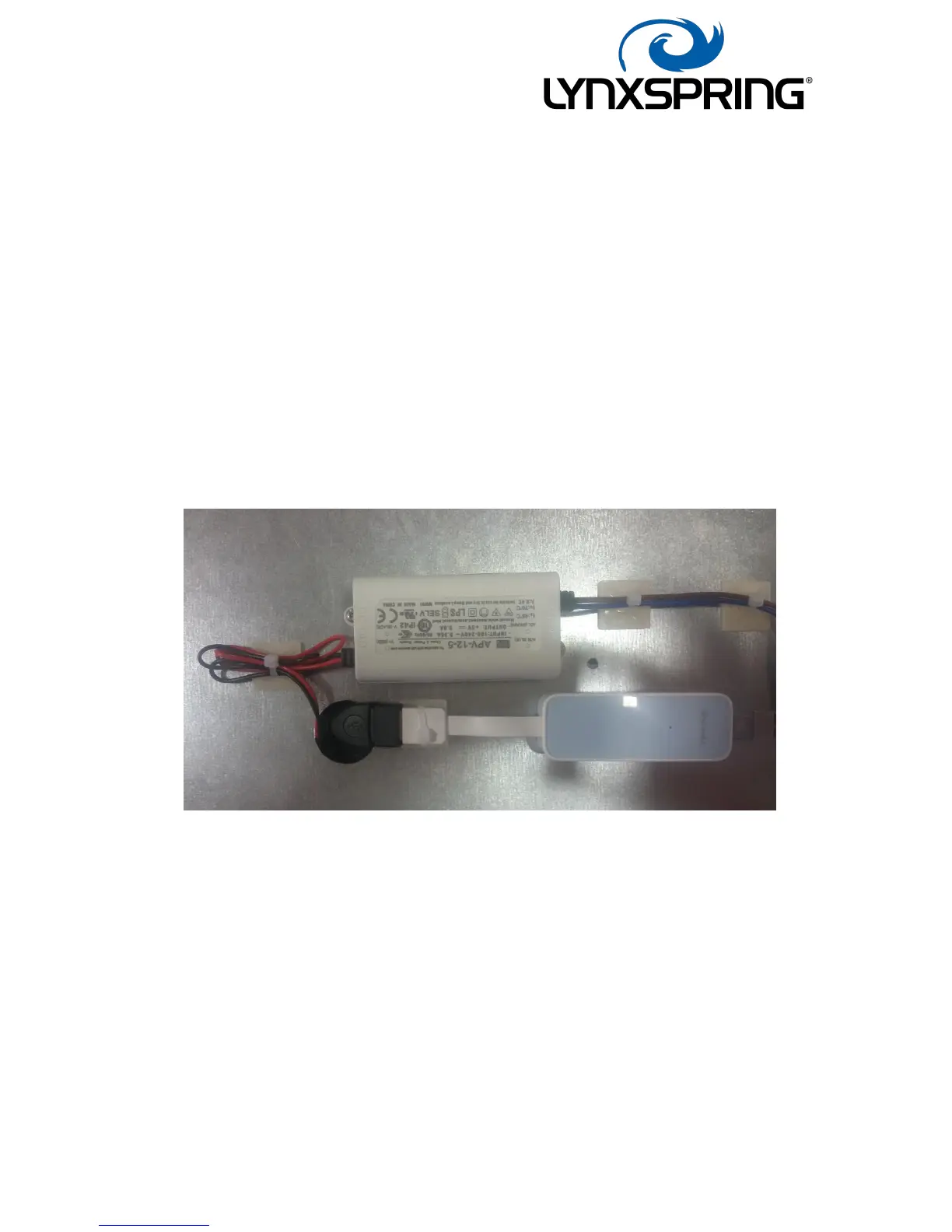

converter can be attached to the back panel via cable ties or Velcro tape. A typical
wiring is show below. Once installed, follow the Setup Guide for operation.
