Studiophile AV 40 User Guide
Acoustic/Traction Pads
In order to minimize vibrations and maximize
physical stability, we recommend you use the
provided acoustic/traction pads on the bottoms
of the Studiophile AV 40 monitors.

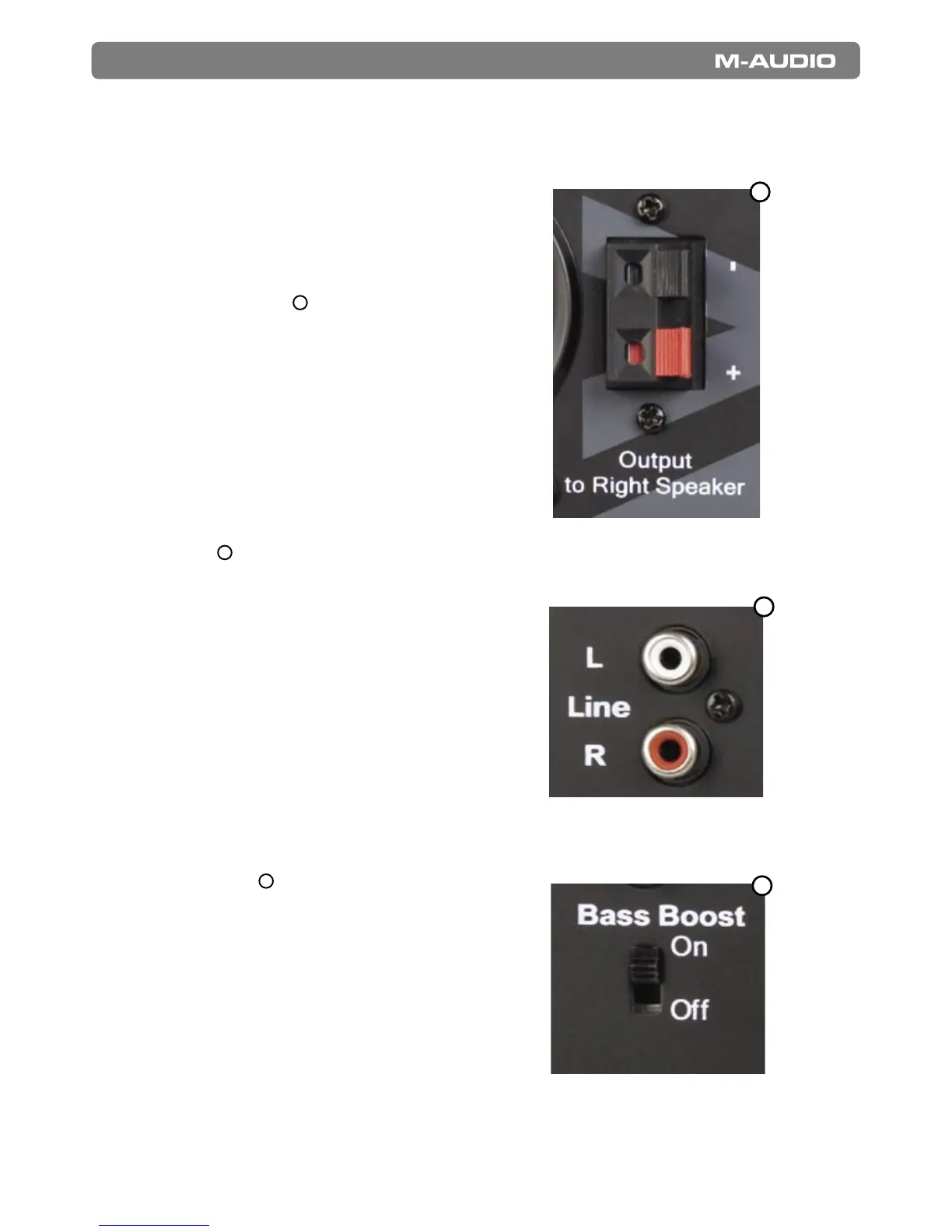

Speaker Wire
Connections
1
Use the transparent tinned bare wire cable
included in the Studiophile AV 40 package to
connect the Left and Right speakers via the red
/black spring-clip terminals on the back of each
speaker.
Connecting to a
Computer Sound Card
or Other Audio Output
Device
2
Before connecting the Studiophile AV 40
monitors, make sure the power from the computer
or other output device has been turned off and
the Studiophile AV 40 system is also turned off.
Connect the 1/4" or RCA input jacks to the
corresponding output connectors of a computer
sound card, portable music player, etc. You
can also use the black 1/8" stereo mini cable to
connect a secondary audio device to the “Aux”
input on the front of the Studiophile AV 40.
Setting the “Bass Boost”
EQ Switch
3
This 2-position switch provides a subtle increase
in bass response. The On mode increases
the low-frequency gain slightly via the woofer
and bass-reflex port. The Off mode produces
a natural, even response for most listening
conditions.
Please see Appendix C for the “Bass Boost”
frequency response curve.
