M-Audio DELTA 1010LT User Manual

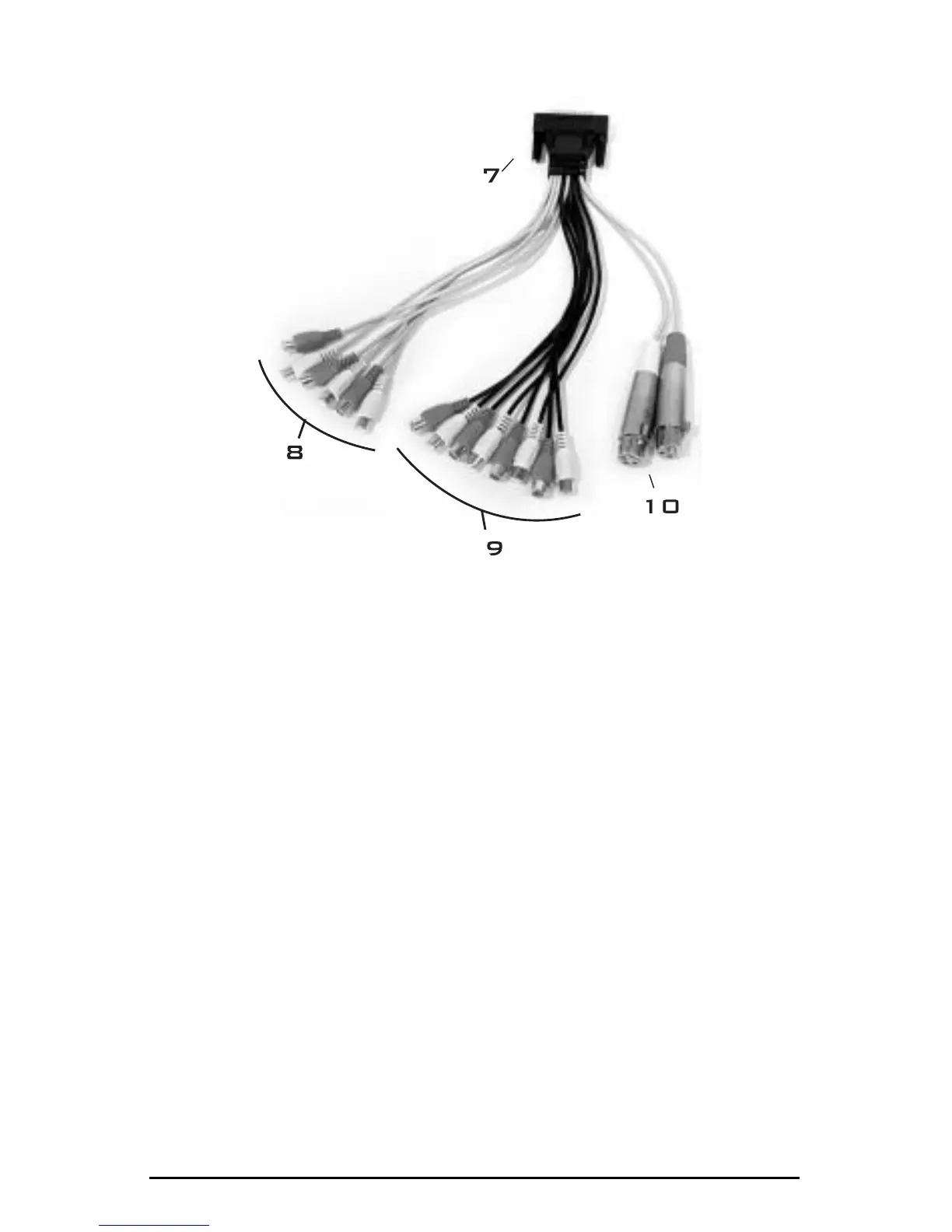

Breakout Cable 2:
7. Host Cable connector: This 44-pin female D-sub connector is used to attach
the breakout cable to the PCI host card’s male D-sub connector.
8. Analog Inputs 3-8: These jacks input analog audio from a variety of external
sources. Each jack is RCA coaxial and is compatible with RCA coaxial
(unbalanced) connections. These cables are tan in color, with the jacks colored
white for left and red for right for each stereo pair.
9. Analog Outputs 1-8: These jacks output analog audio to a variety of external
targets. Each jack is RCA coaxial and is compatible with RCA coaxial
(unbalanced) connections. These cables are black in color, with the jacks
colored white for left and red for right for each stereo pair.
10. Analog Inputs 1-2: These jacks input analog audio from a variety of external
sources. Each jack is female XLR and is compatible with two-conductor
(typically XLR or TRS) balanced connections. Inputs 1&2 can be set via
jumpers on the PCI card to accept either line level or mic level signals. These
cables are tan in color, with the jacks colored white for left and red for right.
B
C
6

M-Audio DELTA 1010LT Specifications

General

Analog Inputs	8 x 1/4" TRS
Analog Outputs	8 x 1/4" TRS
Bit Depth	24-bit
Interface	PCI
THD+N	0.002%
Digital Inputs	S/PDIF
Digital Outputs	S/PDIF
MIDI I/O	1 x In, 1 x Out
Software Compatibility	ASIO, Core Audio
Sample Rate	Up to 96 kHz
Channels	10 input / 10 output
