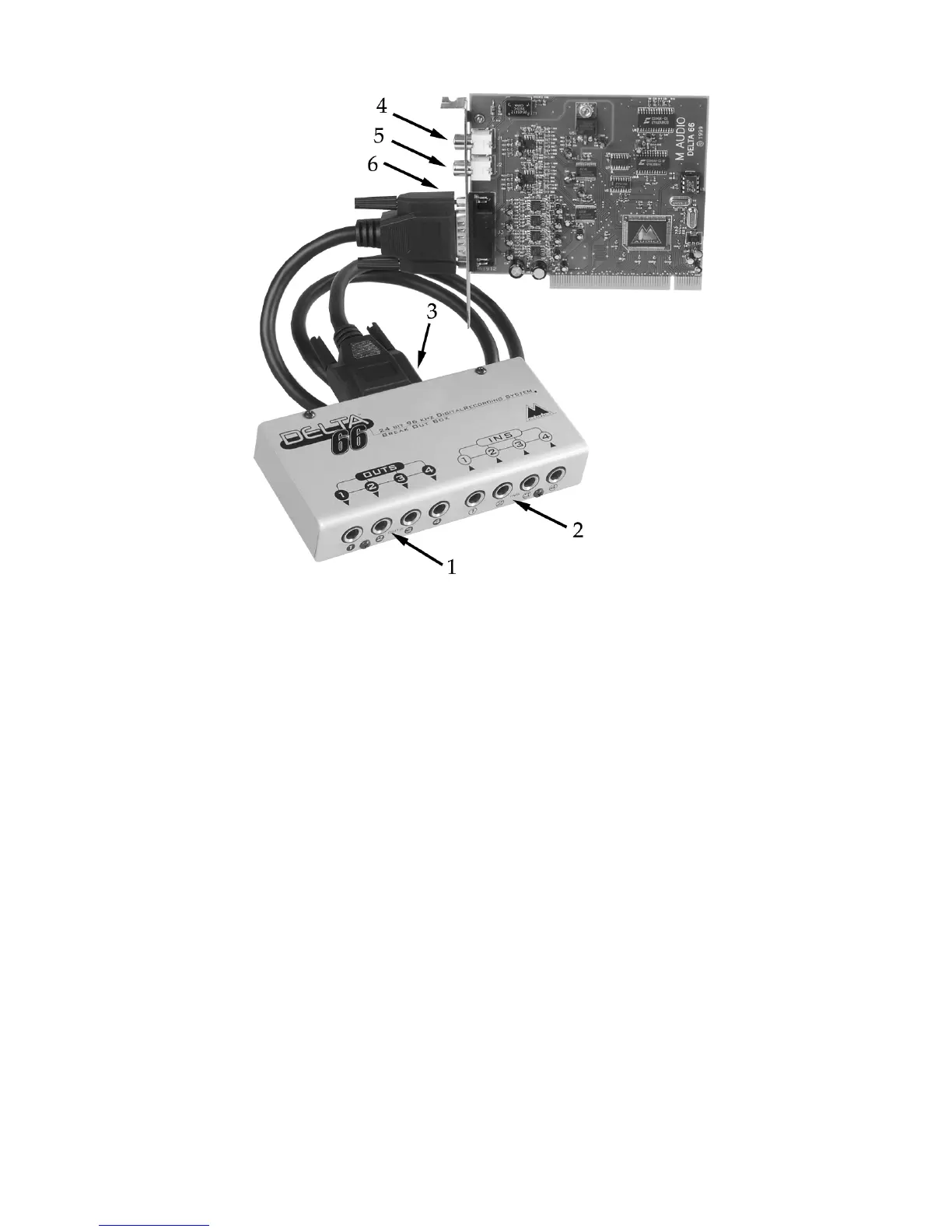

Break-Out Box Front Panel:
1. Analog OUTS 1-4: These jacks output analog audio to a variety of external
sources. Each jack is 1/4” TRS (Tip-Ring-Sleeve) and is compatible with 1/4”
TRS (balanced) or TS (Tip-Sleeve unbalanced) connections.
2. Analog INS 1-4: These jacks input analog audio from a variety of external
sources. Each jack is 1/4” TRS (Tip-Ring-Sleeve) and is compatible with 1/4”
TRS (balanced) or TS (Tip-sleeve unbalanced) connections.
Break-Out Box Back Panel:
3. Host Cable connector: This 15-pin D-sub connector is used to attach the
external break-out box to the PCI host card, using the supplied host cable.
PCI Host Adapter Card:
4. Coaxial S/PDIF Input: This RCA connector receives an S/PDIF stereo signal
from your coaxial S/PDIF digital source such as a DAT, MiniDisc player or
external A/D converter.
4
