M-Audio M-Track Duo User Manual

5
Features

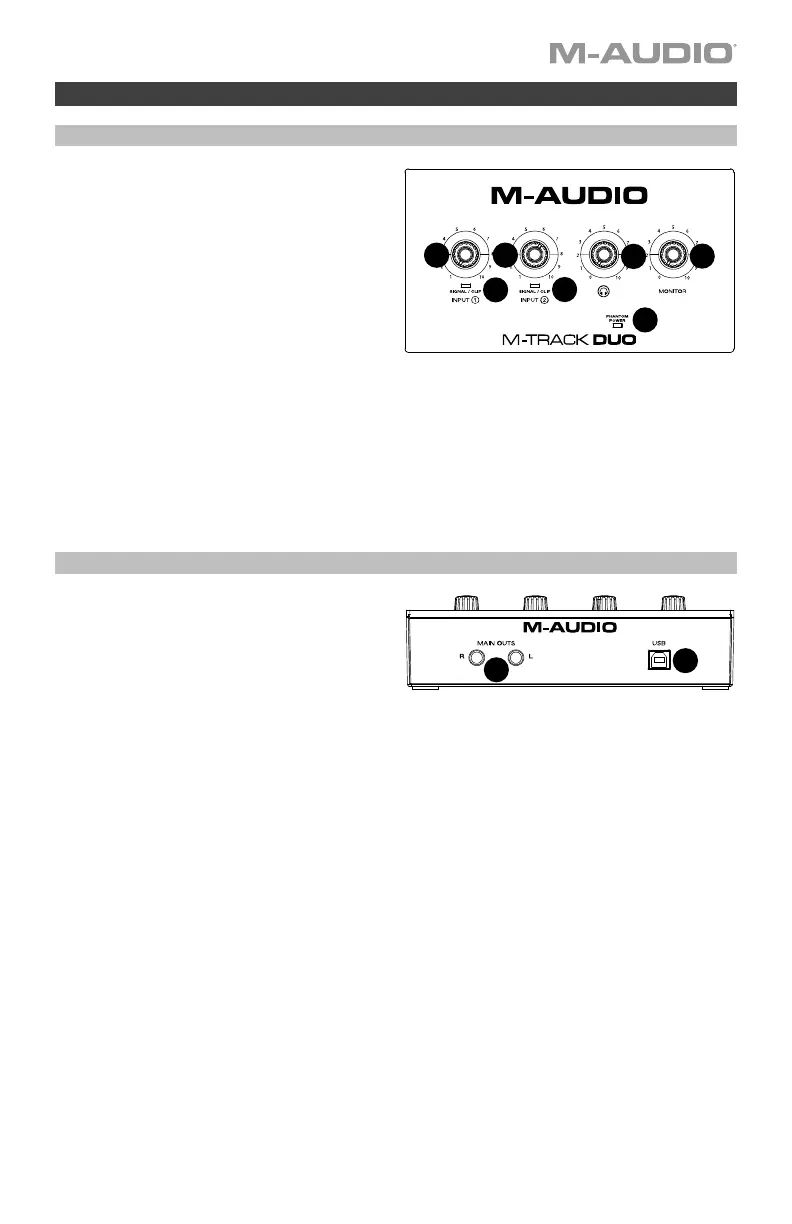

Top Panel
1. Input Gain: Adjusts the input's gain
level. Set this knob so the corresponding
Signal/Clip LED (located below the
knob) displays a "healthy" level during
performance—but not so high that the
LED "clips" or peaks, causing distortion
in the audio.
2. Signal/Clip LED: The LED will light up
green when an input signal is detected.
The LED will light up red if the signal
level is too high which may cause
distortion or “clipping”. If this occurs,
turn down the Input Gain and/or reduce
the output level from your sound source.
3. Headphone Level: Adjusts the output volume of the Headphone Output.
4. Monitor Level: Adjusts the output volume of Main Outputs, which should be connected
to your powered monitors or amplifier system.
5. +48V (Phantom Power) LED: Lights up when phantom power is engaged.
Rear Panel
1. USB Port (Type B): This connection will
allow you to send audio to and from a
computer. Use the included USB-B-to-
USB-A cable to connect the M-Track
Duo to a computer. The M-Track Duo
requires a USB 2.0 connection (or
higher).
2. Main Outputs: Use standard 1/4" (6.35
mm) TRS cables to connect these
outputs to your powered monitors,
amplifier system, etc. The mix you hear
from these outputs will be determined by
the Direct Mono/Direct Stereo/USB
Switch. The level of these outputs is
controlled by the Monitor Level knob.
1
2
1 1
2
2
3
4
5

M-Audio M-Track Duo Specifications

General

Type	Audio Interface
Number of Channels	2
Phantom Power	Yes
Sample Rate	48 kHz
Bit Depth	24-bit
Power Source	USB bus-powered
USB	USB 2.0
Inputs	2 x XLR/TRS combo
Outputs	2 x TRS
Headphone Output	1 x 1/4" TRS
Compatibility	Windows, Mac
Weight	1.1 lbs
