15

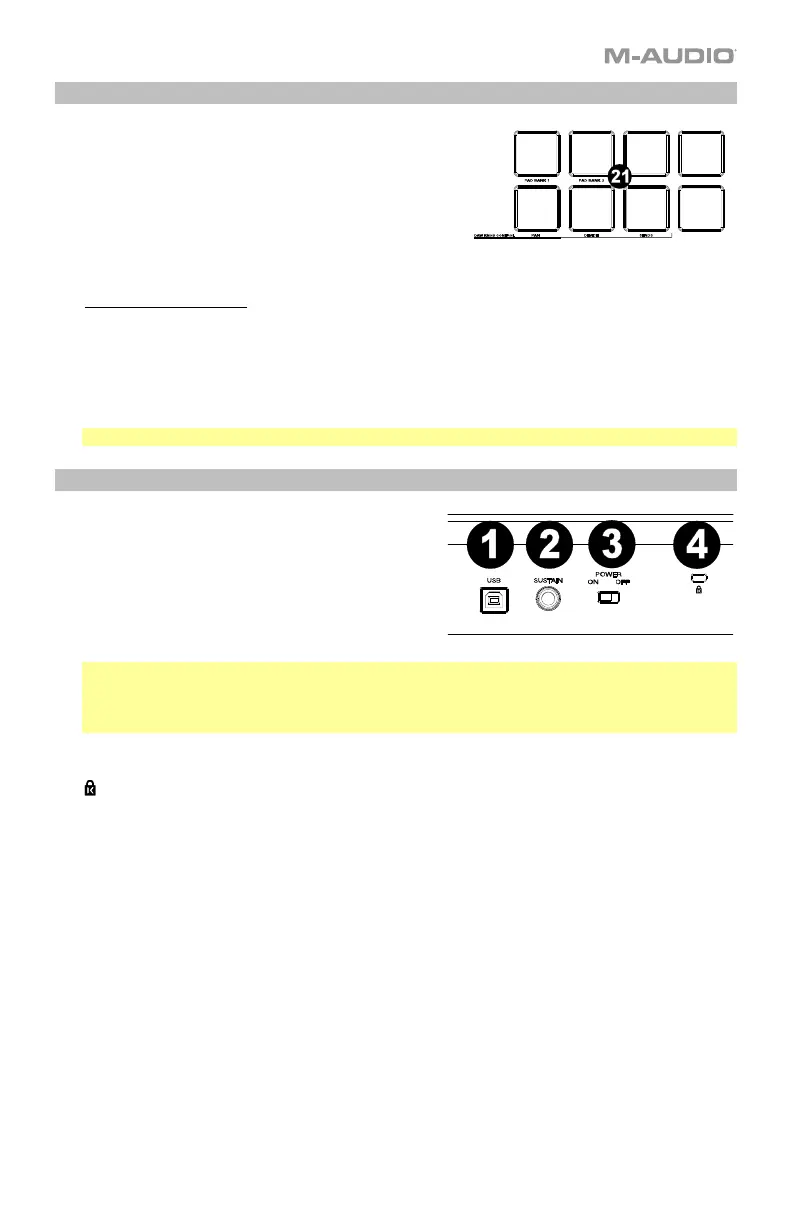

Pads
21. Pads 1-8: Press these velocity-sensitive pads to send
Note On/Off and velocity data when performing.
Hold SHIFT and press a pad to change to activate its
secondary function:
PAD BANK 1 (Pad 1): Select pad bank for all Pads 1-
8.
PAD BANK 2 (Pad 2): Select pad bank for all Pads 1-
8.
DAW KNOB CONTROL
Set all Knobs 1-8 to:
PAN (Pad 6): Each knob will pan the corresponding software track.
DEVICE (Pad 7): Each knob will control device controls of the corresponding software track.
SENDS (Pad 8): Each knob will control the level of the aux sends for the corresponding software
track.
Note: Not all knob functions will be available in every DAW.
Rear Panel
5. USB: The USB 2.0 port delivers power to the
keyboard and transmits MIDI data when connected
to a computer.
6. SUSTAIN: This input accepts a momentary-
contact foot pedal (not included). When pressed,
this pedal will sustain the sound you are playing
without having to keep your fingers pressing down
on the keys.
Note: The polarity of the sustain pedal is determined by the keyboard upon startup. When an
Oxygen 49 keyboard is powering up, the sustain pedal is assumed to be in the "up" (Off)
position. It is important that the sustain pedal is not pressed during startup, otherwise the pedal
will reverse its operation, and notes will sustain when the pedal is not pressed.
7. POWER ON/OFF: Use this switch to power the device on or off. When this switch is set to the
“on” position, Oxygen 49 is powered through the USB connection to your computer.
8. Kensington Lock: This connector is compatible with standard laptop-style Kensington
security cables for theft protection.
