EM-9502-A Rev.6 P. 2 / 5

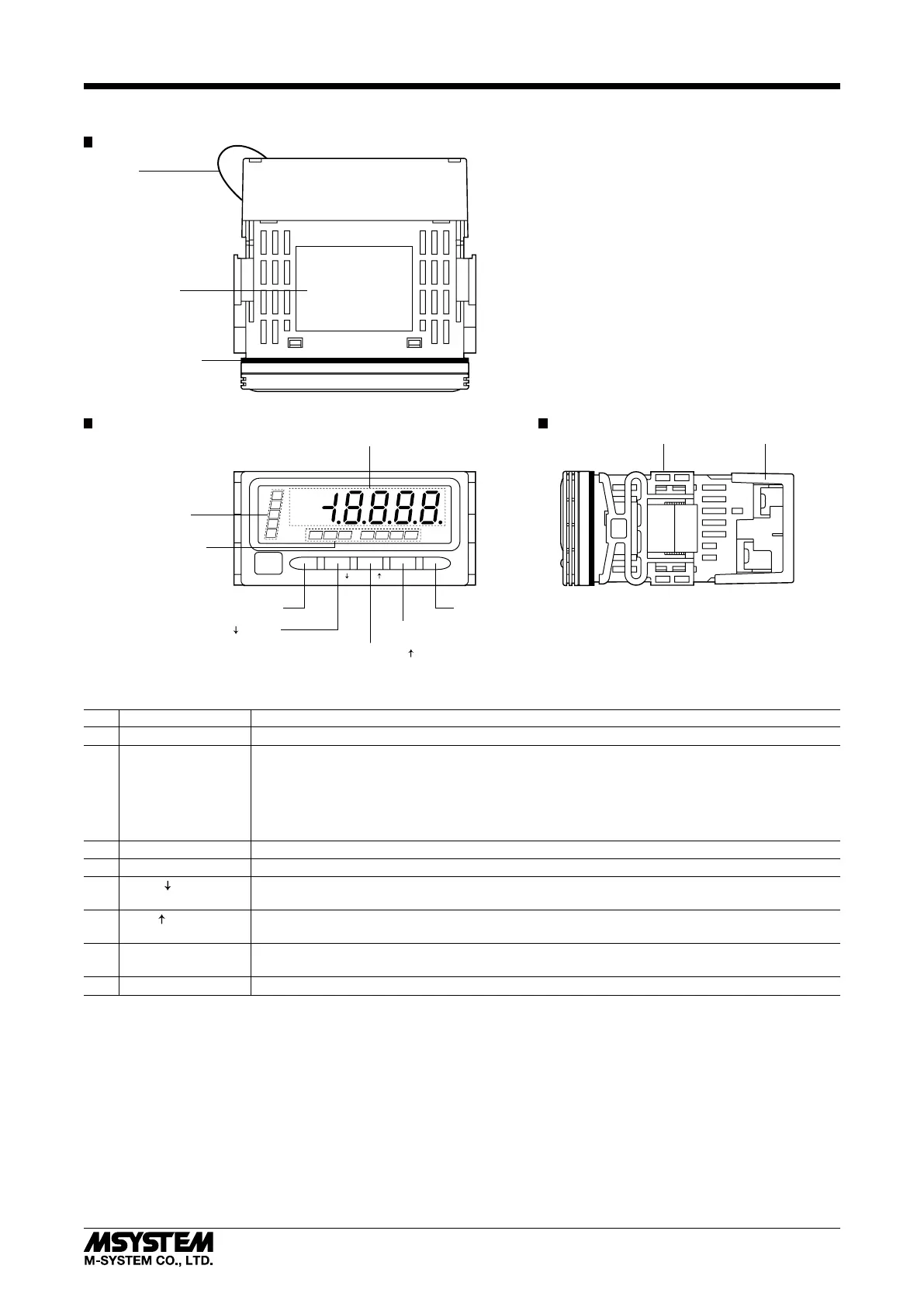

COMPONENT IDENTIFICATION
Specifications
Strap
Watertight Packing
n TOP VIEW
n FRONT VIEW n SIDE VIEW
Mounting Bracket Terminal Cover
(4) Max/Min Button
(5) Alarm/ Button
(6) Scale/ Button
(7) Shift Button
(8) Up Button
(1) Main Display
(2) Alarm Indicators
(3) Function Indicators
Alarm/ Scale/ Max/Min Shift Up
Zro
HH
H
P
L
LL
Spn D/P
TchFnc Min Max
• COMPONENT IDENTIFICATION
No. COMPONENT FUNCTION
(1) Main display Indicates present values, setting values and status of the unit.
(2) Alarm indicators *
1
Indicate alarm status of the input signal.
LL turns on when the LL alarm is tripped.
L turns on when the L alarm is tripped.
H turns on when the H alarm is tripped.
HH turns on when the HH alarm is tripped.
P turns on when none of the other alarms is tripped.
(3) Function indicators Indicate the status in each setting mode.
(4) Max/Min button Used to switch the main display to show the present values, maximum values or minimum values etc.
(5)
Alarm/
button
Used to confirm alarm setting value and to move on to the alarm and other setting modes; or to shift
through setting items in each setting mode.
(6)
Scale/
button
Used to move on to the scaling and other setting modes; or to shift through setting items in each set-
ting mode.
(7) Shift button Used to move on to the setting standby status of each setting mode and shift through display digits in
each setting item.
(8) Up button Used to change setting values, to execute/cancel Forced Zero or to select setting values.
*1. Only the ‘P’ indicator turns on with no-alarm-output type. ‘LL’ or ‘HH’ does not turn on with dual-alarm-output type.
All setpoints can be independently set either for Hi or Lo alarm trip.
