47LV
P. 2 / 18EM-9502-B Rev.3

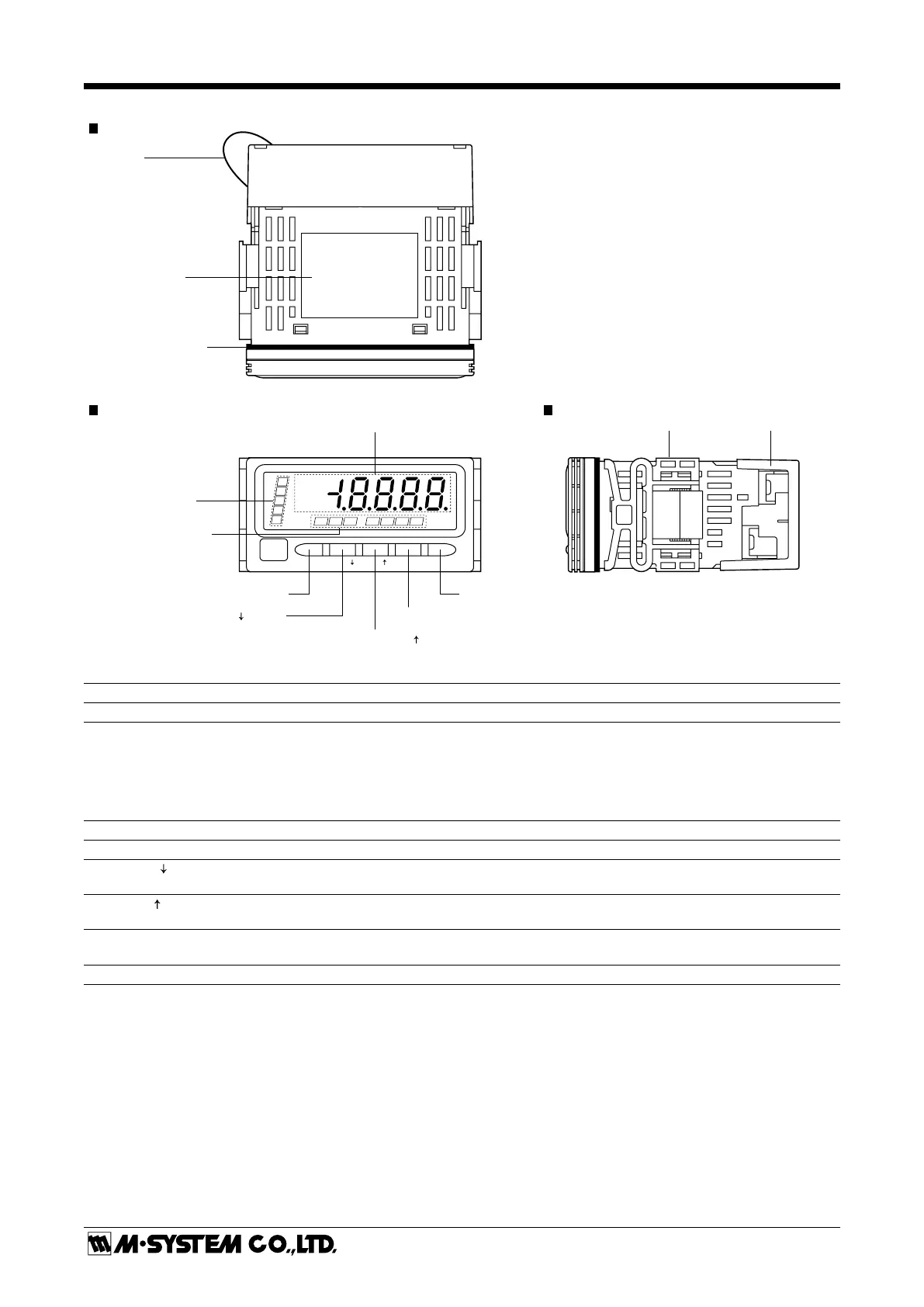

COMPONENT IDENTIFICATION
Specifications
Strap
Watertight Sealing
n TOP VIEW
n FRONT VIEW n SIDE VIEW
Mounting Bracket Terminal Cover
(4) Max/Min Button
(5) Alarm/ Button
(6) Scale/ Button
(7) Shift Button
(8) Up Button
(1) Main Display
(2) Alarm Indicators
(3) Function Indicators
Alarm/ Scale/ Max/Min Shift Up
Zro
HH
H
P
L
LL
Spn D/P
Tch Fnc MinMax
• COMPONENT IDENTIFICATION
No. COMPONENT FUNCTION
(1) Main display Indicates present values and setting values.
(2) Alarm indicators *
1
Indicate alarm status of the input signal.
LL turns on when the LL alarm is tripped.
L turns on when the L alarm is tripped.
H turns on when the H alarm is tripped.
HH turns on when the HH alarm is tripped.
P turns on when none of the other alarms is tripped.
(3) Function indicators Indicate the status in each setting mode.
(4) Max/Min button
Used to switch the main display to show the present values, maximum values or minimum values.
(5) Alarm/ button Used to move on to the alarm and other setting modes; or to shift through setting items in each
setting mode.
(6) Scale/
button Used to move on to the scaling and other setting modes; or to shift through setting items in each
setting mode.
(7) Shift button Used to move on to the setting standby status and shift through display digits in each setting
item.
(8) Up button Used to change setting values, to execute/cancel Forced Zero or to select setting values.
*1. Only the ‘P’ indicator turns on with ‘no alarm output’ option. For dual alarm type, ‘LL’ or ‘HH’ does not turn on.
To Next Page
