Installation
1. Caution
- Please keep 100mm distance between main module and enclosure structure for
maintenance and well-ventilation.
- Please avoid installation on the area as follows.
. Locations where the temperature changes drastically and condensation occurs
. Locations where the main unit is exposed to direct sunlight, vibration or impact.
. Locations where strong electrical or magnetic fields are generated.
2. Power Cable Wiring
- Input DC Voltage : Typically DC24V (20 ~ 28V)
- Please be cautious wiring +24V and GND on power supply terminals.
- Please separate power source cable from controller’s power cable or in/out cable.
- Please separate power source cable from communication cable

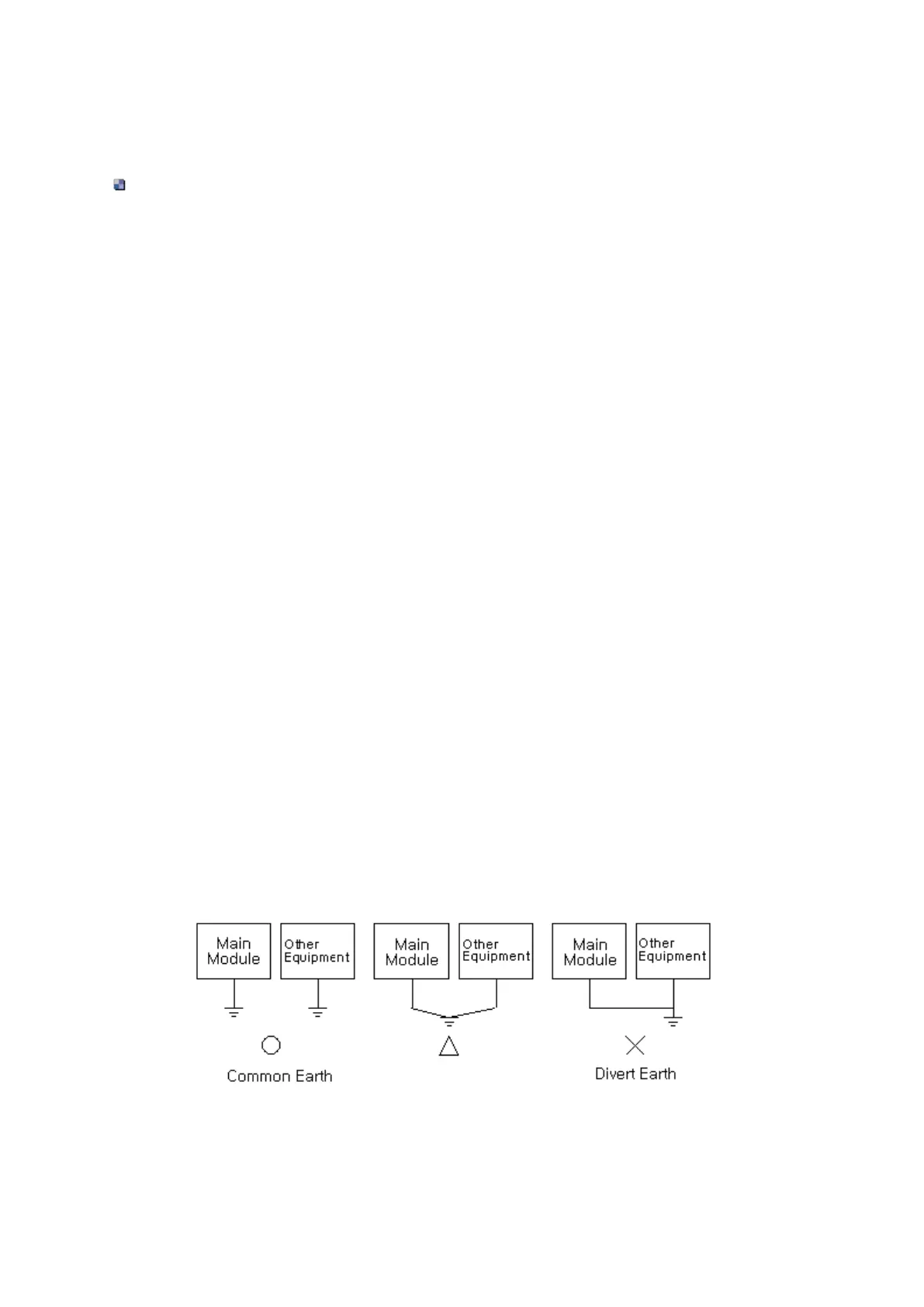

3. Earth Connection
- The FG and M2I port of the TOP main module should always be grounded using the
Class 3 Ground.
Failing to ground these ports sufficiently could cause electrical shock and malfunction.
- The cable for earth should be more than 2 ㎟.
- The earth point be close to the TOP main module and earth cable be short if possible.
