Main Module Menu Summary
1. Main Menu
- Functions : Controller Type, Communication Protocol, Version Info., Language Setting and
Time Setting.
* Time Data is retained minimum 1week by super capacitor without input power voltage.
2. Communication Setting
- Functions : Baud Rate, Data Bit, Stop Bit, Parity Bit, Signal Level, Station Num, Serial Timeout,
Send Wait, Communication Error Message Display, N:1 Setting.
3. Initial Setting
- Functions : Power On Mode, Initial Screen Number, Screen Save, Buzzer Sound, Start of Latch ,
End of Latch., Printer, Security Password, Touch Sensitivity, In Case of System Error,
LCD Brightness & Contrast, Default Setting.
4. Diagnosis
- Functions : Memory Diagnosis, Touch Key Diagnosis, Display Diagnosis,
Communication and Port Diagnosis
5. System Information
- Information of OS Version.
- Excluding Time data, you can have data of internal system buffer memory at the time of
quitting running. (* Data type is 16bit HEX)

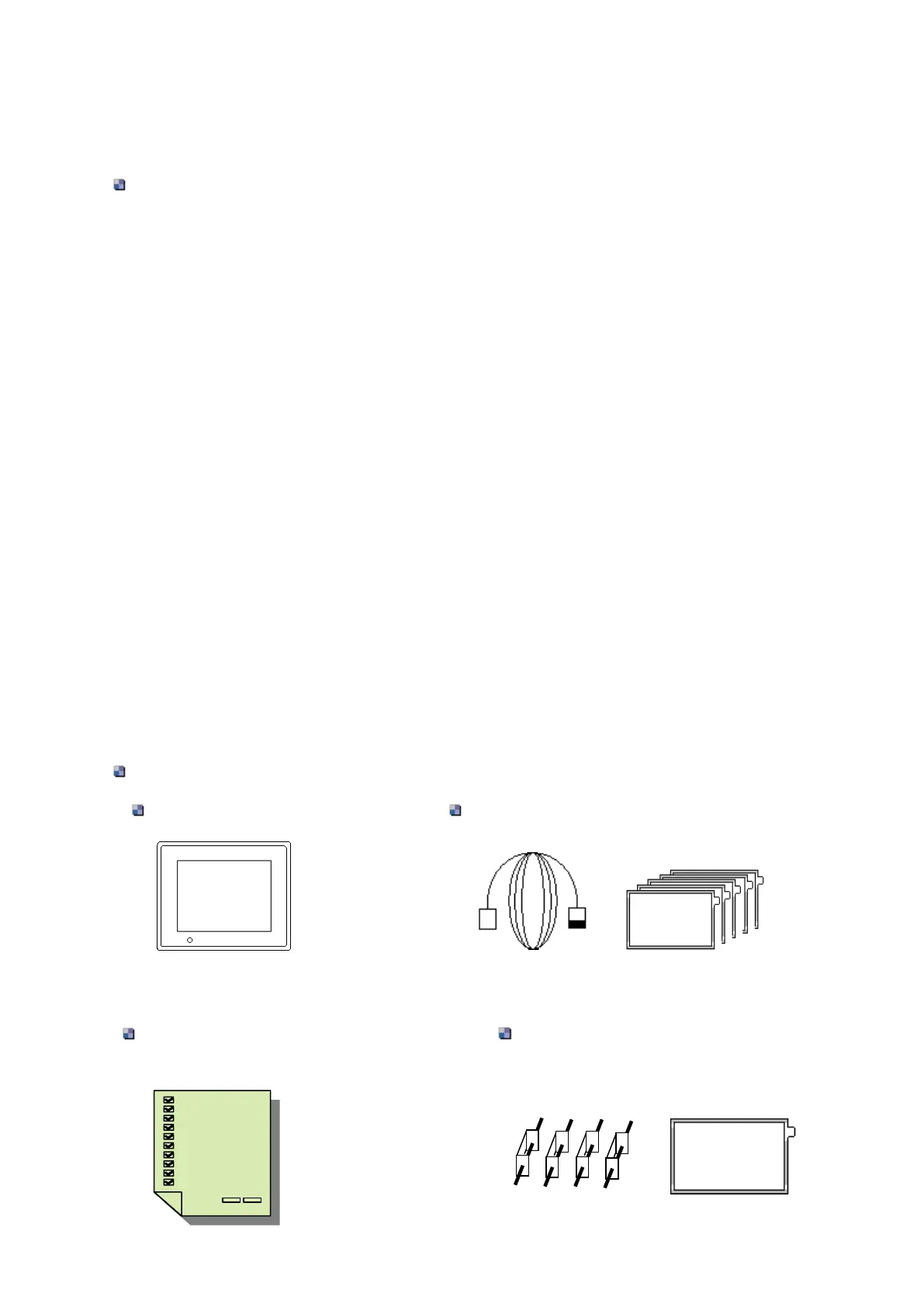

Package Contents
Main Module 1set Download Cable/ Protection sheet (option)
Main Module H/W Manual Clamp 4pcs / Protection sheet
Communication Cable Connection
