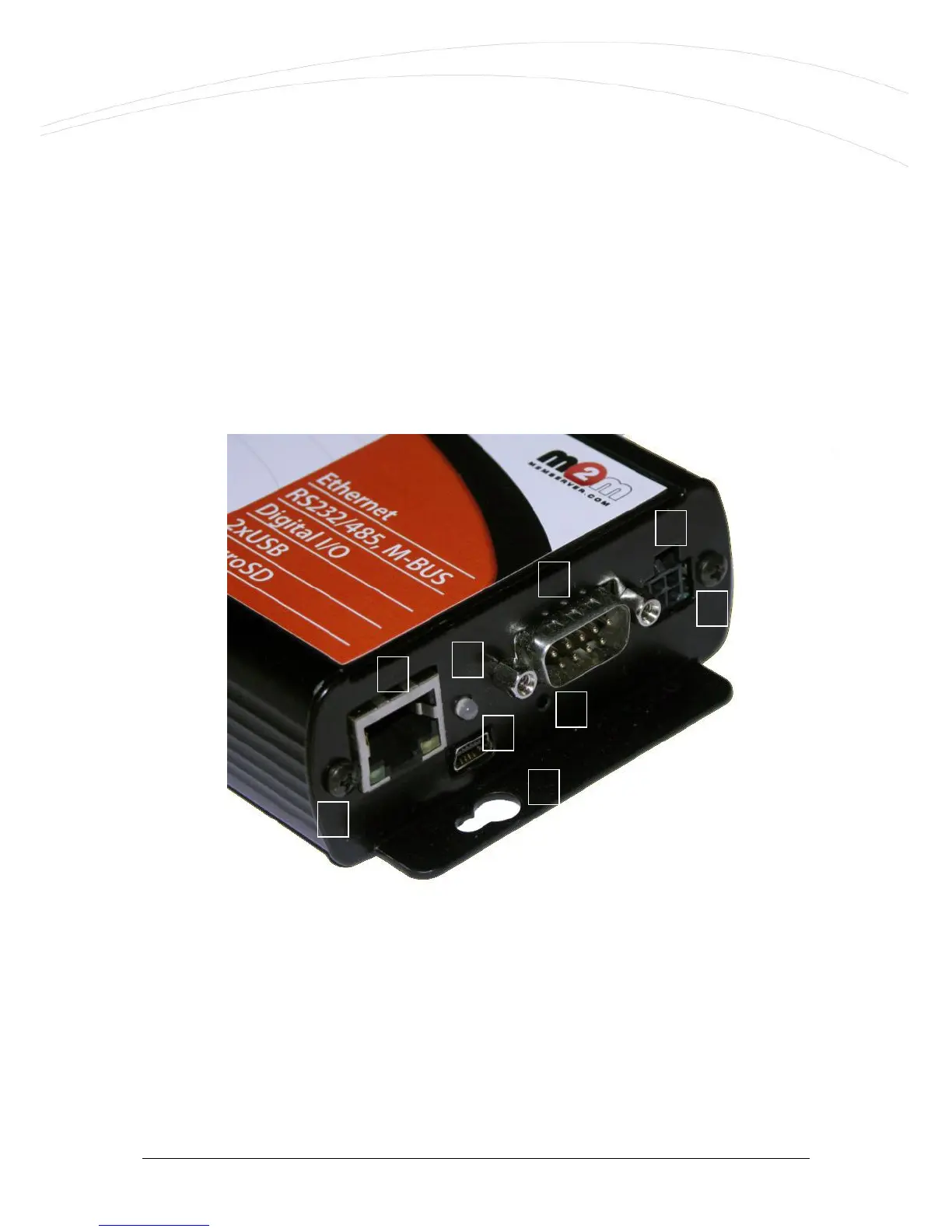

Back-side connectors
1- 10/100 MBit/s Ethernet connector (IEE 802.3 LAN/WAN RJ45 port)
2 – Status LED (bicolor: red/green; signal: PWR/LAN/WLAN)
3 – Mini-USB 2.0 connector for mini-USB device socket
4 – Serial port I/O socket (DSUB-9 (RS232))
5 – configuration reset button (under DSUB-9 connector) – to factory defaults
6 – power supply connector (Microfites, 4-pin)
7 - case fixing screw
8 – hard-wire mounting (C-slide)
