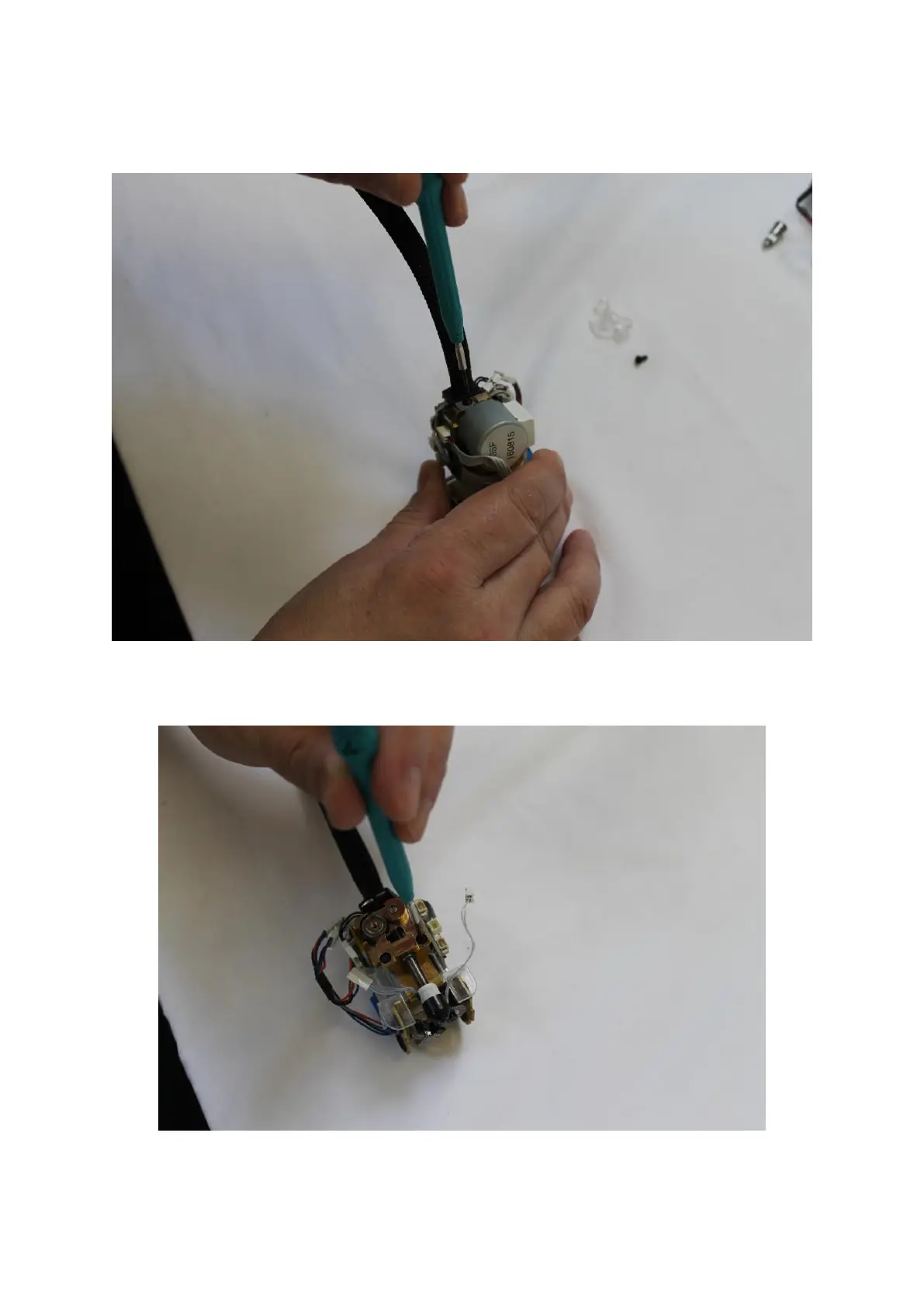

Step 12: Next, disengage the cable assembly from the extruder housing but taking off the
screw that sits on the top of the small sheet metal as shown in the picture below:
Step 13: Remove the two screws that joins the extruder housing to the X housing as shown in
the picture below:
