m3d PRO - Page 18

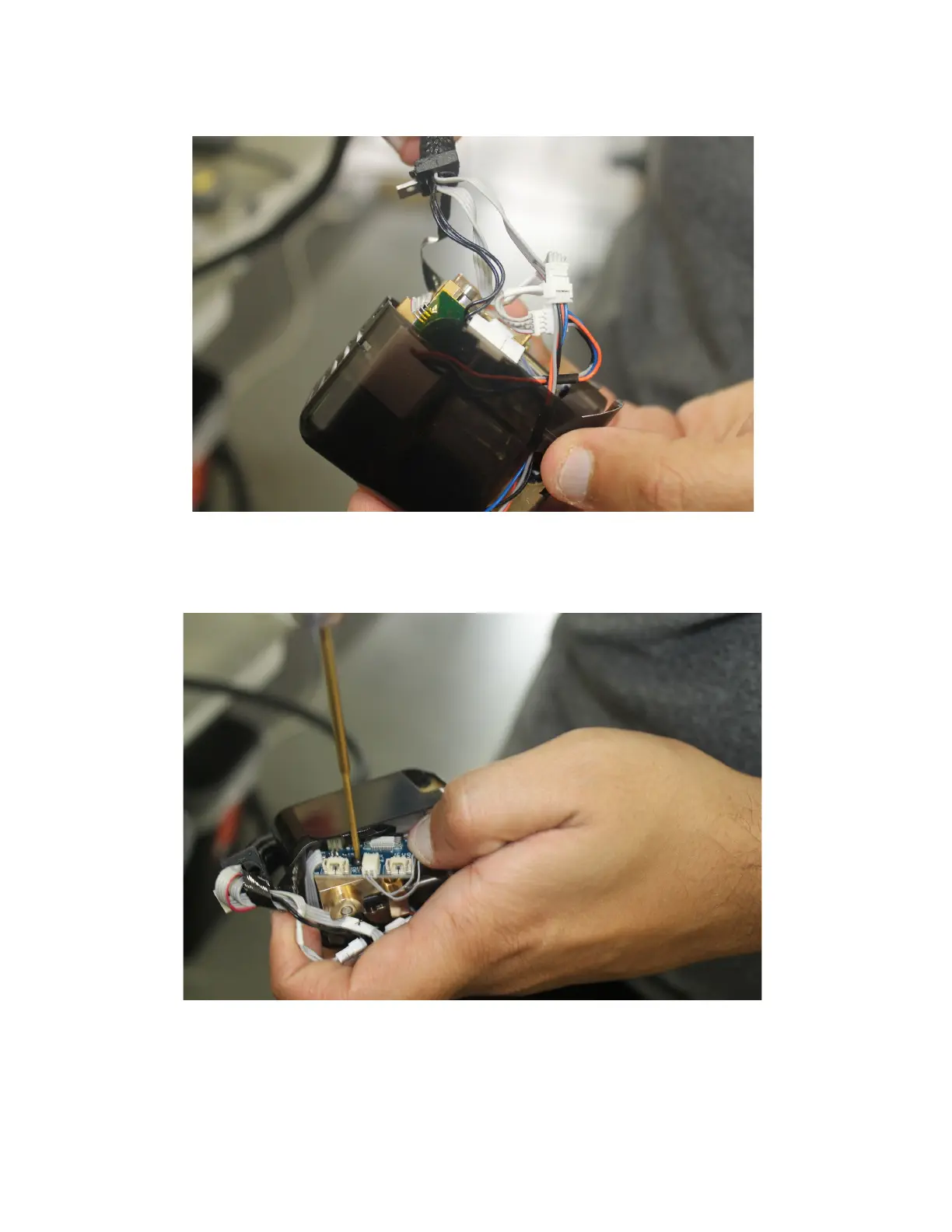

3. After removing the cable assembly, gently push the extruder housing out such you can
get access to the screw that holds the X board as shown in the picture below.
4. Once you remove the X board, very carefully remove the E housing out making sure
not to break the encoder wire that connects the X board to the E housing and X housing.
