m3d PRO - Page 23

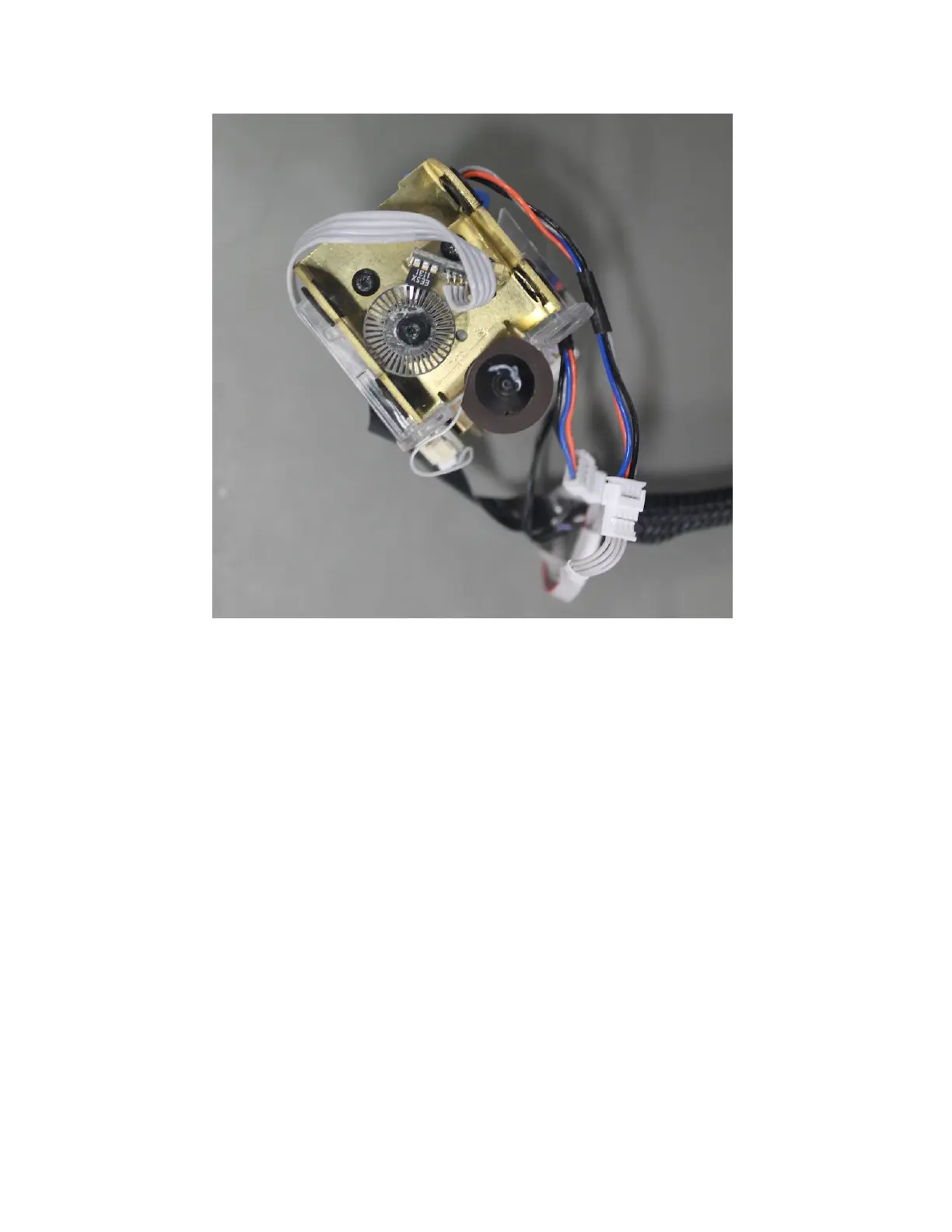

The following picture shows how the X encoder wheel is located between the X encoder. None of
the black taps should come in contact with the encoder wheel as this can cause the encoder
wheel to stall while the X motor is running which will in turn stall the X gear and hence the X axis.
