MAAX AKER BODYWRAP SYSTEM User Manual

BODYWRAP WHIRLPOOL
SYSTEM ASSEMBLY AND
OPERATION GUIDE
Step 4: To adjust directional flow of any
side jet, move the jet nozzle to the
desired position as shown in
Figure 7.
Step 5: To change the whirlpool action
during the system operating cycle,
adjust air control knobs. Opening
(turning counterclockwise) the air
control allows more air to be mixed
with the water coming out of the jet
nozzle for increased whirlpool
action. Closing (turning clockwise)
the air control reduces air at the jet
for less whirlpool action (see
Figure 5).
Step 6: The micro pulse back jets are
adjusted from only one of the air
control knobs.
Step 7: To change (increase or decrease)
the flow of the foot or side jet(s),
rotate the jet internal section
clockwise or counterclockwise until
desired flow is reached (see
Figures 8 & 9).
Step 8: Due to the size of the micro pulse
back jets, no flow adjustment is
provided. Pulse action of the back
jets are adjusted by the air control
settings.
Note: The range of the air control knob
from fully open to fully closed is 3/4 of
a complete revolution.
Step 9: Overall system flow can be adjusted
with the SELECTAFLOW™ knob by
turning to the H
igh, Medium or Low
setting (see Figure 10).
Step 10: Drain and thoroughly rinse the tub
and flush the whirlpool system after
each use to help reduce the buildup
of soap scum or body oils in the
system supply lines. Follow the care
and cleaning recommendations
listed in this guide.
Page 5
0511 10023064

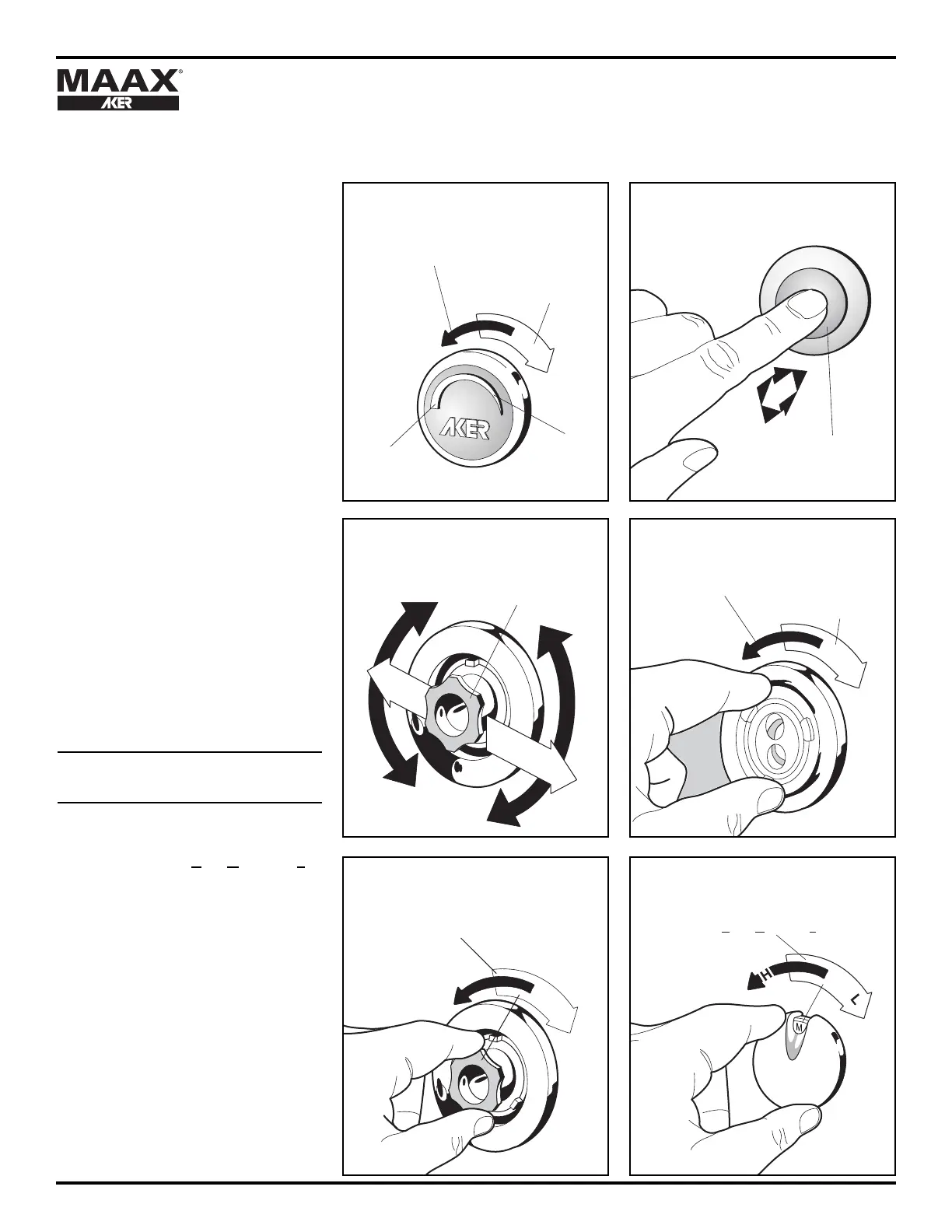

Figure 5 - Air Control Operation
Turn counter-clockwise to
increase water action.
Turn clockwise to
reduce water actio
n
Thin line,
less air
Thick line,
more air
Figure 6 - On / Off Button
Gently press button
and release to start
or stop system.
Figure 9 - Side Jet Flow Control
Rotate nozzle either direction
until desired flow rate is reached.
Figure 10 - SELECTAFLOW
™
Control
Rotate knob to achieve desired flow
setting. (High-Medium-Low)
Figure 7 - Side Jet Directional Control
Move jet nozzle to
desired direction
Figure 8 - Foot Jet Flow Control
Rotate center 1/2 turn
counter clockwise to
open jet.
Rotate center
1/2 turn clockwise
to close jet.
