SPA COMPONENTS

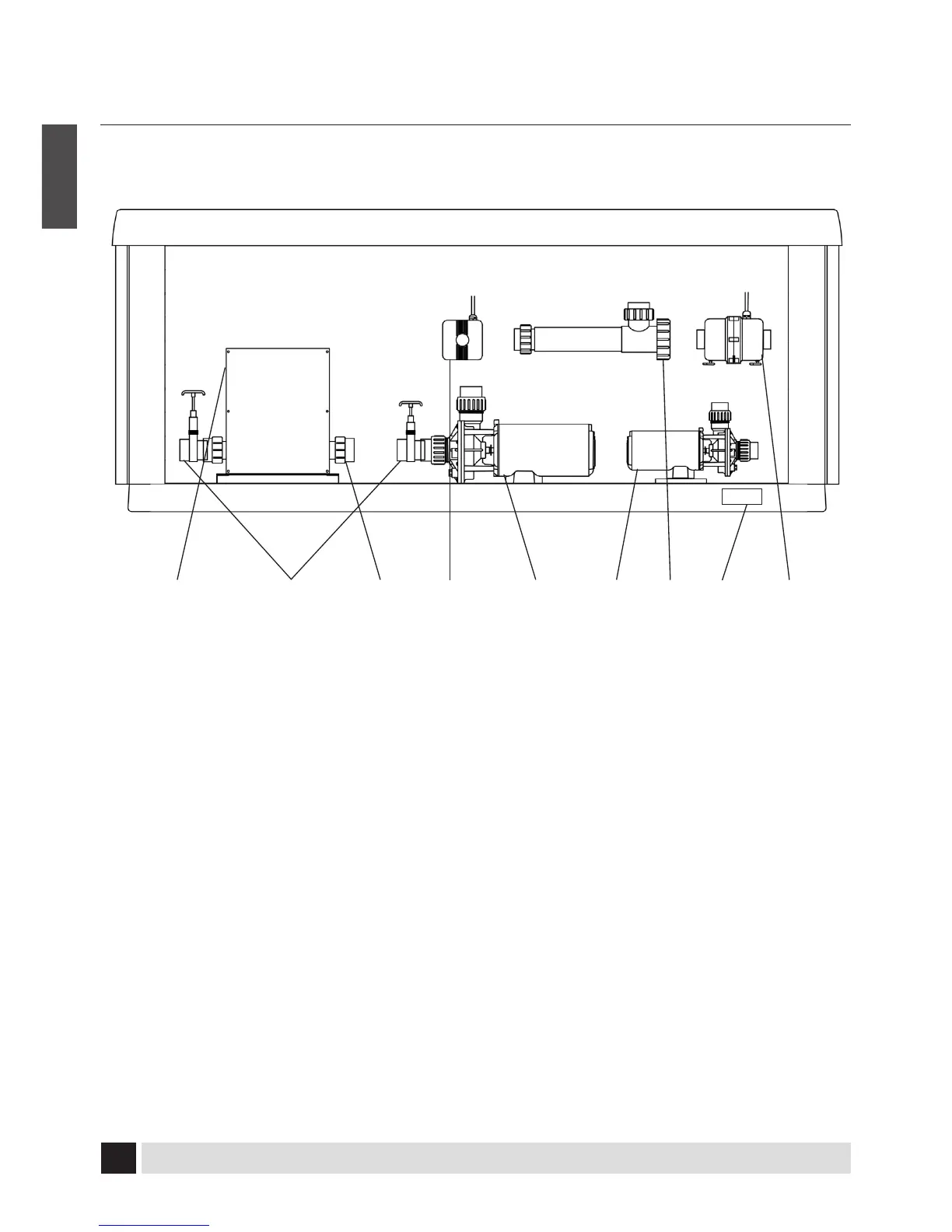

Reference only. Equipment is not always as shown.
A. Pumps (one pump or more,
depending on model): Low speed for
ecient water circulation during ltration
and heating; high speed for maximum
action of the jets. The pump functions are
activated by topside controls.
B. Manufacturer’s Identication Label:
Contains identication information
for warranty service (serial number, model
number, etc.) and electrical information
(ampere rating and ampere requirements).
C. Slice Valve: Used to shut o water ow
from the spa to the equipment while
servicing. Quantity will vary depending
on model. All should be open during
normal operations.
D. Electrical Connections: Electrical inputs/
wires for the unit connect here.
E. Heater Assembly: Thermostatically
controlled and equipped with an
overheat safety shut-o.
F. Circ Pump (Optional)
G. Ozone Generator (Optional)
H. UV System (Optional)
I. Blower (Optional)
Note: Not consumer serviceable parts.
Do NOT attempt to service any of these
components yourself. Contact your dealer
for assistance.
