Ingeniería de Servicio

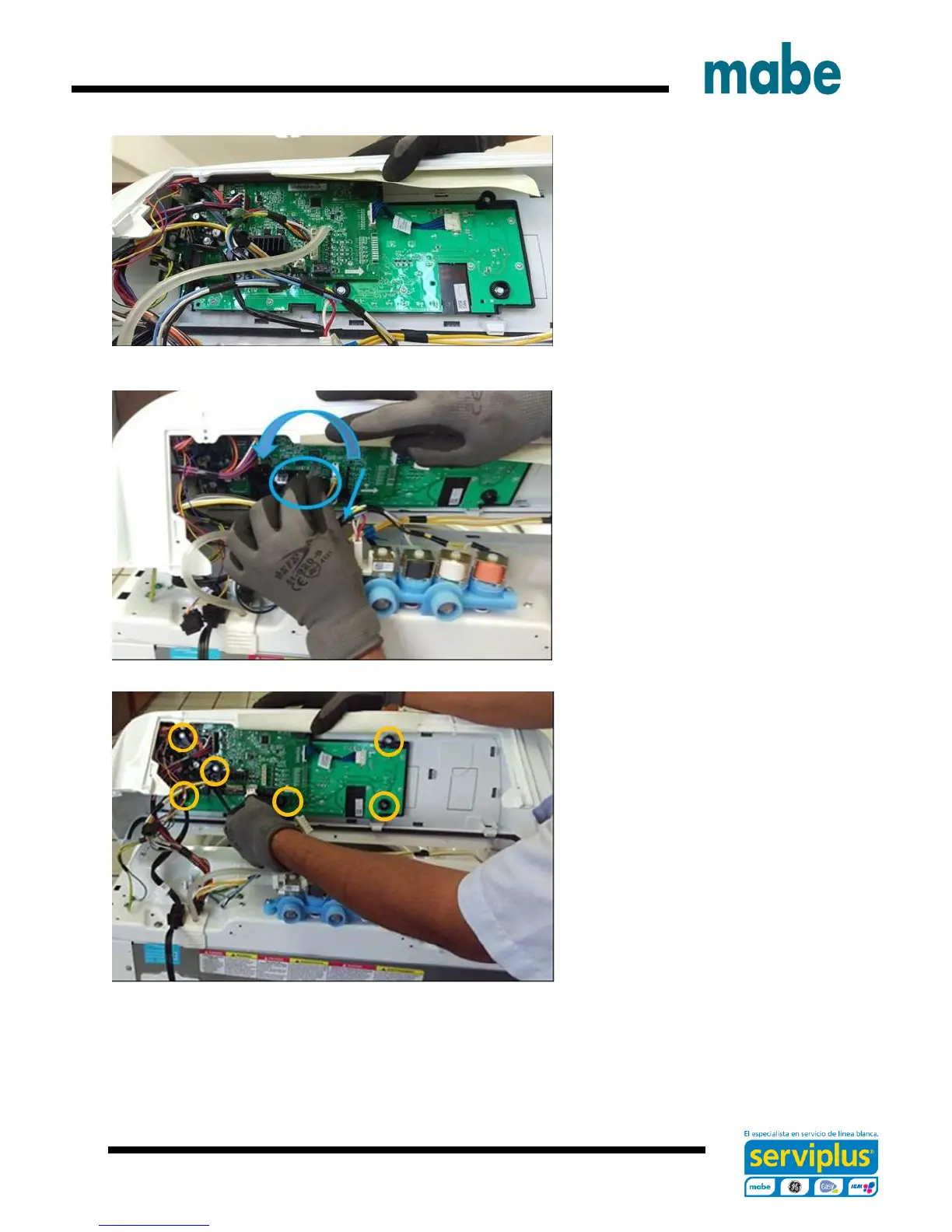

Grasp the control panel and
push it a little toward the front of
the washer in order to see the
pressure tube.
To disengage the pressure tube
from the control board, grasp the
tube where it connects to the
pressure sensor on the board.
Twist the tube while pulling it off
the sensor
IMPORTANT.- Pressure tube
should not be handled vertically
or horizontally as there is a risk
of damage to the pressure
switch, only must disengage as
indicated above.
Disconnect connectors from the
control board and remove six ¼
in. hex screws securing the
control board bracket to the
control panel assembly and
remove.
IMPORTANT.- When reinstalling the control panel assembly, ensure that all ground
wires are reconnected and tested for proper continuity to the ground terminal on the
power cord.
To Next Page
