Control Panel Assembly Removal
To remove the control panel assembly, first remove the lid assembly.

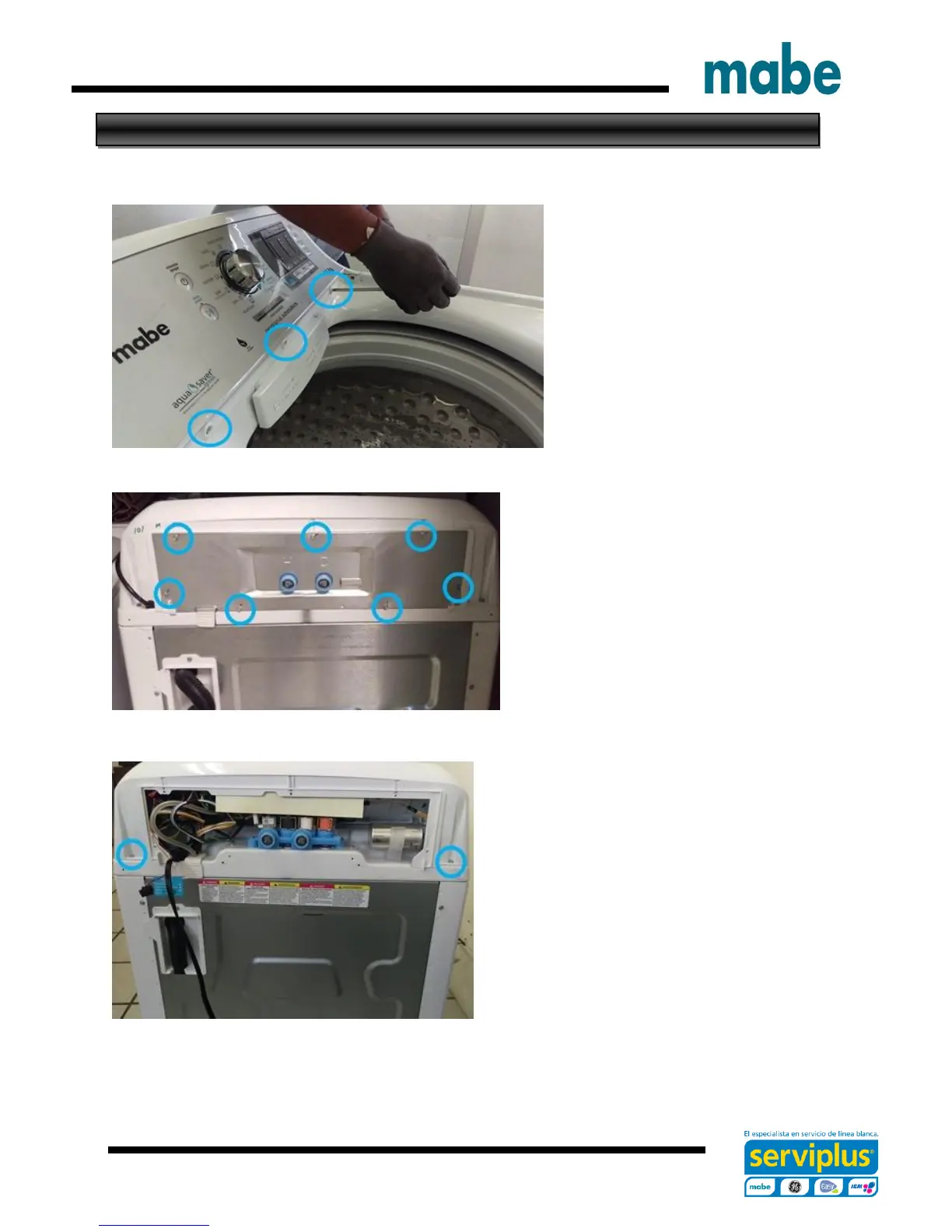

Remove the three Philips head
screws that secure the control
panel assembly to the top cover
at front.
Remove the seven ¼ in. hex head
screws from the back panel and
remove it.
Remove the two ¼ in. hex head screws
from the rear corners on the control panel
IMPORTANT.- Do not move the control panel until disengaging the pressure tube from
the control board, otherwise the pressure sensor could be damaged.
