mabe MMT18HDBWCAM8 User Manual

76
256
140

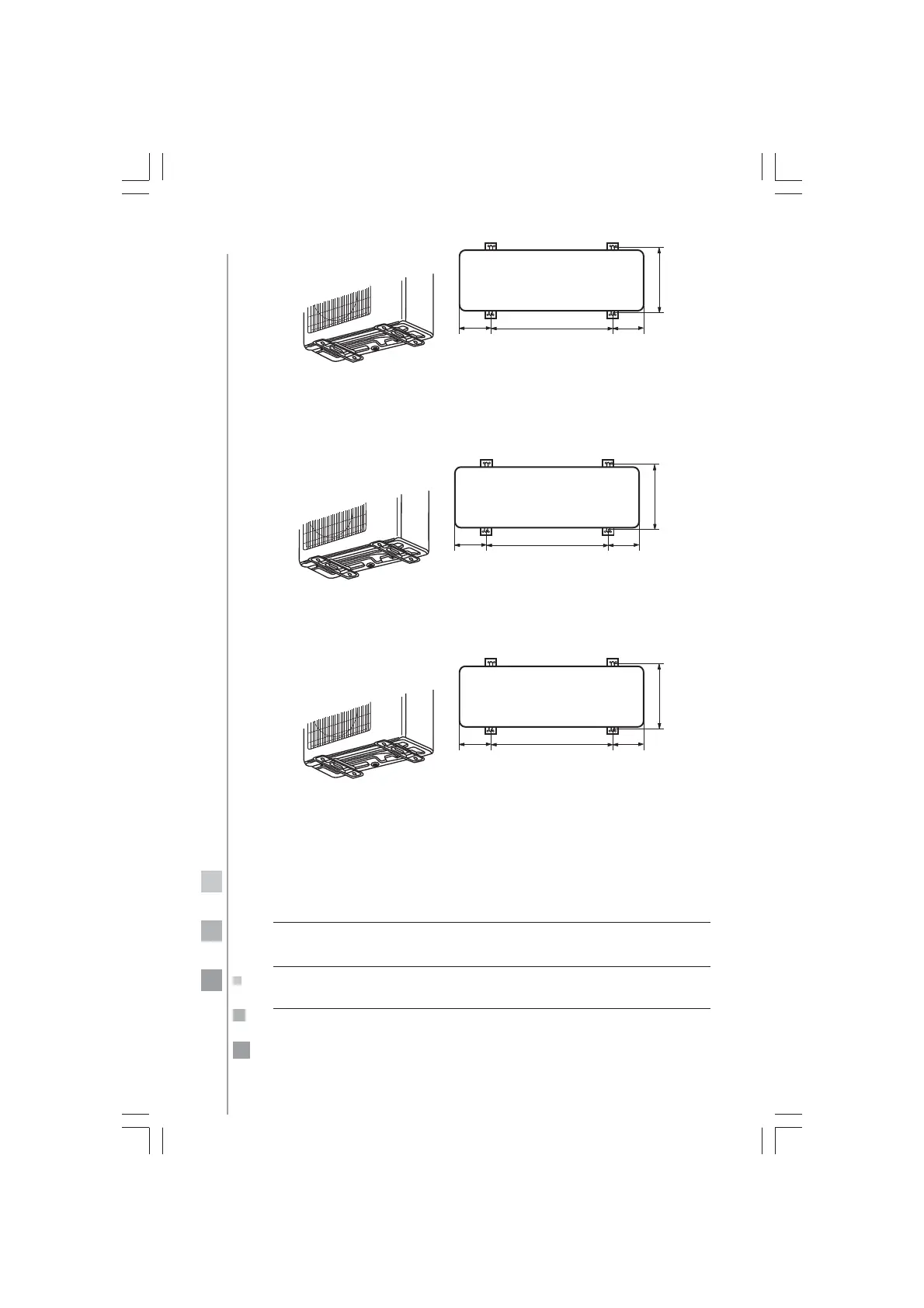

Outdoor unit floor fixing dimensions.
Units in mm
500 140
For 9 000 BTU/h, 12 000 BTU/h
and 18 000 BTU/h systems
319,5
113,5
Outdoor unit floor fixing dimensions.
Units in mm
583 113,5
For 24 000 BTU/h systems
317
130
Outdoor unit floor fixing dimensions.
Units in mm
500 150
For 24 000 BTU/h systems
selection of pipes
Liquid pipe
(diameter)
Gas pipe
(diameter)
9000 and some
12000 BTU
systems
24000 BTU
systems
6,35 mm (1/4") 6,35 mm (1/4")
9,52 mm (3/8") 15,88 mm (5/8")
NOTE: The thickness of the pipe must be 0,8 mm at least.
18000 and
some 12000
BTU systems
6,35 mm (1/4")
12,7 mm (1/2")
In order to know the pipe diameter of the acquired model, check
the model label located on one side of the unit.

mabe MMT18HDBWCAM8 Specifications

General

Type	Air conditioner indoor unit
Air filter	Yes
Indoor unit depth	230 mm
Indoor unit width	997 mm
Indoor unit height	322 mm
Indoor unit weight	12400 g
Indoor unit package depth	329 mm
Indoor unit package width	1085 mm
Indoor unit package height	403 mm
Indoor unit package weight	14800 g
