77

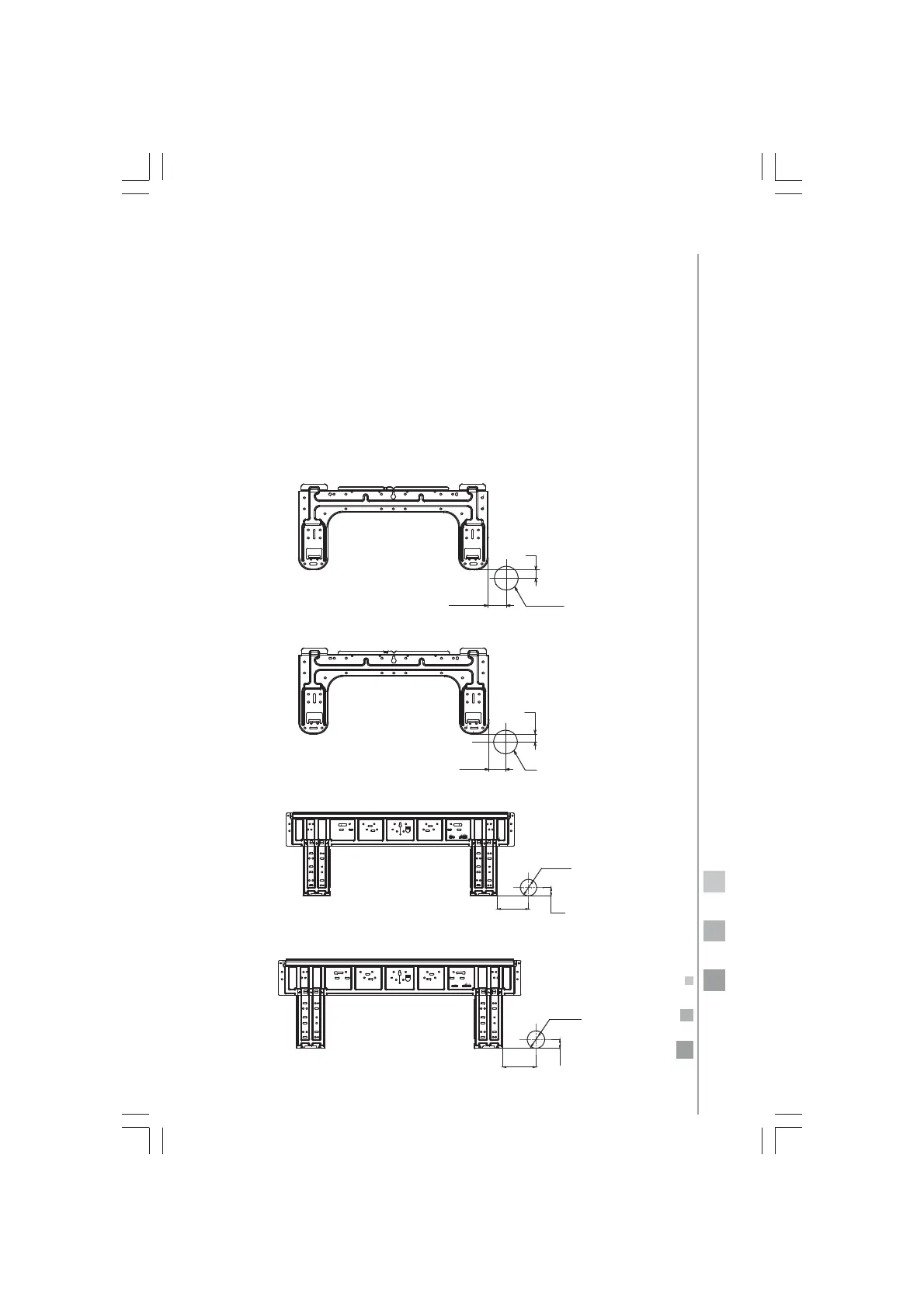

A = 113 mm
30 mm
B = 60 mm Ø
A = 120 mm
30 mm
B = 60 mm Ø
A = 41 mm
20 mm
B = 60 mm Ø
A = 45 mm
21 mm
B = 60 mm Ø
indoor unit
1. Fitting of the mounting plate and positioning of the wall
hole.
1. Carry out based on the neighboring pillars or lintels, a proper lev-
eling for the plate to be fixed against the wall, then temporarily
fasten the plate with one steel nail.
2. Check again the proper level of the plate by hanging a thread
with a weight from the central top of the plate, then fasten se-
curely the plate with the attachment steel nail.
3. Find the wall hole location "A" using a measuring tape.
When the mounting plate is first fixed
For 9 000 BTU/h systems
For 12 000 BTU/h systems
For 18 000 BTU/h systems
For 24 000 BTU/h systems

mabe MMT18HDBWCAM8 Specifications

General

Type	Air conditioner indoor unit
Air filter	Yes
Indoor unit depth	230 mm
Indoor unit width	997 mm
Indoor unit height	322 mm
Indoor unit weight	12400 g
Indoor unit package depth	329 mm
Indoor unit package width	1085 mm
Indoor unit package height	403 mm
Indoor unit package weight	14800 g
