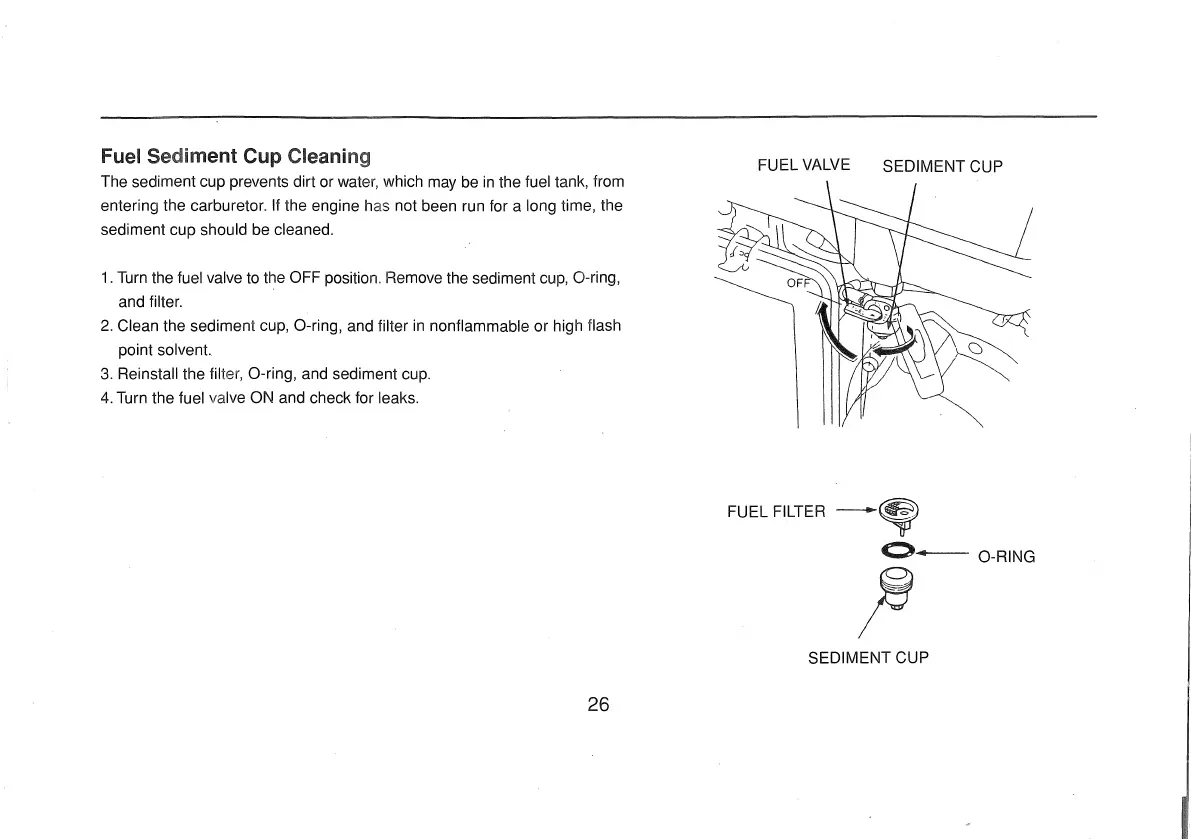

Fuel Sediment Cup Cleaning
The sediment cup prevents dirt or water, which may
be
in
the fuel tank, from
entering the carburetor.
If the engine has not been run for a long time, the
sediment cup
should be cleaned.
1.
Turn
the fuel valve
to
the OFF position. Remove the sediment cup, 0-ring,
and
filter.
2.
Clean the sediment cup, 0-ring, and filter
in
nonflammable or high flash
point solvent.
3.
Reinstall the filter, 0-ring, and sediment cup.
4.
Turn the fuel valve
ON
and check for leaks.
26
FUEL
VALVE
SEDIMENT CUP
FUEL FILTER
-~
0-o-RING
J
SEDIMENT CUP
