JSA350LR-LE 7 Rev. 10/05/17
Item No. Part No. Description Qty.
1 RS35T01 Star Clip 2
2 RS35T02 Washer 2
3 RS35B03A Front Wheel 2
4 Side Plate Assembly 1
5 RS35005 Rear Caster Assembly
(Incl. #6 & 7 (1) ea.) 2
6 RS35T08 Hex Nut (M16) (Incl. #7) 4
7 Spring Washer (16) 4
8 Retaining Ring (30) 2
9 Bolt (M12x25) 4
10 Spring Washer (12) 4
11 Bolt (M5x16) 4
12 RS35B11 Yoke Retaining Bolt (Incl. #13) 2
13 Spring Washer (18) 2
14 RS35T20MC Bumper 1
15 RS35T17MC Handle Upper 1
16 RS35THB Handle Button 1
17 RS35T15MC Handle Lower 1
18 RS35T13 Set Screw - Handle Yoke 1
19 RS35011MC Handle Yoke 1
20 Retaining Ring (12) 1
21 Roller 1
22 Pull Rod 1
23 RS350LR23 Power Unit Assembly 1
24 RS35T18 Universal Joint Assembly 1
25 RS35T19 Return Spring 2
26 Cover Plate 1
27 Lift Arm Rod 1
28 Retaining Ring (25) 2
29 RS35T06R Block Linkage (Incl. #28 & 30) 1
30 Pin (4x55) 1
31 RS35T12 Grease Fitting 1
32 Lift Arm Assembly 1
33 Bolt for Long Rod 2
34 Long Rod 2
35 RS35T04 Retaining Ring (16) 2
36 RS35017MC Saddle 1
37 RS35018 Saddle Bolt 1
38 RS35019MC Rubber Saddle Cover 1
RS350LRLEPLK Product Label Kit (Not Shown) 1
JSA350LR Power Unit Assy.
Item No. Part No. Description Qty.
1 * Lower Gasket 1
2 Reservoir Tube 1
3 * Upper Gasket 1
4 * O-Ring (29.6x3.5) 1
5 Cylinder Nut 1
6 Ram 1
7 Retaining Ring (30) 1
8 Ram Bearing 1
9 * Gasket 1
10 * O-Ring (31x4.6) 1
11 Cylinder 1
12 * Cylinder Brass Washer 1
13 Hydraulic Block 1
14 * Steel Ball (4) 1
15 * Plug 1
16 * Relief Valve Spring 1
17 Relief Valve Bolt 1
18 * O-Ring (7.1x1.8) 3
19 RSOFS19 Power Unit Oil Fill Screw
(Incl. #18) 3
20 * Steel Ball (5) 4
21 * Brass Washer 1
22 Small Pump Housing 1
23 * PU Y-Cup Seal 1
24 * Back-up Ring (15x10.6x1.25) 1
25 Small Pump Piston 1
26 Spring 1
27 RSDC15 Dust Cover 1
28 Spring Cap 1
29 RSRR16 Retaining Ring (15) 1
30 RS35T18 Universal Joint Assembly 1
31 * Steel Ball (6) 2
32 Bolt (M6) 1
33 * Steel Ball (7.5) 1
34 * Relief Valve Spring 1
35 * Steel Ball (8) 1
36 Relief Valve Spring 1
37 * Brass Washer 1
38 Large Pump Housing 1
39 * O-Ring (26.4x2.65) 2
40 Large Pump Piston 1
41 Large Spring 1
42 RSDC22 Dust Cover 1
43 Spring Cap 1
44 Retaining Ring (31) 1
* Repair Kit: RS350LRRK. Only items identified by part number are available for purchase.

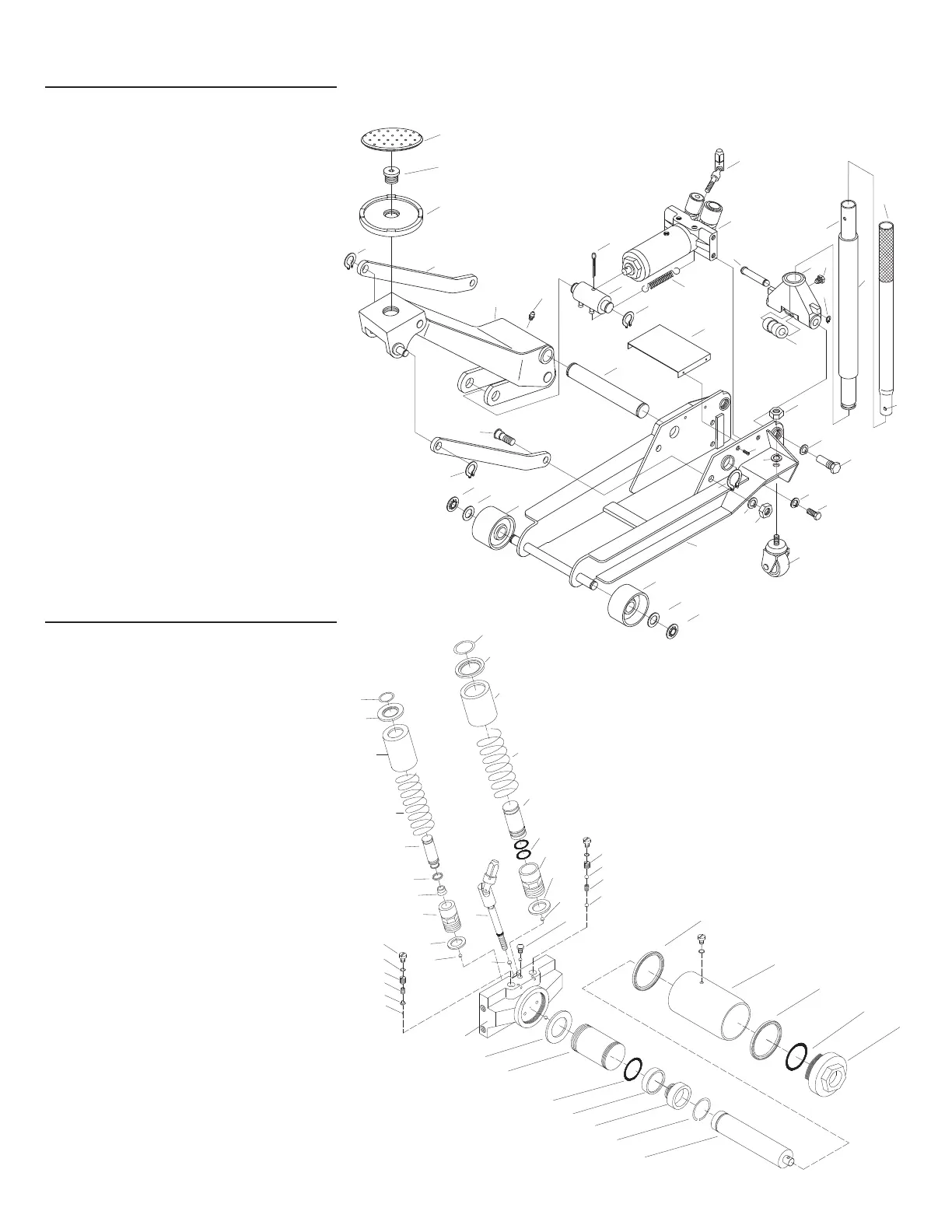

PARTS LIST AND DIAGRAM
38
37
36
34
32
31
33
4
4
6
7
8
7
6
11
10
13
12
16
9
5
1
1
2
2
3
3
30
29
28
25
22
23
24
26
21
18
19
17
14
15
20
27
35
JSA350LR-LE
3.5 TON
CAPACITY FLOOR JACK - LIMITED EDITION
DRAGSTER GRAPHICS
44
43
42
41
40
39
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
1
2
3
4
5
38
37
31
30
31
32
33
34
35
36
