Online Mode
In online mode, the wrench is paired to a device. The APP is
open andconnected.
1. This mode accesses the advanced functionality of thewrench.
2. Follow instructions on the APP to set and control thewrench.
Function Availability
Function Manual (Offline) APP (Online)
Set
NO
(can perform the last
sequence set online)
Device
Angle YES YES
Haptic YES YES
Target YES YES
Record YES (up to 500 cycles) YES
Find Me NO YES
Tightening

WARNING: Torque continues to climb during the
application of angle. It is possible to exceed the
maximum rated torque capacity of the wrench during
angle. Ensure the wrench has sufficientcapacity.

WARNING: Failure to follow the warnings and
instructions listed below may result in electric shock,
fire and/or seriousinjury.

WARNING: Do not position the wrench so that it is
difficult to operate the ratchetaccessory.

SHOCK HAZARD. To protect against risk of electrical
shock, do not expose wrench to water or otherliquids.
1. Set the desired target torque either using offline or
online mode
2. Apply torque in the specified direction ofrotation.
3. Refer to the Torque Status table for details on the
feedback provided
NOTE : For single pass torque and angle sequences, the
target is only achieved after the completion of the angle
phase. Once the target torque is achieved the wrench
automatically switches to angle. Angle count only
increments when torque is applied. The wrench will click to
indicate angle phase iscomplete.
Applying Torque

WARNING : Familiarise yourself with operation and
feedback beforeuse.
1. Ensure the socket is firmly and securely connected to
the fastener and wrench.
2. Hold the grip with one hand. Do not use accessories or
anextension.
3. Using smooth effort, pull the wrench at 90 degrees to
the handle.
4. Pay attention to the target torque and status lights.
NOTE : Haptic vibrate will warn when approaching target.
Stage 1 is soft. Stage 2 is insistent and indicates target
isclose.
5. The wrench will click at 100% of the target value.
6. Stoptightening.
Cleaning

WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap. Never let any liquid
get inside the tool; never immerse any part of the tool
into aliquid.
Accessories

WARNING: Since accessories, other than those
offered by Mac Tools, have not been tested with this
product, use of such accessories with this tool could
be hazardous. To reduce the risk of injury, only Mac
Tools recommended accessories should be used with
thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact Mac Tools, 701East Joppa Road,
Towson, MD 21286, call 1-800-662-8665 or visit our website:
www.mactools.com.
Interchangeable Ratchet Accessory
(Fig.H)
The interchangeable ratchet accessory
3
can be removed
for storage or to change to a different drivesize.
1. To remove the interchangeable ratchet accessory
3
from the wrench, use a small pick or screwdriver to
release the detent pin
25
as shown in Fig.H.
2. Remove the interchangeable ratchet accessory
3
and
replace it with a different drive size interchangeable
ratchet accessory (sold separately).
3. Ensure the detent pin
25
is fully engaged in the detent
slot
26
before using thewrench.

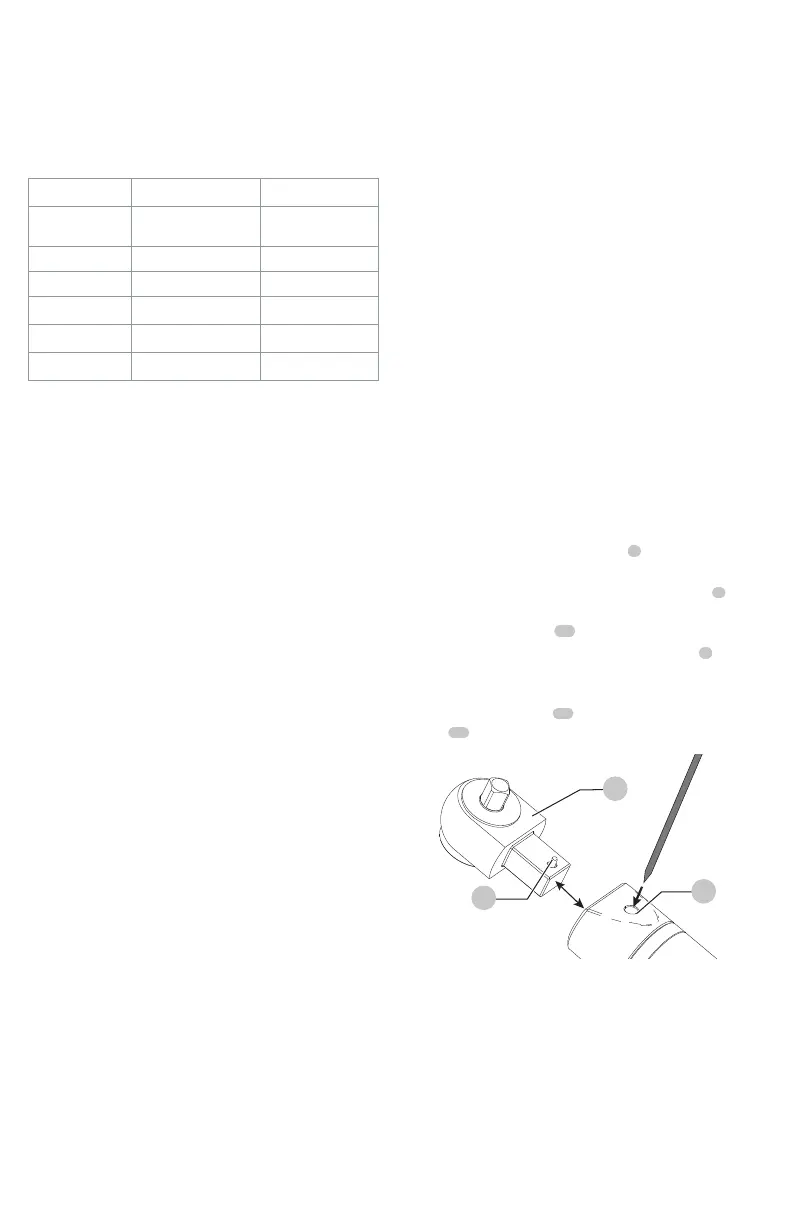

Fig. H
25
26
3
