MachMotion 2000 Series - Motor Control Setup; Motor Direction, Velocity, and Acceleration; Unit Calibration

Cable
Function
Blue EtherCAT Cable
Connection to EtherCAT Network (EtherCAT Servo Drives)
Green Ethernet Cable
Connection to Ethernet IP Network (VFD, PLC, Motion Control)
Blue Ethernet Cable
Internet
Black Cable
Control Power
Grey 2 Conductor Cable
E-Stop *
*Additional Estop buttons must be wired in series with this one.

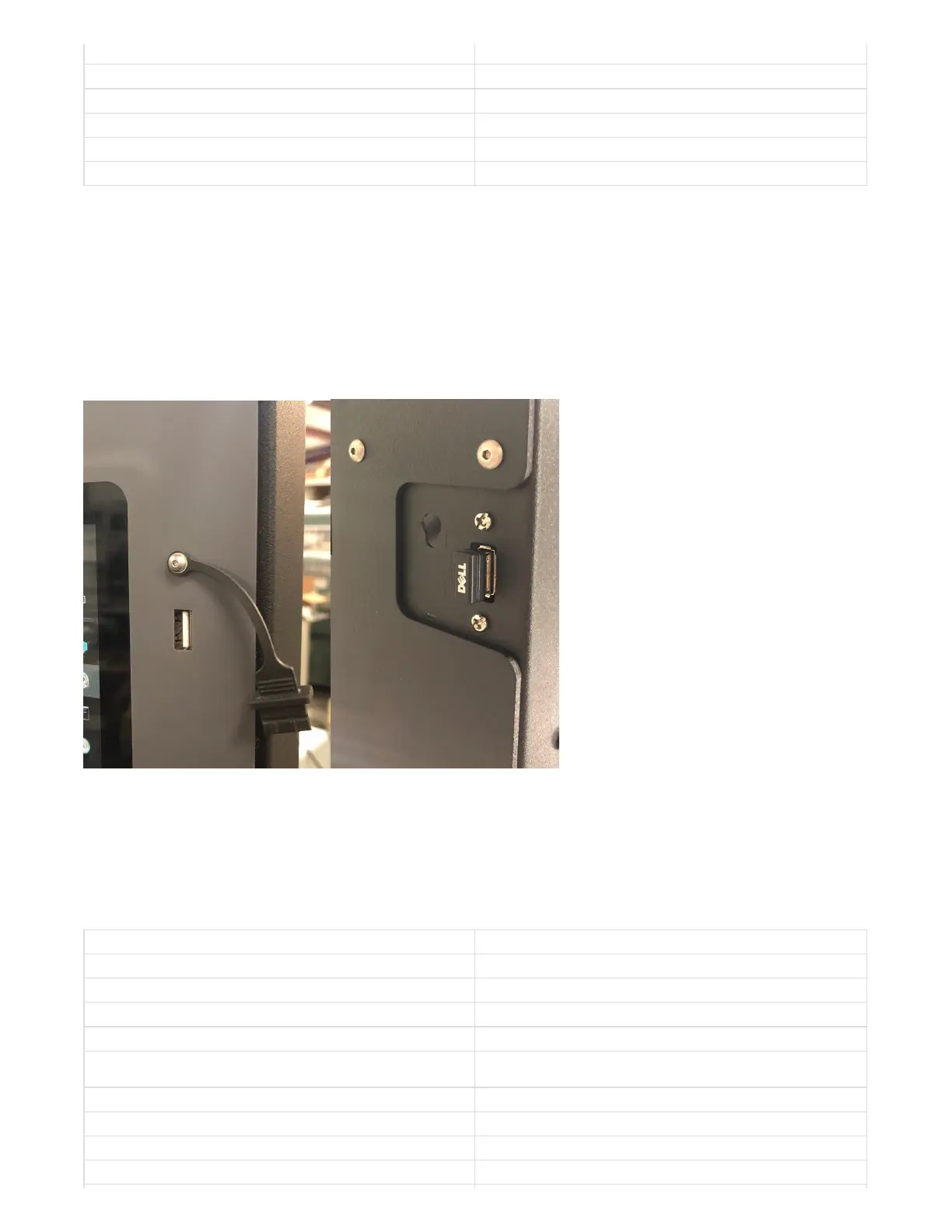

External USB on the face of the control for loading files with a Flash Drive or temporary use with any other auxiliary
USB device. One External port underneath the keyboard tray for wireless keyboard and mouse.
Item
Specification
Power Source
DC 15V- 30V 2.4 amps
Operating Temperature
0°C to 40°C [32°F to 104°F]
Operating System
Microsoft Windows IOT (Compare to Windows 10)
Software Package
MachMotion Control Software Installed, Powered By Mach4 Software
Core
Processor
Intel I3 (2.7GHz)
Hard Drive
64 GB Solid State, mSATA
RAM
8 GB
Wifi
External antenna
2.User Available USB
3. Specifications
1. Data Sheet
