CPE
LAN PORT
PC
PoE LAN
PoE Adapter
6
CHAPTER 1
CONNECTION AND POWER SUPPLY
1.1 Port Connection & power supply
Instruction of different port
• Please use a power supply of 12V DC
adapter or 24V POE adapter, WAN /
LAN port is the PoE Port.

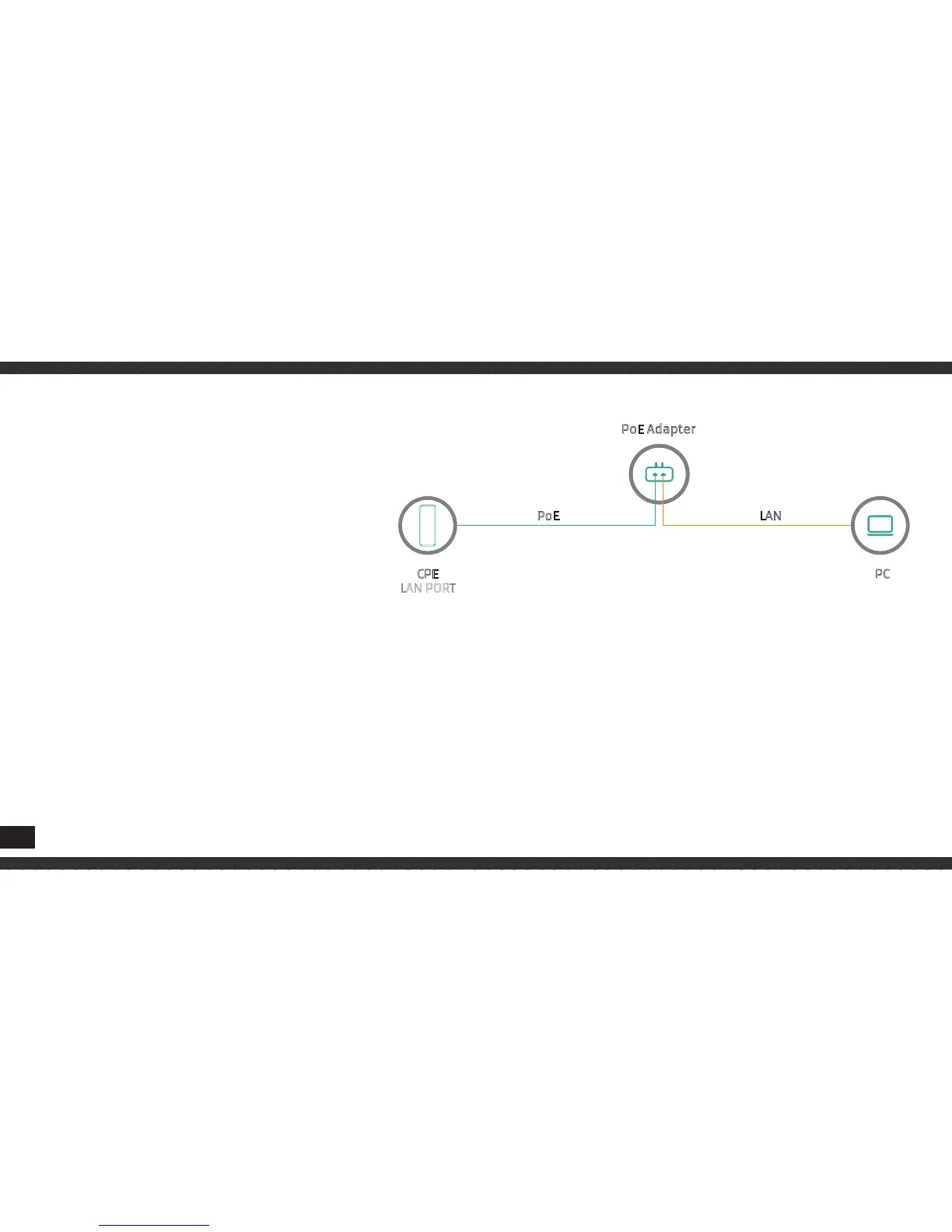

• The connection diagram of CPE and
PoE adapter
Pls make sure the CPE’s power supply
is normal and in correct connection
way, or the CPE will be damaged and
can’t reboot
