Macintosh Classic - Page 35

Take Apart Power/Sweep Board - 6
1 Using a Torx
screwdriver, remove
the screw that secures
the ground wire to the
upper corner of the CRT.

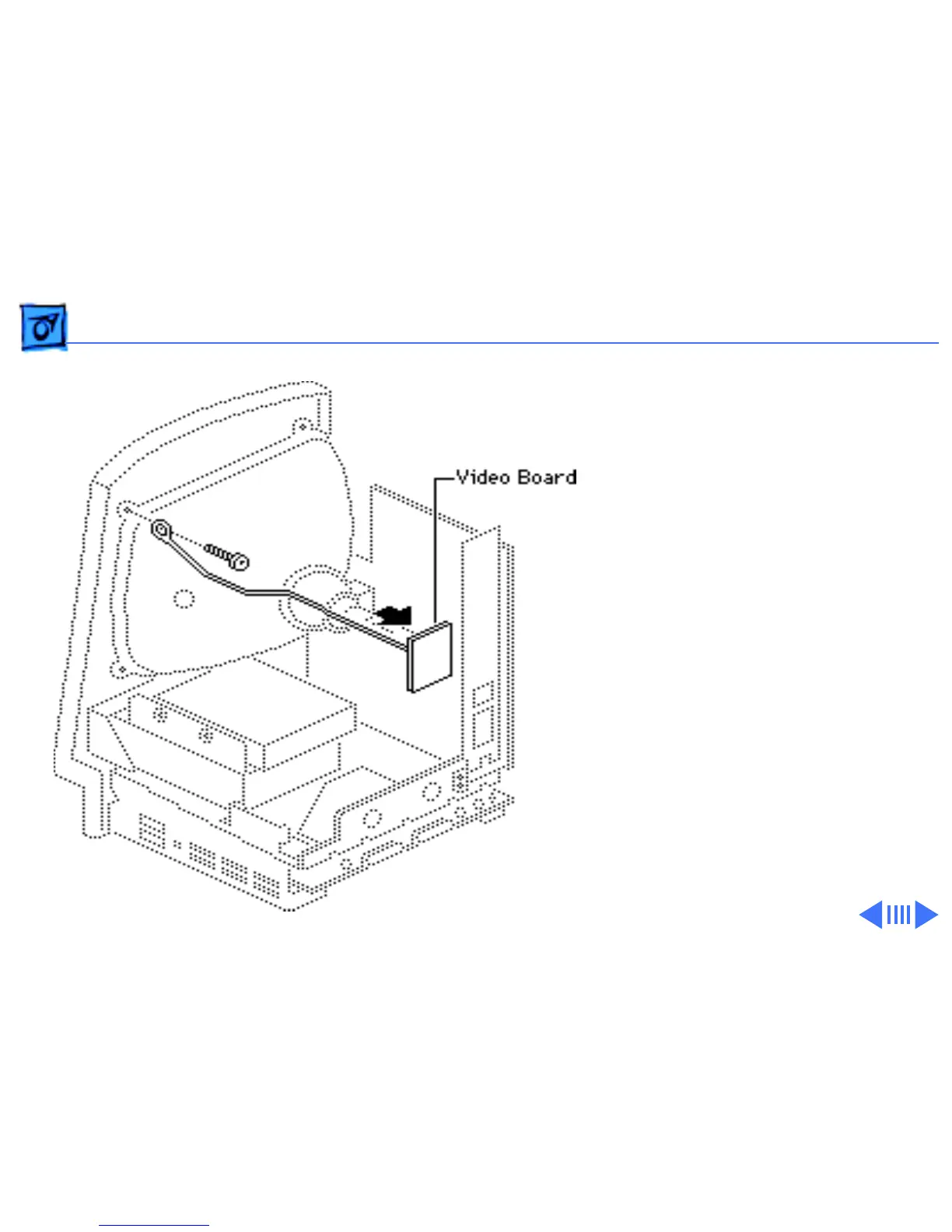

2 Carefully pull off the
video board from the
neck of the CRT.
Note: If sealant holds
the board in place, cut
the sealant with an art
knife.
